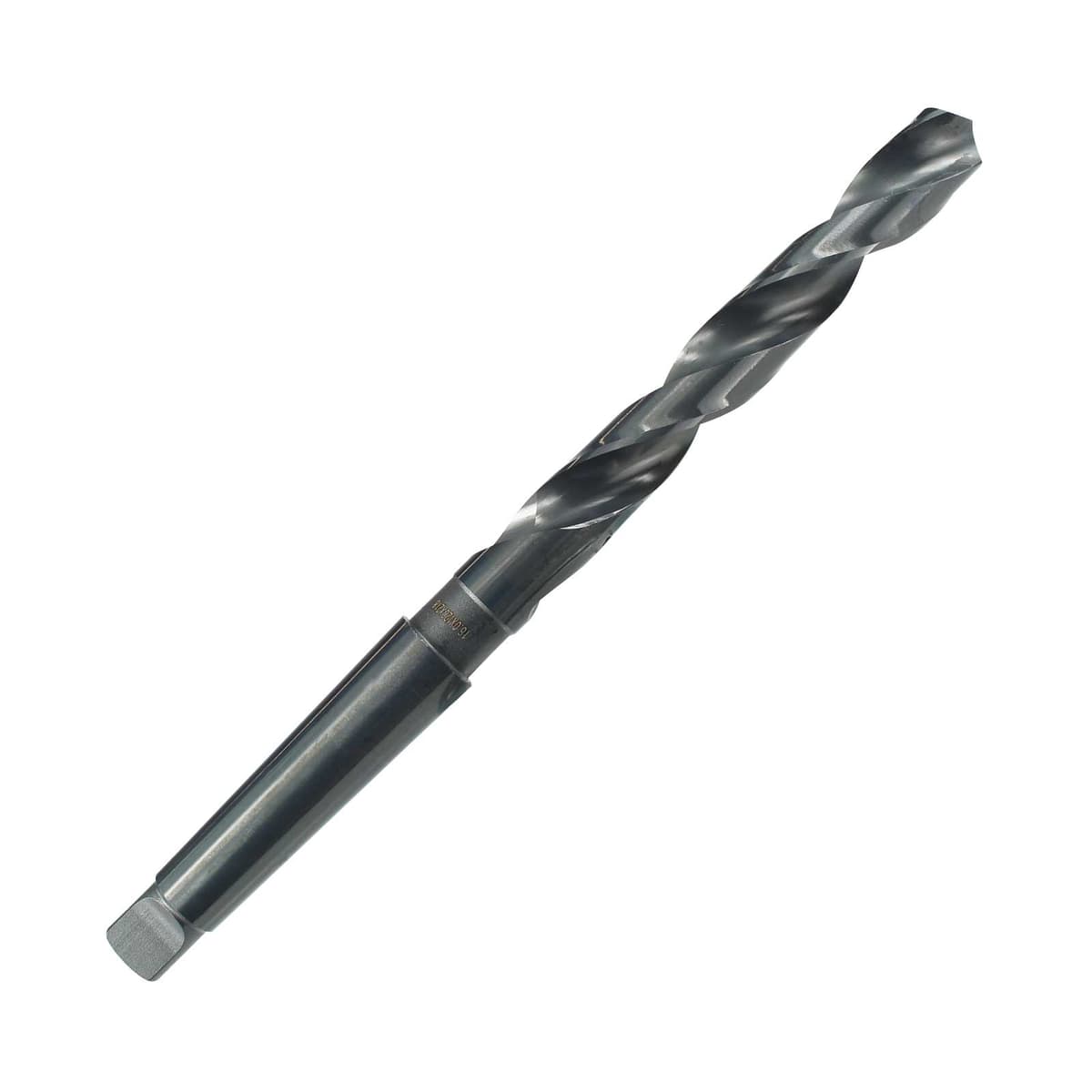

Image of steam tempered HSS morse taper shank drill.

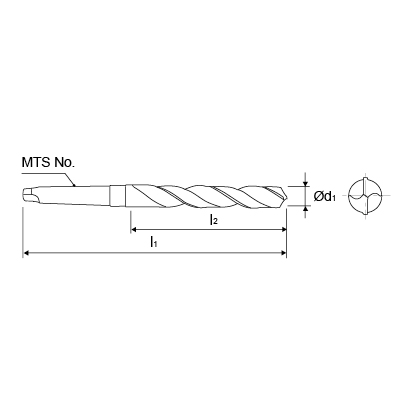

Technical drawing of steam tempered HSS morse taper shank drill.

Osborn 821601 Steam Tempered HSS Morse Taper Shank Drill

Series: 821601
Starting From:
£14.31 excl. VAT
£17.17 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

Drilling steels, stainless steels, cast irons, titanium, aluminium and plastic.

  • • Bright steam tempered (Black Oxide finish).
  • • Morser taper shank.
  • • Standard DIN 345
  • • Point angle 118 degree
  • • H8 tolerance
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Flute Length / L1Overall Length / L2MTS No.Price (Ex VAT)
821601130013mm101mm182mm1£14.31
821601132013.2mm101mm182mm1£22.80
821601132513.25mm108mm189mm1£25.08
821601135013.5mm108mm189mm1£15.37
821601137513.75mm108mm189mm1£17.77
821601138013.8mm108mm189mm1£23.92
821601140014mm108mm189mm1£16.15
821601142514.25mm114mm212mm2£18.85
821601145014.5mm114mm212mm2£17.41
821601147514.75mm114mm212mm2£19.37
821601150015mm114mm212mm2£17.60
821601152515.25mm120mm218mm2£20.30
821601155015.5mm120mm218mm2£20.30
821601157515.75mm120mm218mm2£21.16
821601160016mm120mm218mm2£19.29
821601162516.25mm125mm223mm2£22.82
821601165016.5mm125mm223mm2£22.82
821601167516.75mm125mm223mm2£23.98
821601170017mm125mm223mm2£22.01
821601172517.25mm130mm228mm2£25.12
821601175017.5mm130mm228mm2£24.67
821601177517.75mm130mm228mm2£26.56
821601180018mm130mm228mm2£23.55
821601182518.25mm135mm233mm2£27.19
821601185018.5mm135mm233mm2£26.23
821601187518.75mm135mm233mm2£28.73
821601190019mm135mm233mm2£25.66
821601192519.25mm140mm238mm2£30.30
821601195019.5mm140mm238mm2£30.30
821601197519.75mm140mm238mm2£31.39
821601200020mm140mm238mm2£28.04
821601202520.25mm145mm243mm2£32.23
821601205020.5mm145mm243mm2£32.23
821601207520.75mm145mm243mm2£48.65
821601210021mm145mm243mm2£30.73
821601212521.25mm150mm248mm2£33.39
821601215021.5mm150mm248mm2£33.39
821601217521.75mm150mm248mm2£34.84
821601220022mm150mm248mm2£34.84
821601222522.25mm150mm248mm2£36.42
821601225022.5mm155mm253mm2£35.18
821601227522.75mm155mm253mm2£55.39
821601230023mm155mm253mm2£37.64
821601232523.25mm155mm276mm3£40.49
821601235023.5mm155mm276mm3£40.49
821601237523.75mm160mm281mm3£44.76
821601240024mm160mm281mm3£39.39
821601242524.25mm160mm281mm3£64.10
821601245024.5mm160mm281mm3£47.20
821601247524.75mm160mm281mm3£47.20
821601250025mm160mm281mm3£47.20
821601252525.25mm165mm286mm3£57.00
821601255025.5mm165mm286mm3£57.00
821601257525.75mm165mm286mm3£57.00
821601260026mm165mm286mm3£57.00
821601262526.25mm165mm286mm3£76.75
821601265026.5mm165mm286mm3£56.67
821601267526.75mm170mm291mm3£79.38
821601270027mm170mm291mm3£58.56
821601272527.25mm170mm291mm3£62.17
821601275027.5mm170mm291mm3£62.17
821601277527.75mm170mm291mm3£79.63
821601280028mm170mm291mm3£59.94
821601282528.25mm175mm296mm3£70.31
821601285028.5mm175mm296mm3£70.31
821601287528.75mm175mm296mm3£93.92
821601290029mm175mm296mm3£70.31
821601292529.25mm175mm296mm3£97.10
821601295029.5mm175mm296mm3£72.19
821601297529.75mm175mm296mm3£72.19
821601300030mm175mm296mm3£69.79
821601302530.25mm180mm301mm3£105.12
821601305030.5mm180mm301mm3£74.52
821601307530.75mm180mm301mm3£110.01
821601310031mm180mm301mm3£74.52
821601312531.25mm180mm301mm3£115.09
821601315031.5mm180mm301mm3£78.27
821601320032mm185mm334mm4£81.53
821601330033mm185mm334mm4£90.07
821601335033.5mm185mm334mm4£95.68
821601340034mm190mm339mm4£95.40
821601345034.5mm190mm339mm4£99.33
821601350035mm190mm339mm4£96.34
821601355035.5mm190mm339mm4£102.42
821601360036mm195mm344mm4£101.41
821601365036.5mm195mm344mm4£107.26
821601370037mm195mm344mm4£110.59
821601375037.5mm195mm344mm4£113.38
821601380038mm200mm349mm4£112.15
821601385038.5mm200mm349mm4£121.98
821601390039mm200mm349mm4£122.89
821601395039.5mm200mm349mm4£127.35
821601400040mm200mm349mm4£136.03
821601405040.5mm205mm354mm4£143.26
821601410041mm205mm354mm4£143.26
821601415041.5mm205mm354mm4£149.24
821601420042mm205mm354mm4£144.06
821601425042.5mm205mm354mm4£163.72
821601430043mm210mm359mm4£169.72
821601435043.5mm210mm359mm4£176.34
821601440044mm210mm359mm4£176.34
821601445044.5mm210mm359mm4£186.06
821601450045mm210mm359mm4£179.55
821601455045.5mm215mm364mm4£195.20
821601460046mm215mm364mm4£188.49
821601465046.5mm215mm364mm4£205.69
821601470047mm215mm364mm4£205.69
821601475047.5mm215mm364mm4£225.87
821601480048mm220mm369mm4£225.87
821601485048.5mm220mm369mm4£237.17
821601490049mm220mm369mm4£229.04
821601495049.5mm220mm369mm4£247.76
821601500050mm220mm369mm4£239.18
821601505050.5mm225mm374mm4£267.91
821601510051mm225mm412mm5£267.91
821601520052mm225mm412mm5£283.26
821601530053mm225mm412mm5£320.79
821601540054mm230mm417mm5£330.05
821601550055mm230mm417mm5£349.56
821601560056mm230mm417mm5£362.98
821601570057mm235mm422mm5£379.89
821601580058mm235mm422mm5£412.14
821601590059mm235mm422mm5£432.83
821601600060mm235mm422mm5£438.09
