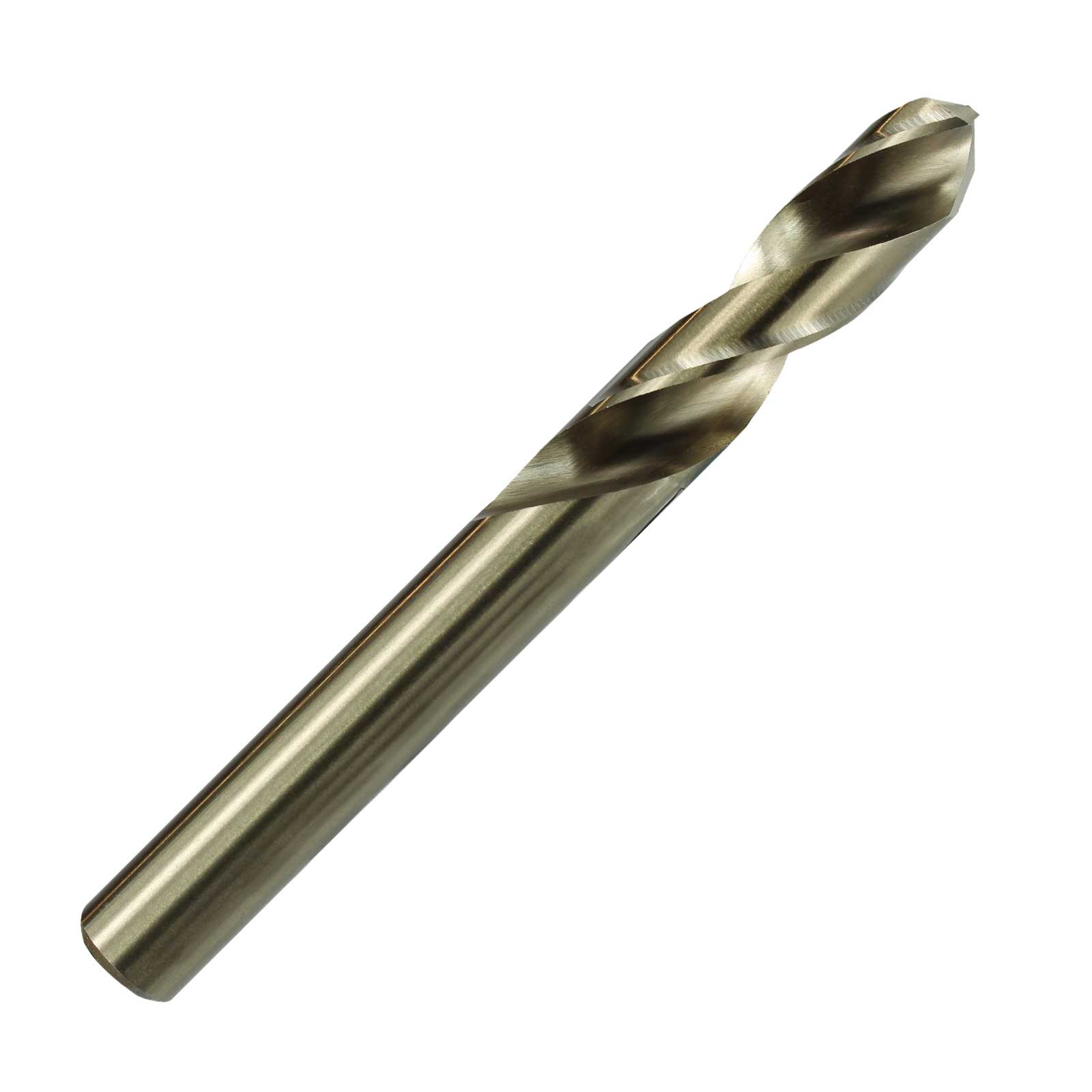

Image of HSS 8% cobalt stub drill.

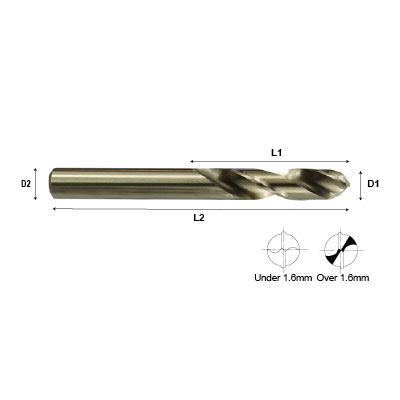

Technical drawing of HSS 8% cobalt stub drill.

OSBORN 820502 Series HSS 8% Cobalt Stub Drill DIN1897

Series: 820502...Clearance (Whilst Stocks Last)
Starting From:
£1.06 excl. VAT
£1.27 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

HSS 8% cobalt stub drill from OSBORN.

Features:

  • Suitable for drilling thin materials with portable drills
  • Special twist drills for automatic and turret lathes
  • Ideal for general drilling in steels and stainless steels

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Shank Diameter / D2Flute Length / L1Overall Length / L2Price (Ex VAT)
82050201101.1mm1.1mm7mm28mm£1.14
82050201201.2mm1.2mm8mm30mm£1.14
82050201251.25mm1.25mm8mm30mm£1.27
82050201301.3mm1.3mm8mm30mm£1.14
82050201401.4mm1.4mm9mm32mm£1.14
82050201601.6mm1.6mm10mm34mm£1.10
82050201701.7mm1.7mm10mm34mm£1.10
82050201751.75mm1.75mm11mm36mm£1.10
82050201901.9mm1.9mm11mm36mm
£1.10£0.59
82050202102.1mm2.1mm12mm38mm£1.06
82050202202.2mm2.2mm13mm40mm£1.06
82050202252.25mm2.25mm13mm40mm£1.26
82050202402.4mm2.4mm14mm43mm
£1.06£0.57
82050202752.75mm2.75mm16mm46mm
£1.38£0.76
82050202902.9mm2.9mm16mm46mm£1.13
82050203103.1mm3.1mm18mm49mm
£1.25£0.53
82050203203.2mm3.2mm18mm49mm£1.25
82050203253.25mm3.25mm18mm49mm£1.57
82050203403.4mm3.4mm20mm52mm£1.25
82050203603.6mm3.6mm20mm52mm£1.36
82050203903.9mm3.9mm22mm55mm
£1.36£0.61
82050204104.1mm4.1mm22mm55mm
£1.60£0.67
82050204254.25mm4.25mm22mm55mm£1.59
82050204654.65mm4.65mm24mm58mm£1.67
82050204704.7mm4.7mm24mm58mm£1.67
82050204804.8mm4.8mm26mm62mm£1.67
82050205255.25mm5.25mm26mm62mm£1.95
82050205305.3mm5.3mm26mm62mm£2.34
82050205405.4mm5.4mm28mm66mm£2.34
82050205505.5mm5.5mm28mm66mm£2.59
82050205705.7mm5.7mm28mm66mm£2.45
82050205755.75mm5.75mm28mm66mm£2.39
82050205805.8mm5.8mm28mm66mm
£2.45£1.15
82050205905.9mm5.9mm28mm66mm£2.45
82050206106.1mm6.1mm31mm70mm
£2.76£1.63
82050206256.25mm6.25mm31mm70mm£2.37
82050206406.4mm6.4mm31mm70mm
£2.95£1.62
82050206706.7mm6.7mm31mm70mm£2.95
82050206906.9mm6.9mm34mm74mm£3.08
82050207307.3mm7.3mm34mm74mm
£3.44£2.17
82050207407.4mm7.4mm34mm74mm£2.98
82050207457.45mm7.45mm34mm74mm£2.98
82050207607.6mm7.6mm37mm79mm
£3.25£1.58
82050207707.7mm7.7mm37mm79mm£4.08
82050207907.9mm7.9mm37mm79mm
£4.08£2.35
82050208108.1mm8.1mm37mm79mm£3.57
82050208258.25mm8.25mm37mm79mm£3.32
82050208608.6mm8.6mm40mm84mm£5.23
82050208708.7mm8.7mm40mm84mm£5.23
82050208758.75mm8.75mm40mm84mm£4.13
82050209109.1mm9.1mm40mm84mm£5.60
82050209209.2mm9.2mm40mm84mm
£5.60£2.54
82050209259.25mm9.25mm40mm84mm£5.61
82050209359.35mm9.35mm40mm84mm£5.61
82050209609.6mm9.6mm43mm89mm£6.18
82050209759.75mm9.75mm43mm89mm£6.22
82050209809.8mm9.8mm43mm89mm£6.18
820502102510.25mm10.25mm43mm89mm£7.80
820502105010.5mm10.5mm43mm89mm
£7.11£3.79
820502107510.75mm10.75mm47mm95mm£8.72
820502110011mm11mm47mm95mm£7.96
820502112511.25mm11.25mm47mm95mm
£9.63£4.52
820502122512.25mm12.25mm51mm102mm£12.01
820502127512.75mm12.75mm51mm102mm£15.15
820502132513.25mm13.25mm54mm107mm£15.68
820502135013.5mm13.5mm54mm107mm£14.25
820502137513.75mm13.75mm54mm107mm£15.78
820502138013.8mm13.8mm54mm107mm£14.33
820502142514.25mm14.25mm56mm111mm£16.40
820502145014.5mm14.5mm56mm111mm£14.94
820502147514.75mm14.75mm56mm111mm£16.64
820502150015mm15mm56mm111mm£15.11
820502152515.25mm15.25mm58mm115mm£18.88
820502155015.5mm15.5mm58mm115mm£17.19
820502157515.75mm15.75mm58mm115mm£17.60
820502160016mm16mm58mm115mm£17.60
820502162516.25mm16.25mm60mm119mm£21.39
820502165016.5mm16.5mm60mm119mm£19.42
820502167516.75mm16.75mm60mm119mm£21.39
820502170017mm17mm60mm119mm£19.42
820502172517.25mm17.25mm62mm123mm£24.16
820502175017.5mm17.5mm62mm123mm£21.95
820502177517.75mm17.75mm62mm123mm£24.16
820502180018mm18mm62mm123mm£21.95
820502182518.25mm18.25mm64mm127mm£28.07
820502185018.5mm18.5mm64mm127mm£25.50
820502187518.75mm18.75mm64mm127mm£28.07
820502190019mm19mm64mm127mm
£25.50£12.31
820502192519.25mm19.25mm66mm131mm£28.17
820502195019.5mm19.5mm66mm131mm£27.76
820502197519.75mm19.75mm66mm131mm£33.15
820502200020mm20mm66mm131mm£30.16
820502205020.5mm20.5mm68mm136mm£35.53
820502210021mm21mm68mm136mm£35.53
820502215021.5mm21.5mm70mm141mm£37.42
820502220022mm22mm70mm141mm£38.09
820502225022.5mm22.5mm72mm146mm£45.96
820502230023mm23mm72mm146mm£45.96
820502235023.5mm23.5mm72mm146mm£51.71
820502240024mm24mm75mm151mm£51.71
820502245024.5mm24.5mm75mm151mm£55.06
820502250025mm25mm75mm151mm£55.06
820502260026mm26mm78mm156mm£58.34
820502270027mm27mm81mm162mm£68.75
820502280028mm28mm81mm162mm£68.75
820502290029mm29mm84mm168mm£75.04
820502300030mm30mm84mm168mm£75.04
820502310031mm31mm87mm174mm£100.06
82050202502.5mm2.5mm14mm43mm£1.06
8205020650----£2.95
82050207207.2mm7.2mm34mm74mm£2.98
82050209409.4mm9.4mm40mm84mm
£5.60£3.25
820502118011.8mm11.8mm47mm95mm£9.14
8205020430----
£1.64£0.73
8205020450----£1.59
82050206756.75mm6.75mm34mm74mm
£2.47£1.18
8205020780----
£4.08£1.79
82050209309.3mm9.3mm40mm84mm
£5.60£2.54
82050209509.5mm9.5mm40mm84mm
£5.61£3.58
82050209909.9mm9.9mm43mm89mm
£6.18£2.47
820502125012.5mm12.5mm51mm102mm
£10.89£6.12
820502130013mm13mm51mm102mm£13.79
82050201001mm1mm6mm26mm£1.14
8205020200----£1.09
8205020380----
£1.36£0.63
8205020150----
£1.14£0.61
8205020260----£1.13
8205020270----
£1.13£0.45
82050203703.7mm3.7mm20mm52mm
£1.36£0.78
82050204604.6mm4.6mm24mm58mm£1.67
8205020510----£1.94
8205020555----
£2.15£0.92
82050206006mm6mm28mm66mm£2.45
8205020620----
£2.95£1.28
82050206306.3mm6.3mm31mm70mm
£2.76£1.34
8205020900----£5.23
820502120012mm12mm51mm102mm£9.14
8205020520----£1.94
82050205605.6mm5.6mm28mm66mm
£2.45£1.15
8205020750----£3.73
8205020800----£4.15
8205020880----
£5.23£2.36
82050209709.7mm9.7mm43mm89mm
£6.18£3.20
820502115011.5mm11.5mm47mm95mm£8.82
8205020350----
£1.25£0.69
8205020400----£1.36
8205020420----£1.60
82050204404.4mm4.4mm24mm58mm
£1.64£0.73
8205020500----£1.67
82050206606.6mm6.6mm31mm70mm
£2.76£1.38
8205020700----£3.30
82050207107.1mm7.1mm34mm74mm£2.98
82050207257.25mm7.25mm34mm74mm
£3.63£1.47
8205020775----
£3.25£1.32
8205020820----£3.57
8205020830----
£3.60£2.24
8205020840----
£3.60£1.69
8205020890----
£5.23£2.08
820502100010mm10mm43mm89mm£6.18
820502102010.2mm10.2mm43mm89mm£7.11
820502117511.75mm11.75mm47mm95mm
£10.01£4.26
820502140014mm14mm54mm107mm£14.86
82050201801.8mm1.8mm11mm36mm
£1.10£0.56
8205020230----
£1.06£0.43
82050202802.8mm2.8mm16mm46mm£1.13
82050203003mm3mm16mm46mm£1.13
82050203303.3mm3.3mm18mm49mm£1.25
82050204904.9mm4.9mm26mm62mm
£1.67£0.72
8205020680----£3.08
8205020850----£3.85
