Image of product.

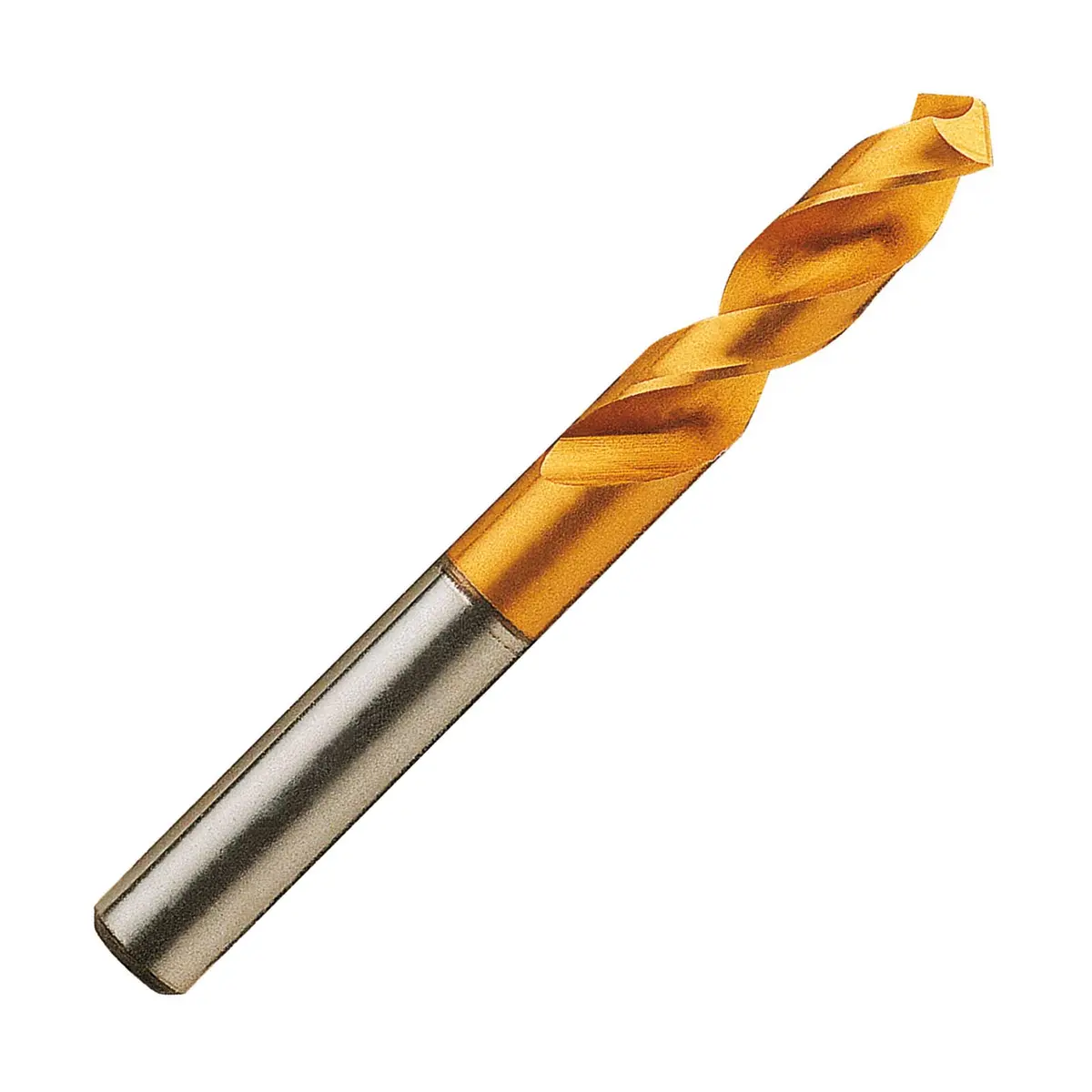

Image of HPD-SUS HSS vanadium tin coated 3xD stub drill.
Technical drawing of HPH-SUS HSS vanadium tin coated 3xD stub drill.

Osborn HPD-SUS HSS Vanadium TiN Coated (Stainless)Stub Drill

Series: 820434
Starting From:
£6.43 excl. VAT
£7.72 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
  • High helix-sharp cutting edges to avoid built-up and to be suitable for high performance drilling.
  • Wide flute and stub length-increasing chip removal and reducing vibration and deflection.
  • High vanadium HSS-EX material with superior TiN coating - higher speed and feed, longer service life.
  • High quality-good surface finishes, high productivity

Designed for drilling in stainless steels, mild steels, aluminium, aluminium alloy, aluminium die cast, copper alloy etc.

...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Shank Diameter / D2Flute Length / L1Overall Length / L2Price (Ex VAT)
82043402002mm2mm12mm44mm£6.97
82043402102.1mm2.1mm12mm44mm£8.08
82043402202.2mm2.2mm13mm45mm£8.08
82043402302.3mm2.3mm13mm45mm£8.08
82043402402.4mm2.4mm14mm46mm£8.08
82043402502.5mm2.5mm14mm46mm£6.97
82043402602.6mm2.6mm14mm46mm£7.71
82043402702.7mm2.7mm16mm48mm£7.71
82043402802.8mm2.8mm16mm48mm£7.71
82043402902.9mm2.9mm16mm48mm£7.71
82043403003mm3mm16mm48mm£6.43
82043403103.1mm3.1mm18mm50mm£8.08
82043403203.2mm3.2mm18mm50mm£8.08
82043403303.3mm3.3mm18mm50mm£8.08
82043403403.4mm3.4mm20mm52mm£8.08
82043403503.5mm3.5mm20mm52mm£8.08
82043403603.6mm3.6mm20mm52mm£9.69
82043403703.7mm3.7mm20mm52mm£9.69
82043403803.8mm3.8mm22mm54mm£8.75
82043403903.9mm3.9mm22mm54mm£9.69
82043404004mm4mm22mm54mm£8.75
82043404104.1mm4.1mm22mm66mm£11.54
82043404204.2mm4.2mm22mm66mm
£10.48£4.04
82043404304.3mm4.3mm24mm68mm£11.54
82043404404.4mm4.4mm24mm68mm£11.54
82043404504.5mm4.5mm24mm68mm£13.69
82043404604.6mm4.6mm24mm68mm£13.56
82043404704.7mm4.7mm24mm68mm£13.56
82043404804.8mm4.8mm26mm70mm£13.56
82043404904.9mm4.9mm26mm70mm£13.56
82043405005mm5mm26mm70mm£12.16
82043405105.1mm5.1mm26mm70mm£12.16
82043405205.2mm5.2mm26mm70mm£14.12
82043405305.3mm5.3mm26mm70mm£15.73
82043405405.4mm5.4mm28mm72mm£15.73
82043405505.5mm5.5mm28mm72mm£14.12
82043405605.6mm5.6mm28mm72mm£18.07
82043405705.7mm5.7mm28mm72mm£16.71
82043405805.8mm5.8mm28mm72mm£18.07
82043405905.9mm5.9mm28mm72mm£18.07
82043406006mm6mm28mm72mm£16.14
82043406106.1mm6.1mm31mm75mm£18.15
82043406206.2mm6.2mm31mm75mm£18.15
82043406306.3mm6.3mm31mm75mm£18.15
82043406406.4mm6.4mm31mm75mm£18.15
82043406506.5mm6.5mm31mm75mm£16.31
82043406606.6mm6.6mm31mm75mm£18.29
82043406706.7mm6.7mm31mm75mm£18.29
82043406806.8mm6.8mm34mm78mm£18.29
82043406906.9mm6.9mm34mm78mm£18.29
82043407007mm7mm34mm78mm£17.29
82043407107.1mm7.1mm34mm78mm£18.73
82043407207.2mm7.2mm34mm78mm£18.73
82043407307.3mm7.3mm34mm78mm£18.73
82043407407.4mm7.4mm34mm78mm£18.73
82043407507.5mm7.5mm34mm78mm£18.73
82043407607.6mm7.6mm37mm81mm£20.95
82043407707.7mm7.7mm37mm81mm£20.95
82043407807.8mm7.8mm37mm81mm£20.95
82043407907.9mm7.9mm37mm81mm£20.95
82043408008mm8mm37mm81mm£19.78
82043408108.1mm8.1mm37mm87mm£21.54
82043408208.2mm8.2mm37mm87mm£21.54
82043408308.3mm8.3mm37mm87mm£21.54
82043408408.4mm8.4mm37mm87mm£21.54
82043408508.5mm8.5mm37mm87mm£19.39
82043408608.6mm8.6mm40mm90mm£19.39
82043408708.7mm8.7mm40mm90mm£24.11
82043408808.8mm8.8mm40mm90mm£24.11
82043408908.9mm8.9mm40mm90mm£24.11
82043409009mm9mm40mm90mm
£20.15£8.32
82043409109.1mm9.1mm40mm90mm£24.76
82043409209.2mm9.2mm40mm90mm£26.79
82043409309.3mm9.3mm40mm90mm£26.79
82043409409.4mm9.4mm40mm90mm£26.79
82043409509.5mm9.5mm40mm90mm£24.63
82043409609.6mm9.6mm43mm93mm£30.27
82043409709.7mm9.7mm43mm93mm£27.98
82043409809.8mm9.8mm43mm93mm£30.27
82043409909.9mm9.9mm43mm93mm£30.27
820434100010mm10mm43mm93mm£25.55
820434101010.1mm10.1mm43mm100mm£31.18
820434102010.2mm10.2mm43mm100mm£31.18
820434103010.3mm10.3mm43mm10mm£31.18
820434104010.4mm10.4mm43mm100mm£31.18
820434105010.5mm10.5mm43mm100mm£28.62
820434106010.6mm10.6mm43mm100mm£34.15
820434107010.7mm10.7mm47mm104mm£34.15
820434108010.8mm10.8mm47mm104mm£34.15
820434109010.9mm10.9mm47mm104mm£34.15
820434110011mm11mm47mm104mm£29.55
820434111011.1mm11.1mm47mm104mm£38.23
820434112011.2mm11.2mm47mm104mm£38.23
820434113011.3mm11.3mm47mm104mm£38.23
820434114011.4mm11.4mm47mm104mm£38.23
820434115011.5mm11.5mm47mm104mm£35.03
820434116011.6mm11.6mm47mm104mm£41.46
820434117011.7mm11.7mm47mm104mm£41.46
820434118011.8mm11.8mm47mm104mm£41.46
820434119011.9mm11.9mm51mm108mm£41.46
820434120012mm12mm51mm108mm£35.49
820434121012.1mm12.1mm51mm108mm£45.02
820434122012.2mm12.2mm51mm108mm£45.02
820434123012.3mm12.3mm51mm108mm£45.02
820434124012.4mm12.4mm51mm108mm£45.02
820434125012.5mm12.5mm51mm108mm£41.58
820434126012.6mm12.6mm51mm108mm£47.79
820434127012.7mm12.7mm51mm108mm£47.79
820434128012.8mm12.8mm51mm108mm£47.79
820434129012.9mm12.9mm51mm108mm£47.79
820434130013mm13mm51mm108mm£42.55
