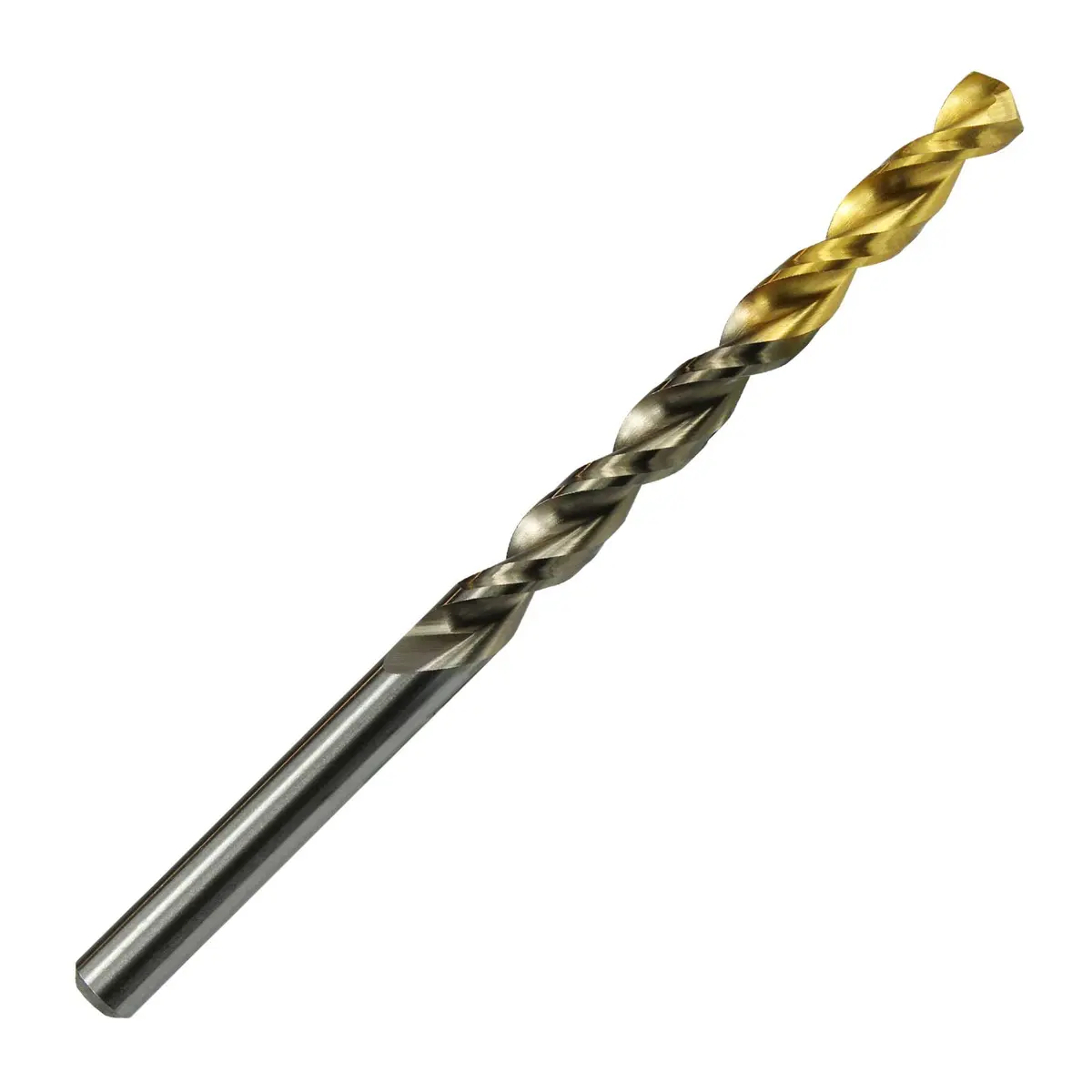

Image of goldex worm pattern HSS-E jobber drill.
Technical drawing of goldex worm pattern HSS-E jobber drill.

Osborn 811505 Goldex HSS-E Jobber Drill Worm Pattern

Series: 811505...Clearance (Whilst Stocks Last)
Starting From:
£1.15 excl. VAT
£1.38 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

Goldex HSS-E 5xD Worm Pattern Jobber Drill

Features:

  • Bright finish body and worm pattern for maximum chip clearance
  • Self centring split point
  • TiN coated on working area for longer tool life
  • Designed for drilling deep holes in steel, stainless steel, cast iron, titanium and aluminium.

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Shank Diameter / D2Flute Length / L1Overall Length / L2Price (Ex VAT)
81150502002mm2mm24mm49mm£1.15
81150502102.1mm2.1mm24mm49mm£1.28
81150502202.2mm2.2mm27mm53mm
£1.28£0.50
81150502302.3mm2.3mm27mm53mm£1.28
81150502402.4mm2.4mm30mm57mm£1.28
81150502502.5mm2.5mm30mm57mm£1.28
81150502602.6mm2.6mm30mm57mm£1.46
81150502702.7mm2.7mm33mm61mm£1.46
81150502802.8mm2.8mm33mm61mm£1.46
81150502902.9mm2.9mm33mm61mm£1.46
81150503003mm3mm33mm61mm£1.46
81150503103.1mm3.1mm36mm65mm
£1.66£0.71
81150503203.2mm3.2mm36mm65mm
£1.66£0.67
81150503303.3mm3.3mm36mm65mm£1.66
81150503403.4mm3.4mm39mm70mm£1.66
81150503503.5mm3.5mm39mm70mm£1.66
81150503603.6mm3.6mm39mm70mm£1.90
81150503703.7mm3.7mm39mm70mm£1.90
81150503803.8mm3.8mm43mm75mm£1.90
81150503903.9mm3.9mm43mm75mm£1.90
81150504004mm4mm43mm75mm£1.90
81150504104.1mm4.1mm43mm75mm£2.15
81150504204.2mm4.2mm43mm75mm£2.15
81150504304.3mm4.3mm47mm80mm£2.15
81150504404.4mm4.4mm47mm80mm£2.15
81150504504.5mm4.5mm47mm80mm£2.15
81150504604.6mm4.6mm47mm80mm£2.15
81150504704.7mm4.7mm47mm80mm£2.15
81150504804.8mm4.8mm52mm86mm£2.15
81150504904.9mm4.9mm52mm86mm£2.15
81150505005mm5mm52mm86mm£2.15
81150505105.1mm5.1mm52mm86mm£2.79
81150505205.2mm5.2mm52mm86mm£2.79
81150505305.3mm5.3mm52mm86mm£2.79
81150505405.4mm5.4mm57mm93mm£2.79
81150505505.5mm5.5mm57mm93mm£2.79
81150505605.6mm5.6mm57mm93mm£2.93
81150505705.7mm5.7mm57mm93mm£2.93
81150505805.8mm5.8mm57mm93mm£2.93
81150505905.9mm5.9mm57mm93mm£2.93
81150506006mm6mm57mm93mm£2.93
81150506106.1mm6.1mm63mm101mm£3.31
81150506206.2mm6.2mm63mm101mm£3.31
81150506306.3mm6.3mm63mm101mm
£3.31£1.37
81150506406.4mm6.4mm63mm101mm£3.31
81150506506.5mm6.5mm63mm101mm£3.31
81150506606.6mm6.6mm63mm101mm£3.68
81150506706.7mm6.7mm63mm101mm£3.68
81150506806.8mm6.8mm69mm109mm£3.68
81150506906.9mm6.9mm69mm109mm£3.68
81150507007mm7mm69mm109mm£3.68
81150507107.1mm7.1mm69mm109mm£4.44
81150507207.2mm7.2mm69mm109mm
£4.44£2.12
81150507307.3mm7.3mm69mm109mm
£4.44£1.78
81150507407.4mm7.4mm69mm109mm
£4.44£1.78
81150507507.5mm7.5mm69mm109mm
£4.44£1.83
81150507607.6mm7.6mm75mm117mm£4.76
81150507707.7mm7.7mm75mm117mm£4.76
81150507807.8mm7.8mm75mm117mm£4.76
81150507907.9mm7.9mm75mm117mm£4.76
81150508008mm8mm75mm117mm£4.76
81150508108.1mm8.1mm75mm117mm£5.34
81150508208.2mm8.2mm75mm117mm
£5.34£2.34
81150508308.3mm8.3mm75mm117mm£5.34
81150508408.4mm8.4mm75mm117mm£5.34
81150508508.5mm8.5mm75mm117mm£5.34
81150508608.6mm8.6mm81mm125mm£6.03
81150508708.7mm8.7mm81mm125mm£6.03
81150508808.8mm8.8mm81mm125mm
£6.03£2.89
81150508908.9mm8.9mm81mm125mm£6.03
81150509009mm9mm81mm125mm£6.03
81150509109.1mm9.1mm81mm125mm£7.61
81150509209.2mm9.2mm81mm125mm£7.61
81150509309.3mm9.3mm81mm125mm£7.61
81150509409.4mm9.4mm81mm125mm£7.61
81150509509.5mm9.5mm81mm125mm£7.61
81150509609.6mm9.6mm87mm133mm£7.61
81150509709.7mm9.7mm87mm133mm£7.61
81150509809.8mm9.8mm87mm133mm£7.61
81150509909.9mm9.9mm87mm133mm£7.61
811505100010mm10mm87mm133mm£7.61
811505101010.1mm10.1mm87mm133mm£8.78
811505102010.2mm10.2mm87mm133mm£8.78
811505103010.3mm10.3mm87mm133mm£8.78
811505104010.4mm10.4mm87mm133mm£8.78
811505105010.5mm10.5mm87mm133mm£8.78
811505106010.6mm10.6mm87mm133mm£8.97
811505107010.7mm10.7mm94mm142mm£8.97
811505108010.8mm10.8mm94mm142mm£8.97
811505109010.9mm10.9mm94mm142mm£8.97
811505110011mm11mm94mm142mm
£8.97£4.29
811505111011.1mm11.1mm94mm142mm£10.95
811505112011.2mm11.2mm94mm142mm£10.95
811505113011.3mm11.3mm94mm142mm£10.95
811505114011.4mm11.4mm94mm142mm£10.95
811505115011.5mm11.5mm94mm142mm£10.95
811505116011.6mm11.6mm94mm142mm£10.95
811505117011.7mm11.7mm94mm142mm£10.95
811505118011.8mm11.8mm94mm142mm
£10.95£4.67
811505119011.9mm11.9mm101mm151mm£10.95
811505120012mm12mm101mm151mm£10.95
811505121012.1mm12.1mm101mm151mm£12.16
811505122012.2mm12.2mm101mm151mm£12.16
811505123012.3mm12.3mm101mm151mm£12.16
811505124012.4mm12.4mm101mm151mm£12.16
811505125012.5mm12.5mm101mm151mm£12.43
811505126012.6mm12.6mm101mm151mm£12.43
811505127012.7mm12.7mm101mm151mm£12.43
811505128012.8mm12.8mm101mm151mm£12.43
811505129012.9mm12.9mm101mm151mm£12.43
811505130013mm13mm101mm151mm£12.43
