Image of product.

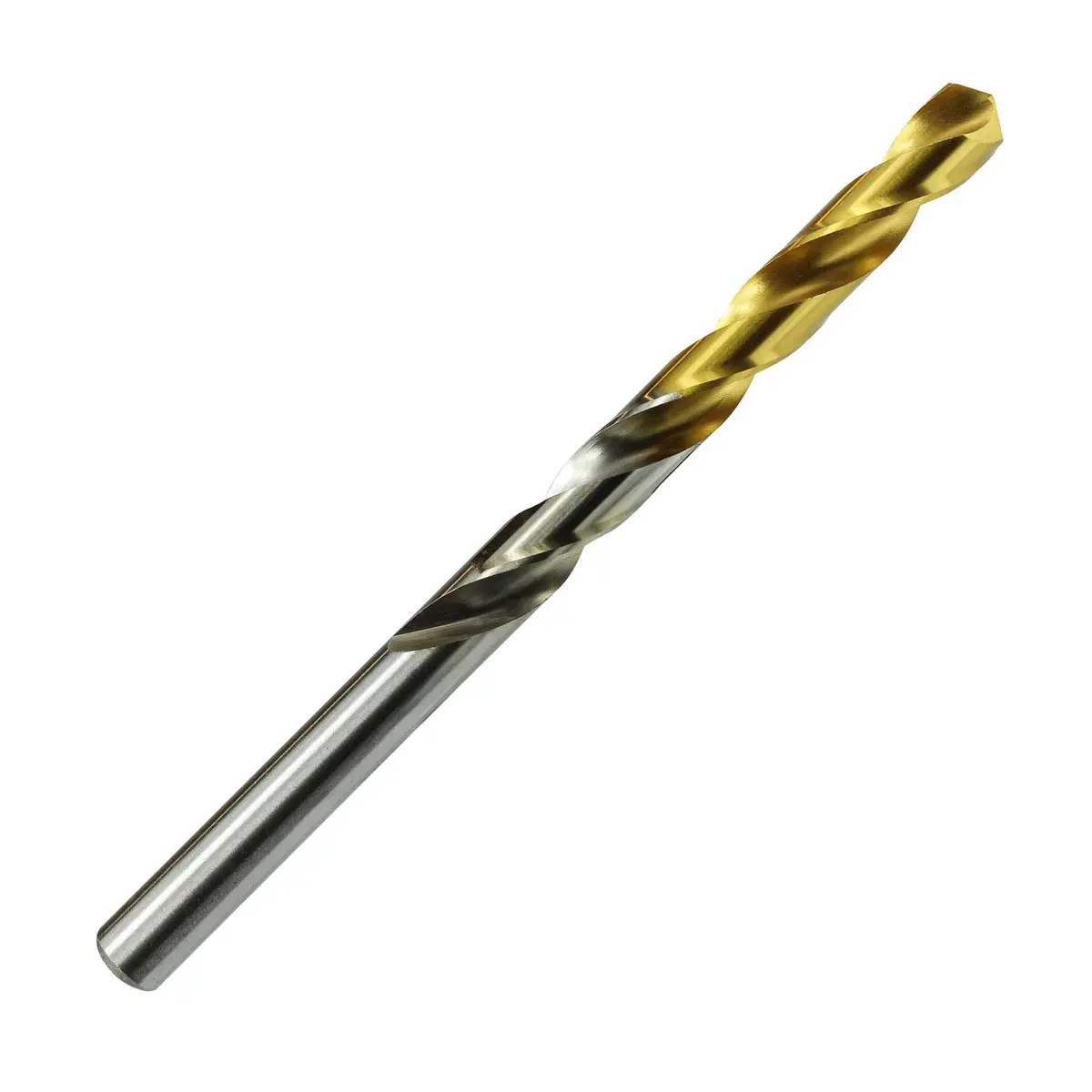

Osborn 810504 HSS TiN Coated Goldex Jobber Drill – DIN338

Series: 810504...Clearance (Whilst Stocks Last)
Starting From:
£0.54 excl. VAT
£0.65 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

Drilling in steel, cast steel - alloyed and non-alloyed, stainless steel, titanium and aluminium.

Features:

  • Bright finish body for maximum chip clearance.
  • Self centring split point above 1.6mm.
  • TiN coated on working area for longer tool life
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Shank Diameter / D2Flute Length / L1Overall Length / L2Price (Ex VAT)
81050401001mm1mm12mm34mm£0.54
81050401101.1mm1.1mm14mm36mm£0.62
81050401201.2mm1.2mm16mm38mm£0.62
81050401301.3mm1.3mm16mm38mm
£0.62£0.37
81050401401.4mm1.4mm18mm40mm£0.62
81050401501.5mm1.5mm18mm40mm
£0.62£0.33
81050401601.6mm1.6mm20mm43mm£0.78
81050401701.7mm1.7mm20mm43mm£0.78
81050401801.8mm1.8mm22mm46mm£0.78
81050401901.9mm1.9mm22mm46mm£0.78
81050402002mm2mm24mm49mm
£0.78£0.42
81050402102.1mm2.1mm24mm49mm£0.78
81050402202.2mm2.2mm27mm53mm£0.71
81050402302.3mm2.3mm27mm53mm£0.71
81050402402.4mm2.4mm30mm57mm£0.71
81050402502.5mm2.5mm30mm57mm
£0.85£0.46
81050402602.6mm2.6mm30mm57mm£0.78
81050402702.7mm2.7mm33mm61mm
£0.78£0.46
81050402802.8mm2.8mm33mm61mm
£0.78£0.46
81050402902.9mm2.9mm33mm61mm£0.78
81050403003mm3mm33mm61mm£0.85
81050403103.1mm3.1mm36mm65mm£0.83
81050403203.2mm3.2mm36mm65mm£0.83
81050403303.3mm3.3mm36mm65mm
£1.08£0.50
81050403403.4mm3.4mm39mm70mm£0.83
81050403503.5mm3.5mm39mm70mm
£0.83£0.79
81050403603.6mm3.6mm39mm70mm£0.88
81050403703.7mm3.7mm39mm70mm£0.88
81050403803.8mm3.8mm43mm75mm£0.88
81050403903.9mm3.9mm43mm75mm£0.88
81050404004mm4mm43mm75mm£1.02
81050404104.1mm4.1mm43mm75mm£1.07
81050404204.2mm4.2mm43mm75mm
£1.40£0.71
81050404304.3mm4.3mm47mm80mm
£1.07£0.62
81050404404.4mm4.4mm47mm80mm£1.07
81050404504.5mm4.5mm47mm80mm£1.07
81050404604.6mm4.6mm47mm80mm£1.21
81050404704.7mm4.7mm47mm80mm£1.21
81050404804.8mm4.8mm52mm86mm£1.21
81050404904.9mm4.9mm52mm86mm£1.21
81050405005mm5mm52mm86mm£1.41
81050405105.1mm5.1mm52mm86mm
£1.28£0.65
81050405205.2mm5.2mm52mm86mm£1.47
81050405305.3mm5.3mm52mm86mm£1.55
81050405405.4mm5.4mm57mm93mm£1.55
81050405505.5mm5.5mm57mm93mm£1.69
81050405605.6mm5.6mm57mm93mm
£1.55£0.82
81050405705.7mm5.7mm57mm93mm£1.55
81050405805.8mm5.8mm57mm93mm£1.55
81050405905.9mm5.9mm57mm93mm£1.55
81050406006mm6mm57mm93mm
£1.74£2.13
81050406106.1mm6.1mm63mm101mm£1.74
81050406206.2mm6.2mm63mm101mm£1.74
81050406306.3mm6.3mm63mm101mm£1.82
81050406406.4mm6.4mm63mm101mm
£1.82£0.96
81050406506.5mm6.5mm63mm101mm£2.00
81050406606.6mm6.6mm63mm101mm£1.84
81050406706.7mm6.7mm63mm101mm£1.81
81050406806.8mm6.8mm69mm109mm
£2.14£1.32
81050406906.9mm6.9mm69mm109mm£1.95
81050407007mm7mm69mm109mm£2.49
81050407107.1mm7.1mm69mm109mm£2.28
81050407207.2mm7.2mm69mm109mm
£2.28£1.32
81050407307.3mm7.3mm69mm109mm£2.28
81050407407.4mm7.4mm69mm109mm
£2.33£1.17
81050407507.5mm7.5mm69mm109mm
£2.33£1.28
81050407607.6mm7.6mm75mm117mm£2.33
81050407707.7mm7.7mm75mm117mm
£2.48£1.42
81050407807.8mm7.8mm75mm117mm£2.48
81050407907.9mm7.9mm75mm117mm£2.48
81050408008mm8mm75mm117mm£2.77
81050408108.1mm8.1mm75mm117mm£3.06
81050408208.2mm8.2mm75mm117mm£3.06
81050408308.3mm8.3mm75mm117mm£3.33
81050408408.4mm8.4mm75mm117mm£3.33
81050408508.5mm8.5mm75mm117mm
£4.38£2.03
81050408608.6mm8.6mm81mm125mm£3.63
81050408708.7mm8.7mm81mm125mm
£3.63£1.98
81050408808.8mm8.8mm81mm125mm£3.63
81050408908.9mm8.9mm81mm125mm
£3.63£1.82
81050409009mm9mm81mm125mm£3.65
81050409109.1mm9.1mm81mm125mm
£3.85£1.99
81050409209.2mm9.2mm81mm125mm£3.85
81050409309.3mm9.3mm81mm125mm£4.06
81050409409.4mm9.4mm81mm125mm£4.06
81050409509.5mm9.5mm81mm125mm£4.06
81050409609.6mm9.6mm87mm133mm£4.16
81050409709.7mm9.7mm87mm133mm£4.16
81050409809.8mm9.8mm87mm133mm£4.22
81050409909.9mm9.9mm87mm133mm£4.22
810504100010mm10mm87mm133mm
£4.74£2.63
810504101010.1mm10.1mm87mm133mm£4.34
810504102010.2mm10.2mm87mm133mm
£4.49£2.75
810504103010.3mm10.3mm87mm133mm£4.58
810504104010.4mm10.4mm87mm133mm£4.58
810504105010.5mm10.5mm87mm133mm£5.04
810504106010.6mm10.6mm87mm133mm£4.64
810504107010.7mm10.7mm94mm142mm£4.64
810504108010.8mm10.8mm94mm142mm£4.64
810504109010.9mm10.9mm94mm142mm£4.64
810504110011mm11mm94mm142mm
£4.81£2.58
810504111011.1mm11.1mm94mm142mm£5.84
810504112011.2mm11.2mm94mm142mm£5.84
810504113011.3mm11.3mm94mm142mm£5.84
810504114011.4mm11.4mm94mm142mm£5.84
810504115011.5mm11.5mm94mm142mm£5.84
810504116011.6mm11.6mm94mm142mm£5.84
810504117011.7mm11.7mm94mm142mm£5.84
810504118011.8mm11.8mm94mm142mm£5.84
810504119011.9mm11.9mm101mm151mm
£5.84£3.20
810504120012mm12mm101mm151mm£6.54
810504121012.1mm12.1mm101mm151mm£6.07
810504122012.2mm12.2mm101mm151mm£6.07
810504123012.3mm12.3mm101mm151mm£6.07
810504124012.4mm12.4mm101mm151mm£6.74
810504125012.5mm12.5mm101mm151mm£7.73
810504126012.6mm12.6mm101mm151mm£7.00
810504127012.7mm12.7mm101mm151mm£7.00
810504128012.8mm12.8mm101mm151mm£7.00
810504129012.9mm12.9mm101mm151mm£7.00
810504130013mm13mm101mm151mm£8.00
