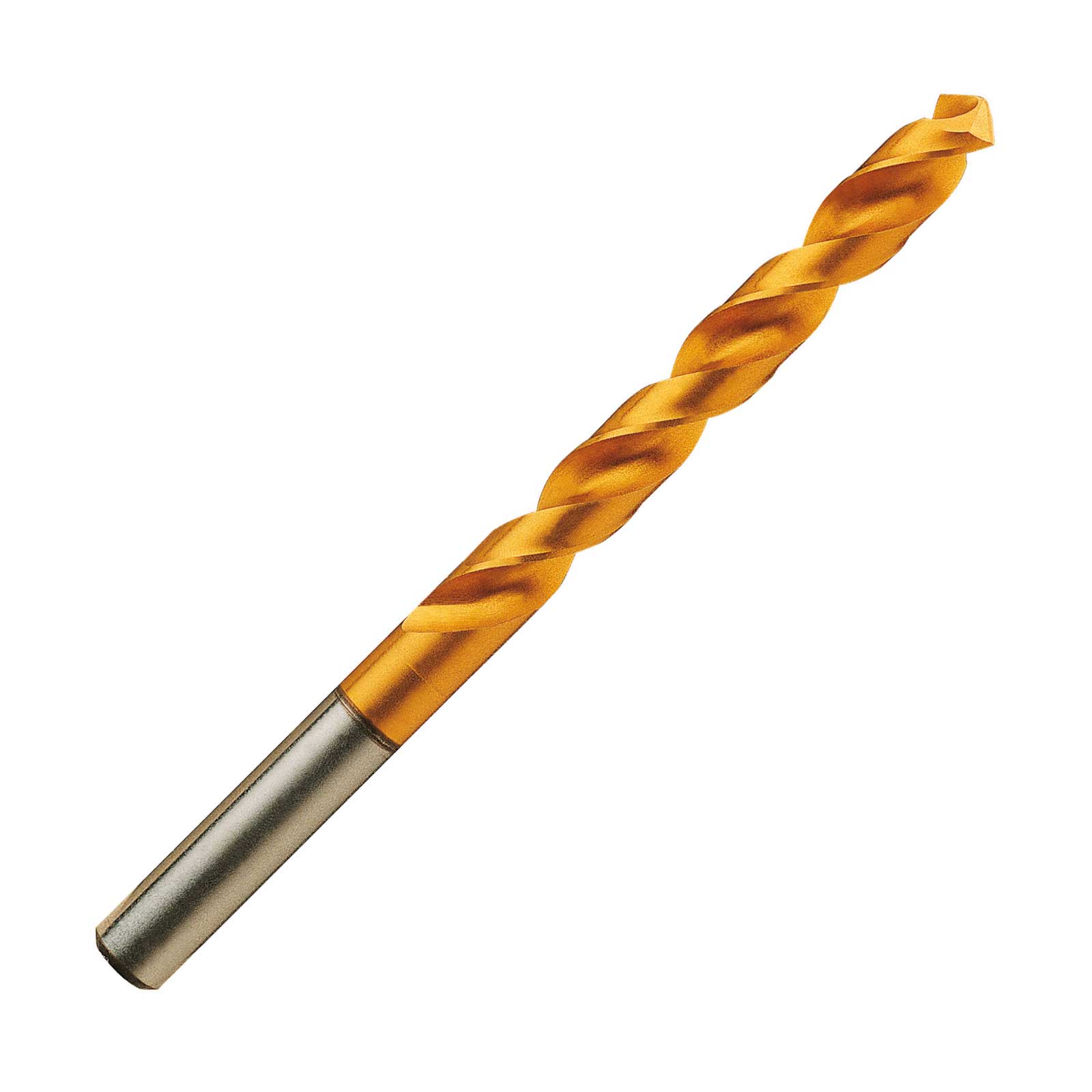

Image of HPD-SUS HSS vanadium tin coated 5xD jobber drill.

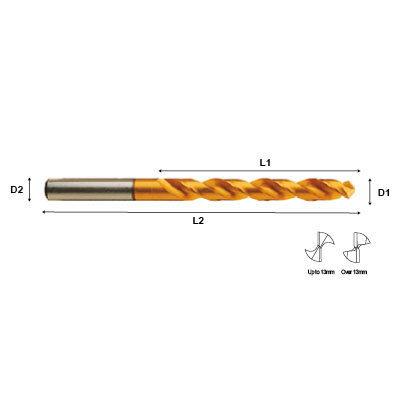

Technical drawing of HPH-SUS HSS vanadium tin coated 5xD jobber drill.

Osborn HPD-SUS Vanadium TiN Coated (Stainless) 5xD Drill

Series: 810434
Starting From:
£7.43 excl. VAT
£8.92 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
  • High helix-sharp cutting edges to avoid built-up and to be suitable for high performance drilling
  • Reinforced web and Jobbers length-increasing rigidity and suitable for 4D-5D drilling
  • High vanadium HSS-EX material with superior TiN coating - higher speed and feed, longer service life
  • High quality-good surface finishes, high productivity and weeding second operation

Designed for 4D-5D drilling in stainless steels, mild steels, aluminium, aluminium alloy, aluminium die cast, copper, copper alloy etc.

...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Shank Diameter / D2Flute Length / L1Overall Length / L2Price (Ex VAT)
81043402002mm2mm24mm56mm£8.00
81043402102.1mm2.1mm24mm56mm£9.35
81043402202.2mm2.2mm27mm59mm£9.35
81043402302.3mm2.3mm27mm59mm£9.35
81043402402.4mm2.4mm30mm62mm£9.35
81043402502.5mm2.5mm30mm62mm£8.00
81043402602.6mm2.6mm30mm62mm£8.96
81043402702.7mm2.7mm33mm65mm£8.96
81043402802.8mm2.8mm33mm65mm£8.96
81043402902.9mm2.9mm33mm65mm£8.96
81043403003mm3mm33mm65mm£7.43
81043403103.1mm3.1mm36mm68mm£9.35
81043403203.2mm3.2mm36mm68mm£9.35
81043403303.3mm3.3mm36mm68mm£9.35
81043403403.4mm3.4mm39mm71mm£9.35
81043403503.5mm3.5mm39mm71mm£9.35
81043403603.6mm3.6mm39mm71mm£11.20
81043403703.7mm3.7mm39mm71mm
£10.35£4.98
81043403803.8mm3.8mm43mm75mm£10.10
81043403903.9mm3.9mm43mm75mm£11.20
81043404004mm4mm43mm75mm£10.10
81043404104.1mm4.1mm43mm87mm£13.41
81043404204.2mm4.2mm43mm87mm£12.14
81043404304.3mm4.3mm47mm91mm£13.41
81043404404.4mm4.4mm47mm91mm£13.41
81043404504.5mm4.5mm47mm91mm£12.14
81043404604.6mm4.6mm47mm91mm£13.56
81043404704.7mm4.7mm47mm91mm£15.69
81043404804.8mm4.8mm52mm96mm£15.69
81043404904.9mm4.9mm52mm96mm£15.69
81043405005mm5mm52mm96mm£14.23
81043405105.1mm5.1mm52mm96mm£14.23
81043405205.2mm5.2mm52mm96mm£16.25
81043405305.3mm5.3mm52mm96mm£18.20
81043405405.4mm5.4mm57mm101mm£18.20
81043405505.5mm5.5mm57mm101mm£16.25
81043405605.6mm5.6mm57mm101mm£20.80
81043405705.7mm5.7mm57mm101mm£20.80
81043405805.8mm5.8mm57mm101mm£20.80
81043405905.9mm5.9mm57mm101mm£20.80
81043406006mm6mm57mm101mm£18.71
81043406106.1mm6.1mm63mm107mm£20.93
81043406206.2mm6.2mm63mm107mm£20.93
81043406306.3mm6.3mm63mm107mm£20.93
81043406406.4mm6.4mm63mm107mm£20.93
81043406506.5mm6.5mm63mm107mm£18.73
81043406606.6mm6.6mm63mm107mm£21.09
81043406706.7mm6.7mm63mm107mm£21.09
81043406806.8mm6.8mm69mm113mm£21.09
81043406906.9mm6.9mm69mm113mm£21.09
81043407007mm7mm69mm113mm£19.87
81043407107.1mm7.1mm69mm113mm£21.80
81043407207.2mm7.2mm69mm113mm£21.80
81043407307.3mm7.3mm69mm113mm£21.80
81043407407.4mm7.4mm69mm113mm£21.80
81043407507.5mm7.5mm69mm113mm£21.80
81043407607.6mm7.6mm75mm119mm£24.36
81043407707.7mm7.7mm75mm119mm£24.36
81043407807.8mm7.8mm75mm119mm£24.36
81043407907.9mm7.9mm75mm119mm£24.36
81043408008mm8mm75mm119mm£22.93
81043408108.1mm8.1mm75mm125mm£24.89
81043408208.2mm8.2mm75mm125mm£24.89
81043408308.3mm8.3mm75mm125mm£24.89
81043408408.4mm8.4mm75mm125mm£24.89
81043408508.5mm8.5mm75mm125mm£22.60
81043408608.6mm8.6mm81mm131mm£22.60
81043408708.7mm8.7mm81mm131mm£27.92
81043408808.8mm8.8mm81mm131mm£27.92
81043408908.9mm8.9mm81mm131mm£27.92
81043409009mm9mm81mm131mm£23.31
81043409109.1mm9.1mm81mm131mm£31.12
81043409209.2mm9.2mm81mm131mm£31.12
81043409309.3mm9.3mm81mm131mm£28.76
81043409409.4mm9.4mm81mm131mm£31.12
81043409509.5mm9.5mm81mm131mm£28.58
81043409609.6mm9.6mm87mm137mm£35.06
81043409709.7mm9.7mm87mm137mm£35.06
81043409809.8mm9.8mm87mm137mm£35.06
81043409909.9mm9.9mm87mm137mm£35.06
810434100010mm10mm87mm137mm£29.65
810434101010.1mm10.1mm87mm144mm£35.98
810434102010.2mm10.2mm87mm144mm£31.18
810434103010.3mm10.3mm87mm144mm£31.18
810434105010.5mm10.5mm87mm144mm£33.14
810434110011mm11mm94mm151mm£34.26
810434111011.1mm11.1mm94mm151mm£40.59
810434112011.2mm11.2mm94mm151mm£40.59
810434115011.5mm11.5mm94mm151mm£40.59
810434118011.8mm11.8mm94mm151mm£47.92
810434120012mm12mm101mm158mm£41.12
810434125012.5mm12.5mm101mm158mm£48.10
810434127012.7mm12.7mm101mm158mm£55.16
810434128012.8mm12.8mm101mm158mm£53.14
810434130013mm13mm101mm158mm£49.15
810434135013.5mm13.5mm106mm166mm£57.62
810434140014mm14mm106mm166mm£57.62
810434141014.1mm14.1mm109mm169mm£86.52
810434145014.5mm14.5mm109mm169mm£69.40
810434150015mm15mm109mm169mm£69.40
810434155015.5mm15.5mm112mm172mm£83.27
810434160016mm16mm112mm172mm£83.27
810434165016.5mm16.5mm115mm181mm£96.72
810434170017mm17mm115mm181mm£96.72
810434175017.5mm17.5mm118mm184mm£118.59
810434180018mm18mm118mm184mm£118.59
810434185018.5mm18.5mm122mm188mm£122.63
810434190019mm19mm122mm188mm£122.63
810434195019.5mm19.5mm125mm191mm£135.95
810434200020mm20mm125mm191mm£151.33
