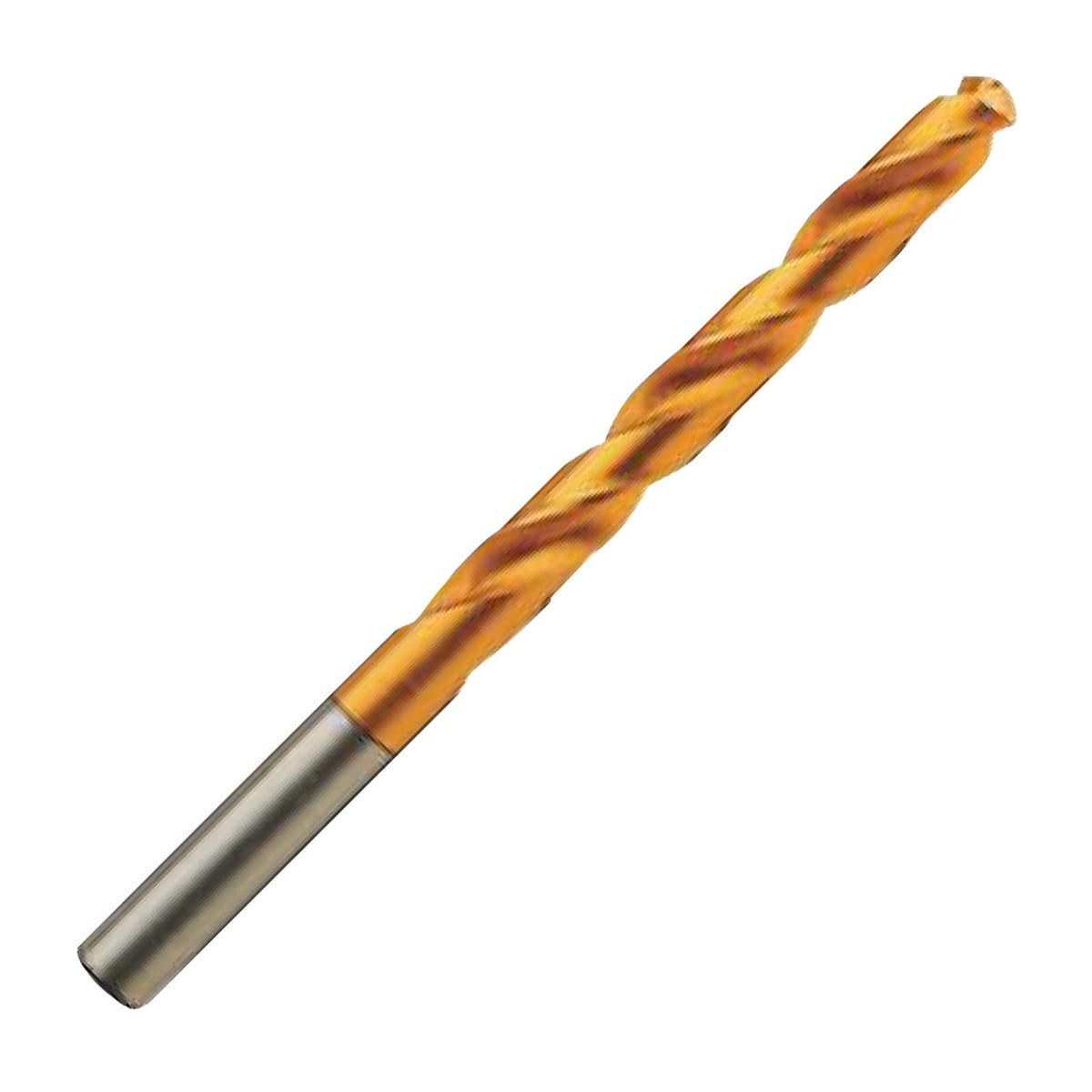

Image of HPD HSS premium cobalt tin coated 5xD jobber drill from Osborn.
Technical drawing of HPH HSS premium cobalt tin coated 5xD jobber drill from Osborn.

Osborn 810205 HPD HSS Premium Cobalt Tin Coated 5xd Jobber Drill

Series: 810205
Starting From:
£6.89 excl. VAT
£8.27 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

Designed for high speed non-step 4D~5D drilling. Drilling in mild steel, cast iron, aluminium, alloyed, tool steel, etc.

Features: • Helical thinning - good chip removal, self-centering, reducing thrust and improving accuracy. • Reinforced web and jobbers length - increasing rigidity and suitable for 4D~5D drilling. • Premium Cobalt HSS with superior TiN coating - higher speed and feed, longer service life. • High quality - good surface finishes, high productivity and weeding second operation.

...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / D1Shank Diameter / D2Flute Length / L1Overall Length / L2Price (Ex VAT)
81020502002mm2mm24mm56mm£7.09
81020502102.1mm2.1mm24mm56mm£8.67
81020502152.15mm2.15mm27mm59mm£8.67
81020502202.2mm2.2mm27mm59mm£8.67
81020502252.25mm2.25mm27mm59mm£8.67
81020502302.3mm2.3mm27mm59mm£8.67
81020502352.35mm2.35mm27mm59mm£8.67
81020502402.4mm2.4mm30mm62mm£8.67
81020502452.45mm2.45mm30mm62mm£8.67
81020502502.5mm2.5mm30mm62mm£7.40
81020502552.55mm2.55mm30mm62mm£8.28
81020502602.6mm2.6mm30mm62mm£8.30
81020502652.65mm2.65mm30mm62mm£8.28
81020502702.7mm2.7mm33mm65mm£8.30
81020502752.75mm2.75mm33mm65mm£8.28
81020502802.8mm2.8mm33mm65mm£8.30
81020502852.85mm2.85mm33mm65mm£8.28
81020502902.9mm2.9mm33mm65mm£8.30
81020502952.95mm2.95mm33mm65mm£8.28
81020503003mm3mm33mm65mm£6.89
81020503103.1mm3.1mm36mm68mm£8.67
81020503153.15mm3.15mm36mm68mm£8.67
81020503203.2mm3.2mm36mm68mm£8.67
81020503253.25mm3.25mm36mm68mm£8.67
81020503303.3mm3.3mm36mm68mm£8.67
81020503353.35mm3.35mm36mm68mm£8.67
81020503403.4mm3.4mm39mm71mm£8.67
81020503453.45mm3.45mm39mm71mm£8.67
81020503503.5mm3.5mm39mm71mm£8.67
81020503553.55mm3.55mm39mm71mm£10.33
81020503603.6mm3.6mm39mm71mm£10.33
81020503653.65mm3.65mm39mm71mm£10.33
81020503753.75mm3.75mm39mm71mm£10.33
81020503803.8mm3.8mm43mm75mm£9.29
81020503853.85mm3.85mm43mm75mm£10.33
81020503903.9mm3.9mm43mm75mm£10.33
81020503953.95mm3.95mm43mm75mm£10.33
81020504004mm4mm43mm75mm£9.29
81020504054.05mm4.05mm43mm87mm£12.41
81020504104.1mm4.1mm43mm87mm£12.41
81020504154.15mm4.15mm43mm87mm£12.41
81020504204.2mm4.2mm43mm87mm£11.23
81020504254.25mm4.25mm43mm87mm£12.41
81020504304.3mm4.3mm47mm91mm£12.41
81020504354.35mm4.35mm47mm91mm£12.41
81020504404.4mm4.4mm47mm91mm£12.41
81020504454.45mm4.45mm47mm91mm£12.41
81020504504.5mm4.5mm47mm91mm£11.23
81020504554.55mm4.55mm47mm91mm£14.47
81020504604.6mm4.6mm47mm91mm£14.47
81020504654.65mm4.65mm47mm91mm£14.47
81020504704.7mm4.7mm47mm91mm£14.47
81020504754.75mm4.75mm47mm91mm£14.47
81020504804.8mm4.8mm52mm96mm£14.47
81020504854.85mm4.85mm52mm96mm£14.47
81020504904.9mm4.9mm52mm96mm£14.47
81020504954.95mm4.95mm52mm96mm£14.47
81020505005mm5mm52mm96mm£13.14
81020505055.05mm5.05mm52mm96mm£13.14
81020505105.1mm5.1mm52mm96mm£13.14
81020505155.15mm5.15mm52mm96mm£14.96
81020505205.2mm5.2mm52mm96mm£14.96
81020505305.3mm5.3mm52mm96mm£16.80
81020505355.35mm5.35mm57mm101mm£16.80
81020505405.4mm5.4mm57mm101mm£16.80
81020505455.45mm5.45mm57mm101mm£16.80
81020505505.5mm5.5mm57mm101mm£14.96
81020505555.55mm5.55mm57mm101mm£19.22
81020505605.6mm5.6mm57mm101mm£19.22
81020505655.65mm5.65mm57mm101mm£19.22
81020505705.7mm5.7mm57mm101mm£19.22
81020505755.75mm5.75mm57mm101mm£19.22
81020505805.8mm5.8mm57mm101mm£19.22
81020505855.85mm5.85mm57mm101mm£19.22
81020505905.9mm5.9mm57mm101mm£19.22
81020505955.95mm5.95mm57mm101mm£19.22
81020506006mm6mm57mm101mm£17.26
81020506056.05mm6.05mm63mm107mm£19.31
81020506106.1mm6.1mm63mm107mm£19.31
81020506156.15mm6.15mm63mm107mm£19.31
81020506206.2mm6.2mm63mm107mm£19.31
81020506256.25mm6.25mm63mm107mm£19.31
81020506306.3mm6.3mm63mm107mm£19.31
81020506406.4mm6.4mm63mm107mm£19.31
81020506456.45mm6.45mm63mm107mm£19.31
81020506506.5mm6.5mm63mm107mm£17.28
81020506556.55mm6.55mm63mm107mm£19.43
81020506606.6mm6.6mm63mm107mm£19.43
81020506656.65mm6.65mm63mm107mm£19.43
81020506706.7mm6.7mm63mm107mm£19.43
81020506756.75mm6.75mm69mm113mm£19.43
81020506806.8mm6.8mm69mm113mm£19.43
81020506856.85mm6.85mm69mm113mm£19.43
81020506906.9mm6.9mm69mm113mm£19.43
81020506956.95mm6.95mm69mm113mm£19.43
81020507007mm7mm69mm113mm£19.43
81020507057.05mm7.05mm69mm113mm£20.16
81020507107.1mm7.1mm69mm113mm£20.12
81020507157.15mm7.15mm69mm113mm£20.16
81020507207.2mm7.2mm69mm113mm£20.12
81020507257.25mm7.25mm69mm113mm£20.16
81020507307.3mm7.3mm69mm113mm£20.12
81020507357.35mm7.35mm69mm113mm£20.16
81020507407.4mm7.4mm69mm113mm£20.12
81020507457.45mm7.45mm69mm113mm£20.16
81020507507.5mm7.5mm69mm113mm£20.12
81020507557.55mm7.55mm75mm119mm£22.52
81020507607.6mm7.6mm75mm119mm£22.52
81020507657.65mm7.65mm75mm119mm£22.52
81020507707.7mm7.7mm75mm119mm£22.52
81020507757.75mm7.75mm75mm119mm£22.52
81020507807.8mm7.8mm75mm119mm£22.52
81020507857.85mm7.85mm75mm119mm£22.52
81020507907.9mm7.9mm75mm119mm£22.52
81020507957.95mm7.95mm75mm119mm£22.52
81020508008mm8mm75mm119mm£21.20
81020508058.05mm8.05mm75mm125mm£23.04
81020508108.1mm8.1mm75mm125mm£23.04
81020508158.15mm8.15mm75mm125mm£23.04
81020508208.2mm8.2mm75mm125mm£23.04
81020508258.25mm8.25mm75mm125mm£23.04
81020508308.3mm8.3mm75mm125mm£23.04
81020508358.35mm8.35mm75mm125mm£23.04
81020508408.4mm8.4mm75mm125mm£23.04
81020508458.45mm8.45mm75mm125mm£23.04
81020508508.5mm8.5mm75mm125mm£20.91
81020508558.55mm8.55mm81mm131mm£23.04
81020508608.6mm8.6mm81mm131mm£23.04
81020508658.65mm8.65mm81mm131mm£25.75
81020508708.7mm8.7mm81mm131mm£25.75
81020508758.75mm8.75mm81mm131mm£25.75
81020508808.8mm8.8mm81mm131mm£25.75
81020508858.85mm8.85mm81mm131mm£25.75
81020508908.9mm8.9mm81mm131mm£25.75
81020508958.95mm8.95mm81mm131mm£25.75
81020509009mm9mm81mm131mm£21.53
81020509059.05mm9.05mm81mm131mm£28.77
81020509109.1mm9.1mm81mm131mm£28.77
81020509159.15mm9.15mm81mm131mm£28.77
81020509209.2mm9.2mm81mm131mm£28.77
81020509259.25mm9.25mm81mm131mm£28.77
81020509359.35mm9.35mm81mm131mm£28.77
81020509409.4mm9.4mm81mm131mm£28.77
81020509459.45mm9.45mm81mm131mm£28.77
81020509509.5mm9.5mm81mm131mm£26.43
81020509559.55mm9.55mm87mm137mm£32.37
81020509609.6mm9.6mm87mm137mm£32.37
81020509659.65mm9.65mm87mm137mm£32.37
81020509709.7mm9.7mm87mm137mm£32.37
81020509759.75mm9.75mm87mm137mm£32.37
81020509809.8mm9.8mm87mm137mm£32.37
81020509859.85mm9.85mm87mm137mm£32.37
81020509909.9mm9.9mm87mm137mm£32.37
81020509959.95mm9.95mm87mm137mm£32.37
810205100010mm10mm87mm137mm
£27.37£13.63
810205101010.1mm10.1mm87mm144mm£33.24
810205101510.15mm10.15mm87mm144mm£33.24
810205102010.2mm10.2mm87mm144mm£33.24
810205102510.25mm10.25mm87mm144mm£33.24
810205103010.3mm10.3mm87mm144mm£33.24
810205103510.35mm10.35mm87mm144mm£33.24
810205104010.4mm10.4mm87mm144mm£33.24
810205104510.45mm10.45mm87mm144mm£33.24
810205105010.5mm10.5mm87mm144mm£30.63
810205105510.55mm10.55mm87mm144mm£36.61
810205106010.6mm10.6mm87mm144mm£36.61
810205106510.65mm10.65mm94mm151mm£36.61
810205107010.7mm10.7mm94mm151mm£36.61
810205107510.75mm10.75mm94mm151mm£36.61
810205108010.8mm10.8mm94mm151mm£36.61
810205108510.85mm10.85mm94mm151mm£36.61
810205109010.9mm10.9mm94mm151mm£36.61
810205109510.95mm10.95mm94mm151mm£36.61
810205110011mm11mm94mm151mm£31.58
810205110511.05mm11.05mm94mm151mm£40.93
810205111011.1mm11.1mm94mm151mm£40.93
810205111511.15mm11.15mm94mm151mm£40.93
810205112011.2mm11.2mm94mm151mm£40.93
810205112511.25mm11.25mm94mm151mm£40.93
810205113011.3mm11.3mm94mm151mm£40.93
810205113511.35mm11.35mm94mm151mm£40.93
810205114011.4mm11.4mm94mm151mm£40.93
810205114511.45mm11.45mm94mm151mm£40.93
810205115011.5mm11.5mm94mm151mm£37.48
810205115511.55mm11.55mm94mm151mm£44.28
810205116011.6mm11.6mm94mm151mm£44.28
810205116511.65mm11.65mm94mm151mm£44.28
810205117011.7mm11.7mm94mm151mm£44.28
810205117511.75mm11.75mm94mm151mm£44.28
810205118511.85mm11.85mm101mm158mm£44.28
810205119011.9mm11.9mm101mm158mm£44.28
810205119511.95mm11.95mm101mm158mm£44.28
810205120012mm12mm101mm158mm£37.91
810205121012.1mm12.1mm101mm158mm£48.20
810205122012.2mm12.2mm101mm158mm£48.20
810205123012.3mm12.3mm101mm158mm£48.20
810205124012.4mm12.4mm101mm158mm£48.20
810205125012.5mm12.5mm101mm158mm£44.36
810205126012.6mm12.6mm101mm158mm£51.05
810205127012.7mm12.7mm101mm158mm£51.05
810205128012.8mm12.8mm101mm158mm£51.05
810205129012.9mm12.9mm101mm158mm£51.05
810205130013mm13mm101mm158mm£45.44
810205135013.5mm13.5mm90mm150mm£53.20
810205140014mm14mm90mm150mm£53.20
810205145014.5mm14.5mm95mm155mm£64.12
810205155015.5mm15.5mm100mm166mm£76.88
810205156015.6mm15.6mm100mm166mm£84.62
810205160016mm16mm100mm166mm£76.88
810205165016.5mm16.5mm106mm172mm£89.34
810205170017mm17mm106mm172mm£89.34
810205175017.5mm17.5mm112mm178mm£109.58
810205176017.6mm17.6mm112mm178mm£120.46
810205180018mm18mm112mm178mm£109.58
810205185018.5mm18.5mm118mm184mm£113.26
810205190019mm19mm118mm194mm£113.26
810205195019.5mm19.5mm125mm201mm£125.53
810205196019.6mm19.6mm125mm201mm£153.75
810205200020mm20mm125mm201mm£139.80
810205205020.5mm20.5mm128mm204mm£172.71
810205210021mm21mm128mm204mm£172.71
810205211021.1mm21.1mm128mm204mm£172.71
810205215021.5mm21.5mm132mm208mm£183.62
810205220022mm22mm132mm208mm£169.71
810205225022.5mm22.5mm136mm212mm£210.22
810205230023mm23mm136mm212mm£210.22
810205235023.5mm23.5mm136mm212mm£222.59
810205240024mm24mm140mm220mm£222.59
810205245024.5mm24.5mm140mm220mm£222.59
810205250025mm25mm140mm220mm£222.59
