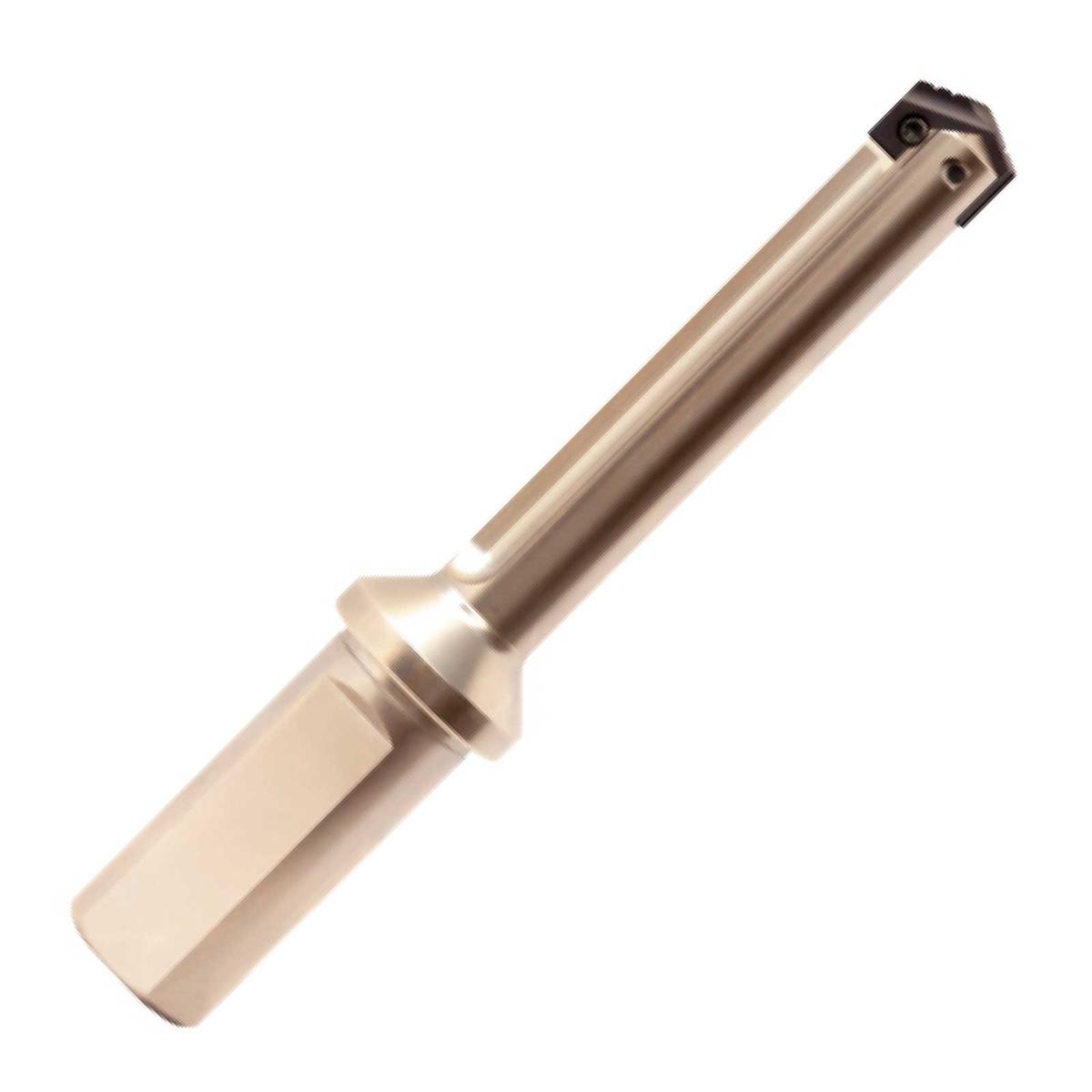

Straight Shank Spade Drill Short Length
Series: 8-2150-FMStarting From:
£144.43 excl. VAT
£173.32 incl. VAT
£144.43 excl. VAT
£173.32 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- Excellent chip evacuation
- Body clearance to avoid clogging and workpiece contact
- Nickel plated for added wear resistance
- Versatile drilling system to produce multiple diameters with one tool
- Wide range of inserts available to suit
...read more
| SKU | Drill Insert Range / A | Max Drill Depth / B | Flute Length / C | Ref Length / D | Overall Length / E | Shank Diameter / F | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| 8Y215020FM | 9.5mm-11mm | 31.8mm | 61.1mm | 63.5mm | 103mm | 20mm | £144.43 |
| 8Z215020FM | 11.5mm-12.5mm | 31.8mm | 61.1mm | 63.5mm | 103mm | 20mm | £144.43 |
| 80215020FM | 13mm-17.5mm | 34.9mm | 63.5mm | 66.3mm | 105.4mm | 20mm | £149.67 |
| 81215020FM | 15.5mm-17.5mm | 34.9mm | 63.5mm | 66.3mm | 105.4mm | 20mm | £149.66 |
| 82215025FM | 18mm-24mm | 66.7mm | 107.2mm | 110.7mm | 160.2mm | 25mm | £185.34 |
| 83215025FM | 22mm-24mm | 66.7mm | 107.2mm | 110.7mm | 160.2mm | 25mm | £186.93 |
| 84215032FM | 25mm-35mm | 85.7mm | 128.6mm | 132.2mm | 186.5mm | 32mm | £207.94 |
| 85215032FM | 30mm-35mm | 85.7mm | 128.6mm | 132.2mm | 186.5mm | 32mm | £209.51 |
| 86215040FM | 36mm-47mm | 120.7mm | 173mm | 177.8mm | 243.1mm | 40mm | £303.31£162.85 |
| 87215040FM | 48mm-65mm | 130.2mm | 179.4mm | 184.2mm | 249.5mm | 40mm | £315.81 |
