Straight Shank Spade Drills Extended Length
Series: 8-5250-FMStarting From:
£190.58 excl. VAT
£228.70 incl. VAT
£190.58 excl. VAT
£228.70 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- Excellent chip evacuation
- Body clearance to avoid clogging and workpiece contact
- Nickel plated for added wear resistance
- Versatile drilling system to produce multiple diameters with one tool
- Wide range of inserts available to suit
...read more

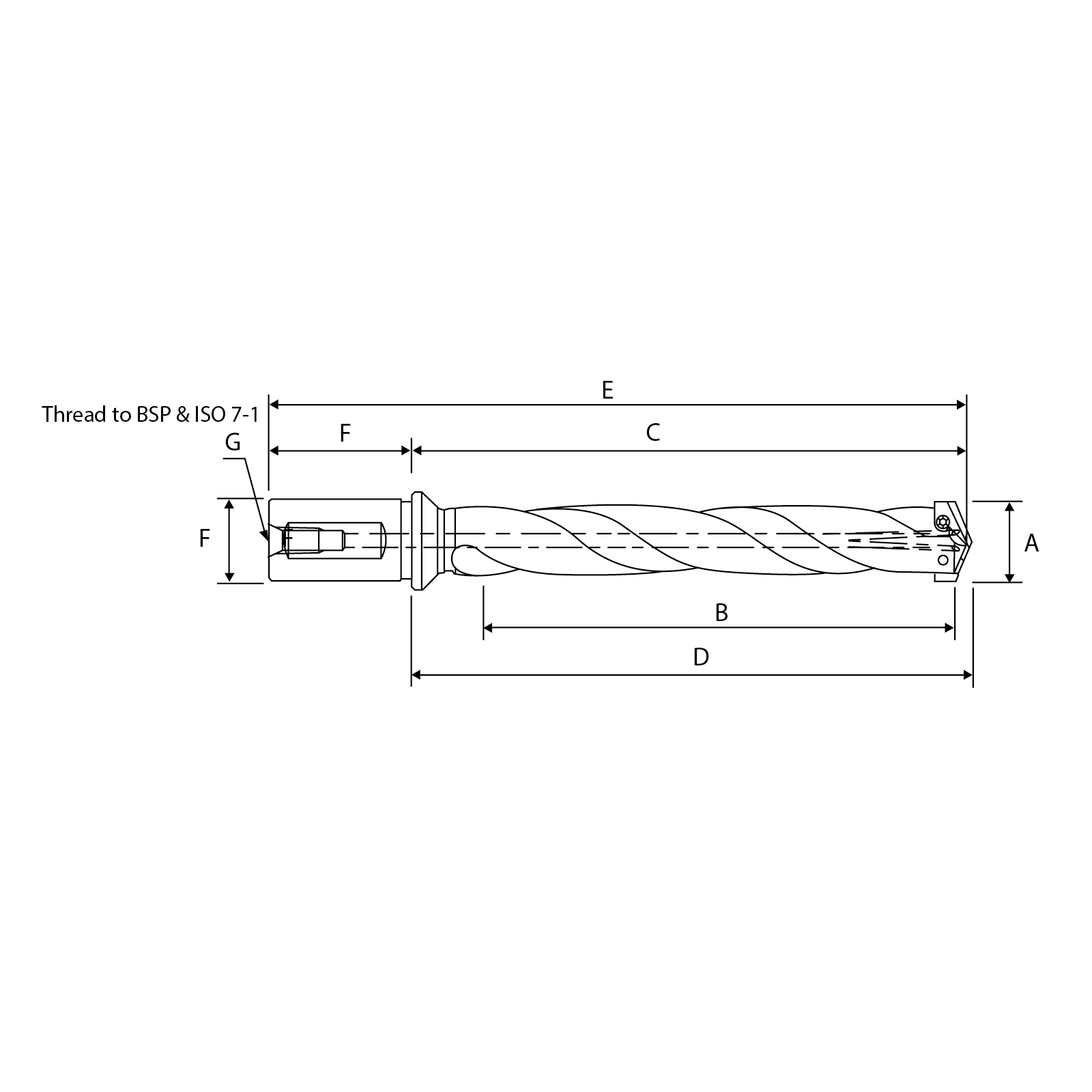

| SKU | Drill Insert Range / A | Max Drill Depth / B | Flute Length / C | Ref Length / D | Overall Length / E | Shank Diameter / F | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| 8Y425020FM | 9.5mm-11mm | 111.1mm | 140.5mm | 142.9mm | 182.4mm | 20mm | £190.58 |
| 8Z525020FM | 11.5mm-12.5mm | 111.1mm | 140.5mm | 142.9mm | 182.4mm | 20mm | £190.58 |
| 80525020FM | 13mm-17.5mm | 114.3mm | 142.9mm | 145.7mm | 184.8mm | 20mm | £192.17 |
| 81525020FM | 15.5mm-17.5mm | 114.3mm | 142.9mm | 145.7mm | 184.8mm | 20mm | £255.81 |
| 82525025FM | 18mm-24mm | 269.9mm | 307.2mm | 310.8mm | 360.3mm | 25mm | £374.30 |
| 83525025FM | 22mm-24mm | 269.9mm | 307.2mm | 310.8mm | 360.3mm | 25mm | £378.28 |
| 84525032FM | 25mm-35mm | 288.9mm | 331.8mm | 335.4mm | 389.7mm | 32mm | £398.95 |
| 85525032FM | 30mm-35mm | 288.9mm | 331.8mm | 335.4mm | 389.7mm | 32mm | £402.87 |
