  1. Home Page
  2. Series: 8-4250-M
Taper Shank Spade Drills Standard Length
Product image
Product image

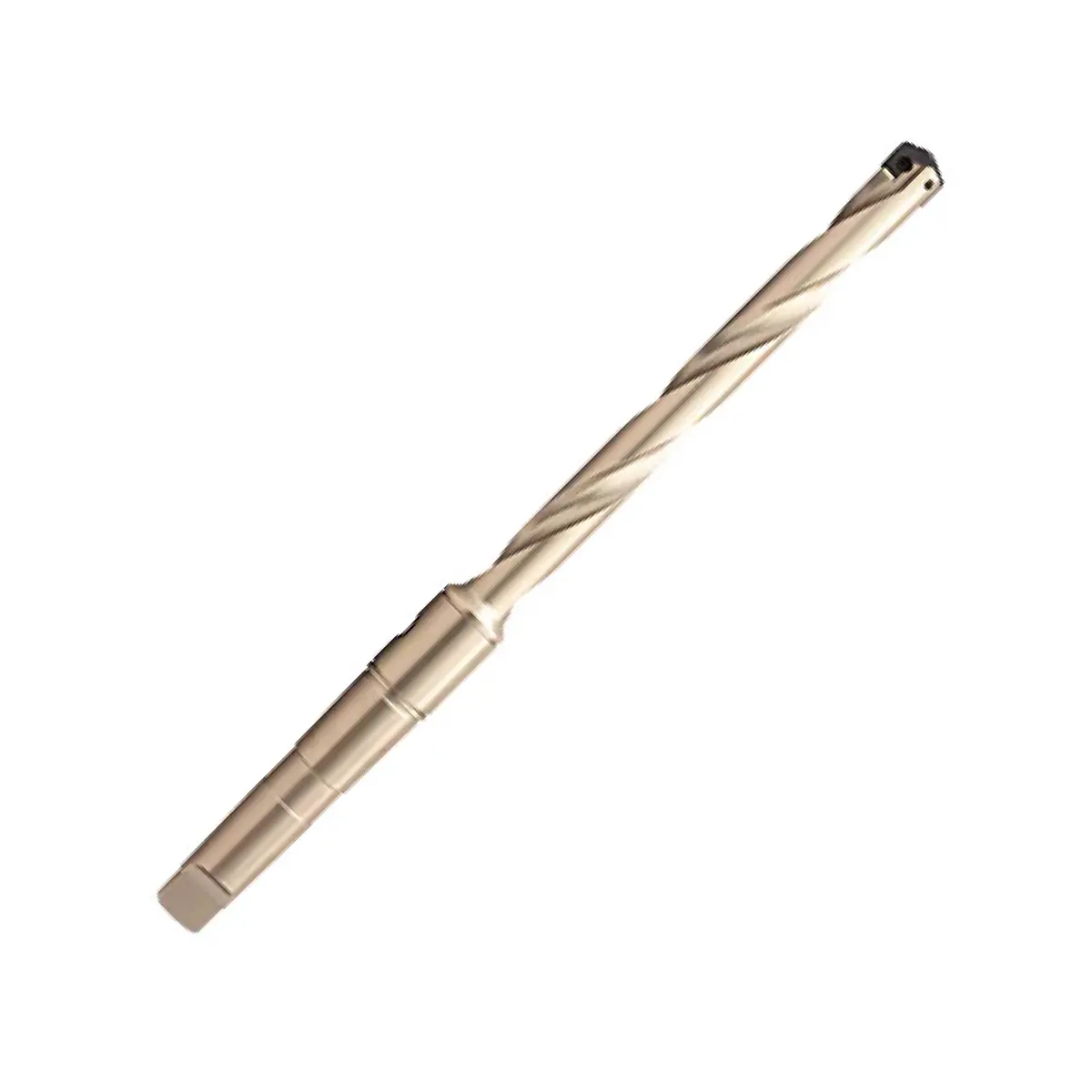

Taper Shank Spade Drills Standard Length

Series: 8-4250-M
Starting From:
£173.86 excl. VAT
£208.63 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
  •  Excellent chip evacuation
  •  Body clearance to avoid clogging and workpiece contact
  •  Nickel plated for added wear resistance
  •  Versatile drilling system to produce multiple diameters with one tool
  •  Wide range of inserts available to suit
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDrill Insert Range / AMax Drill Depth / BFlute Length / CRef Length / DOverall Length / EMorse Taper Size / FPrice (Ex VAT)
8Y4250002M9.5mm-11mm60.3mm80.2mm116.7mm188.9mmMT2£179.06
8Z4250002M11.5mm-12.5mm60.3mm80.2mm116.7mm188.9mmMT2£173.86
804250002M13mm-17.5mm63.5mm84.1mm121mm192.9mmMT2£202.15
814250002M15.5mm-17.5mm63.5mm84.1mm121mm192.9mmMT2£202.15
824250003M18mm-24mm171.5mm200mm244.1mm334.2mmMT3£327.52
834250003M22mm-24mm171.5mm200mm244.1mm334.2mmMT3£332.42
844250004M25mm-35mm187.3mm215.9mm262mm375.4mmMT4£385.68
854250004M30mm-35mm187.3mm215.9mm269.2mm382.6mmMT4£390.91
864250004M36mm-47mm209.5mm241.3mm295.3mm408mmMT4£414.43
874250005M48mm-65mm231.8mm266.7mm320.7mm465.1mmMT5£556.89
884250005M64mm-88mm273.1mm317.5mm388.9mm531.8mmMT5£744.54
894250005M90mm-114mm273.1mm327mm398.5mm541.3mmMT5£1153.33
