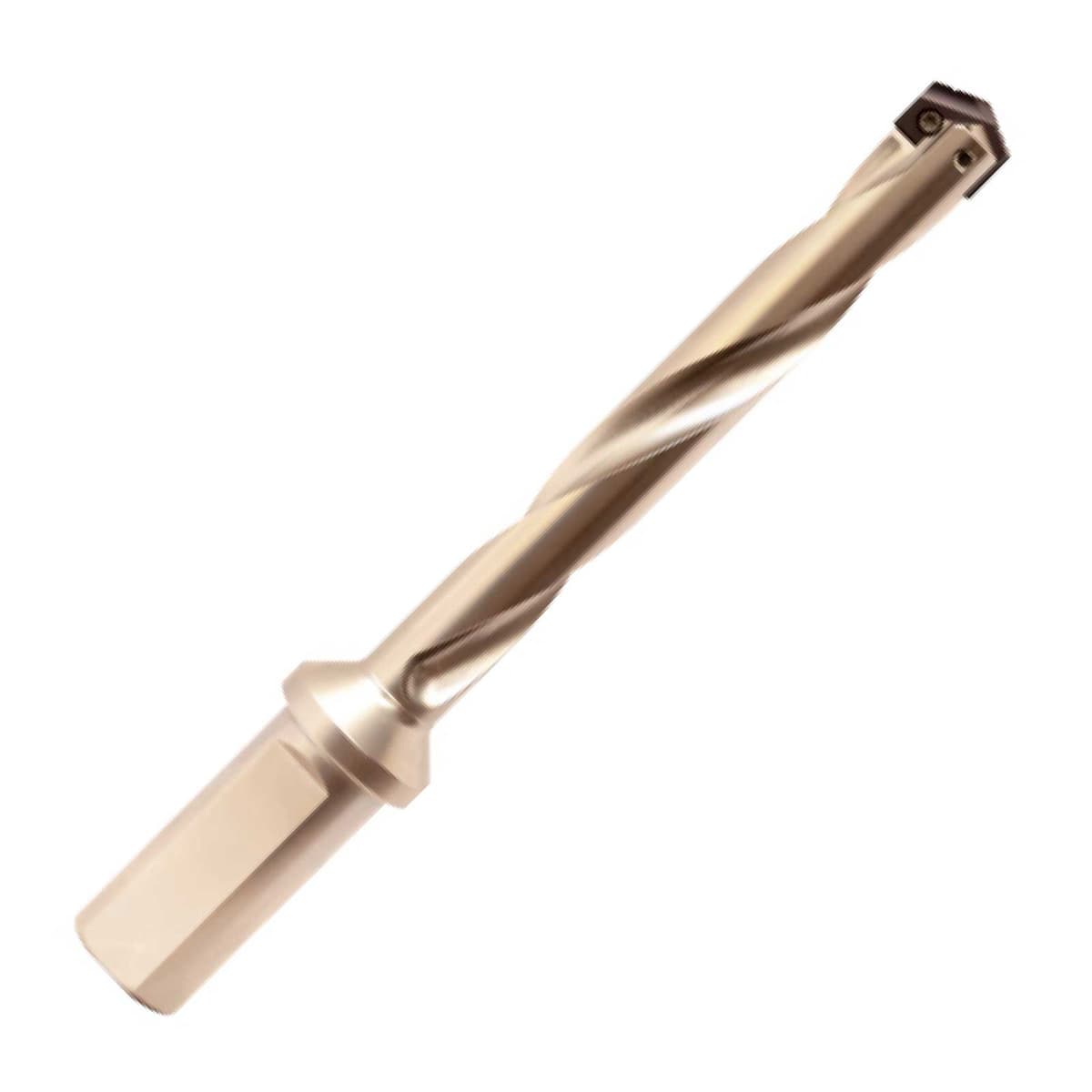

Straight Shank Spade Drill Intermediate Length
Series: 8-3250-FMStarting From:
£212.75 excl. VAT
£255.30 incl. VAT
£212.75 excl. VAT
£255.30 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- Excellent chip evacuation
- Body clearance to avoid clogging and workpiece contact
- Nickel plated for added wear resistance
- Versatile drilling system to produce multiple diameters with one tool
- Wide range of inserts available to suit
...read more

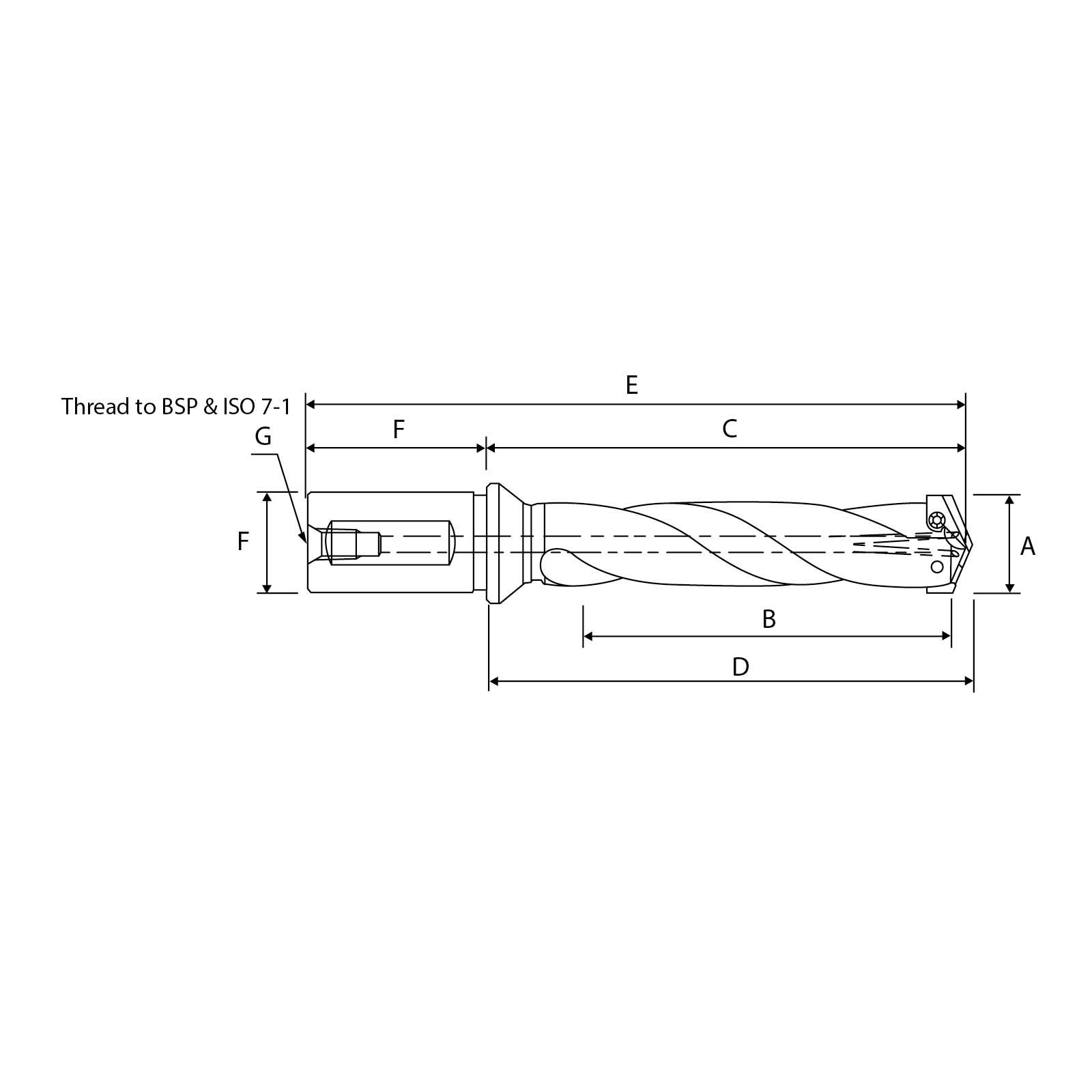

| SKU | Drill Insert Range / A | Max Drill Depth / B | Flute Length / C | Ref Length / D | Overall Length / E | Shank Diameter / F | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| 82325025FM | 18mm-24mm | 154.8mm | 154.8mm | 158.4mm | 207.9mm | 25mm | £212.75 |
| 83325025FM | 22mm-24mm | 154.8mm | 154.8mm | 158.4mm | 207.9mm | 25mm | £214.31 |
| 84325032FM | 25mm-35mm | 179.4mm | 179.4mm | 183mm | 237.3mm | 32mm | £325.76 |
| 85325032FM | 30mm-35mm | 179.4mm | 179.4mm | 183mm | 237.3mm | 32mm | £325.78 |
| 86325040FM | 36mm-47mm | 217.5mm | 217.5mm | 222.3mm | 287.6mm | 40mm | £406.90 |
