Taper Shank Spade Drill Intermediate Length
Series: 8-3250-MStarting From:
£239.37 excl. VAT
£287.24 incl. VAT
£239.37 excl. VAT
£287.24 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- Excellent chip evacuation
- Body clearance to avoid clogging and workpiece contact
- Nickel plated for added wear resistance
- Versatile drilling system to produce multiple diameters with one tool
- Wide range of inserts available to suit
...read more

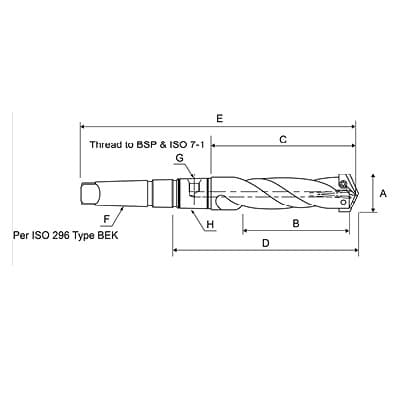

| SKU | Drill Insert Range / A | Max Drill Depth / B | Flute Length / C | Ref Length / D | Overall Length / E | Morse Taper Size / F | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| 823250003M | 18mm-24mm | 120.7mm | 149.2mm | 193.3mm | 283.3mm | MT3 | £239.37 |
| 833250003M | 22mm-24mm | 120.7mm | 149.2mm | 193.3mm | 283.3mm | MT3 | £240.95 |
| 843250004M | 25mm-35mm | 136.5mm | 165.1mm | 211.2mm | 324.6mm | MT4 | £367.98 |
| 853250004M | 30mm-35mm | 136.5mm | 165.1mm | 218.4mm | 331.8mm | MT4 | £371.13 |
| 863250004M | 36mm-47mm | 165.1mm | 196.9mm | 250.9mm | 363.6mm | MT4 | £404.22 |
