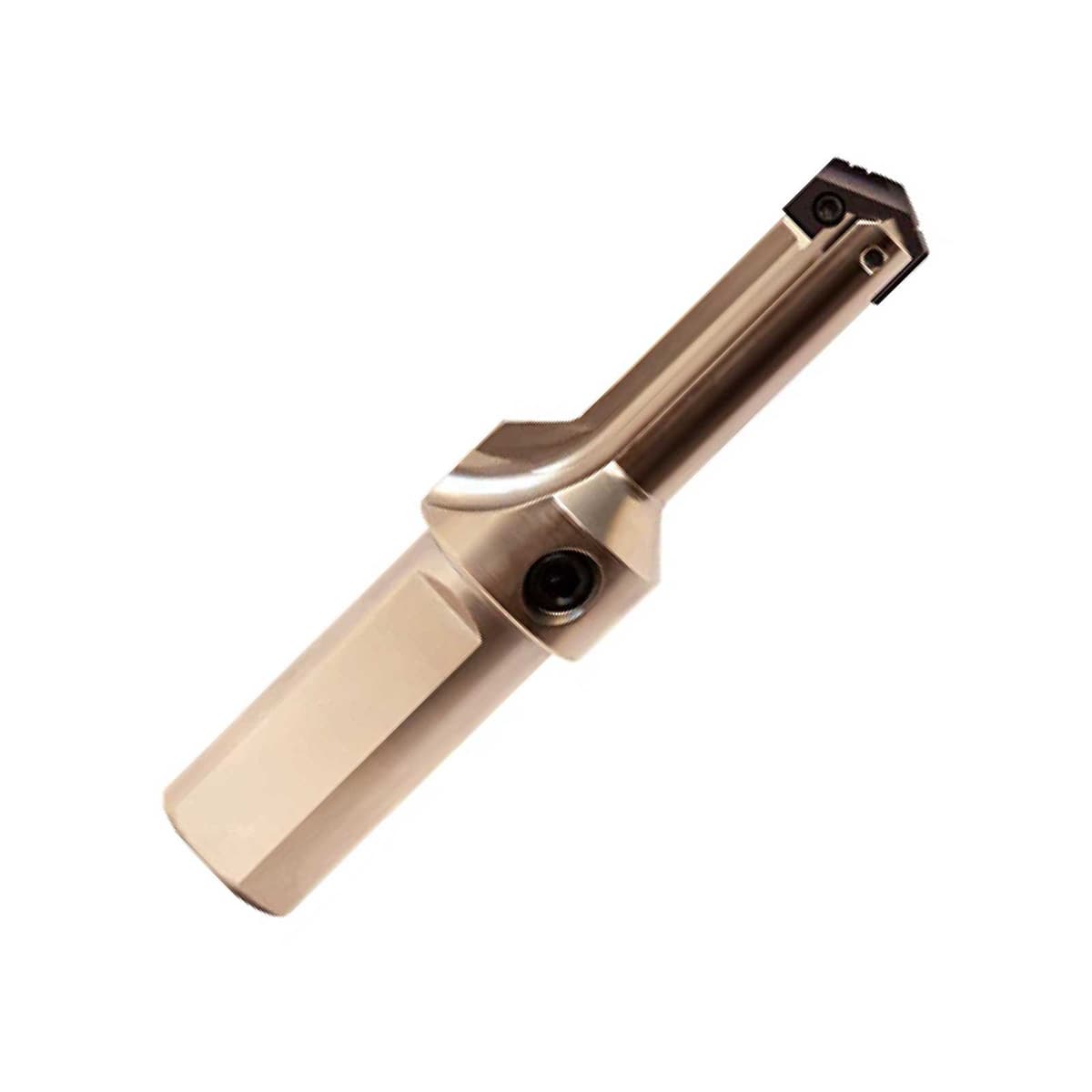

Straight Shank Spade Drill Stub Length
Series: 8-1150-FMStarting From:
£130.76 excl. VAT
£156.91 incl. VAT
£130.76 excl. VAT
£156.91 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- Excellent chip evacuation
- Body clearance to avoid clogging and workpiece contact
- Nickel plated for added wear resistance
- Versatile drilling system to produce multiple diameters with one tool
- Wide range of inserts available to suit
...read more
| SKU | Drill Insert Range / A | Max Drill Depth / B | Flute Length / C | Ref Length / D | Overall Length / E | Shank Diameter / F | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| 8Y115016FM | 9mm-11mm | 19.1mm | 47.6mm | 50mm | 89.5mm | 16mm | £130.76 |
| 8Z115016FM | 11.5mm-12.5mm | 19.1mm | 47.6mm | 50mm | 89.5mm | 16mm | £130.76 |
| 80115020FM | 13mm-17.5mm | 22.2mm | 47.6mm | 50.4mm | 89.5mm | 20mm | £135.99 |
| 81115020FM | 15.5mm-17.5mm | 22.2mm | 47.6mm | 50.4mm | 89.5mm | 20mm | £145.46 |
| 82115025FM | 18mm-24mm | 47.6mm | 75.8mm | 79.4mm | 128.9mm | 25mm | £170.81 |
| 83115025FM | 22mm-24mm | 57.2mm | 88.5mm | 92.1mm | 141.6mm | 25mm | £185.08 |
| 84115032FM | 25mm-35mm | 57.2mm | 88.5mm | 92.1mm | 146.4mm | 32mm | £188.94 |
