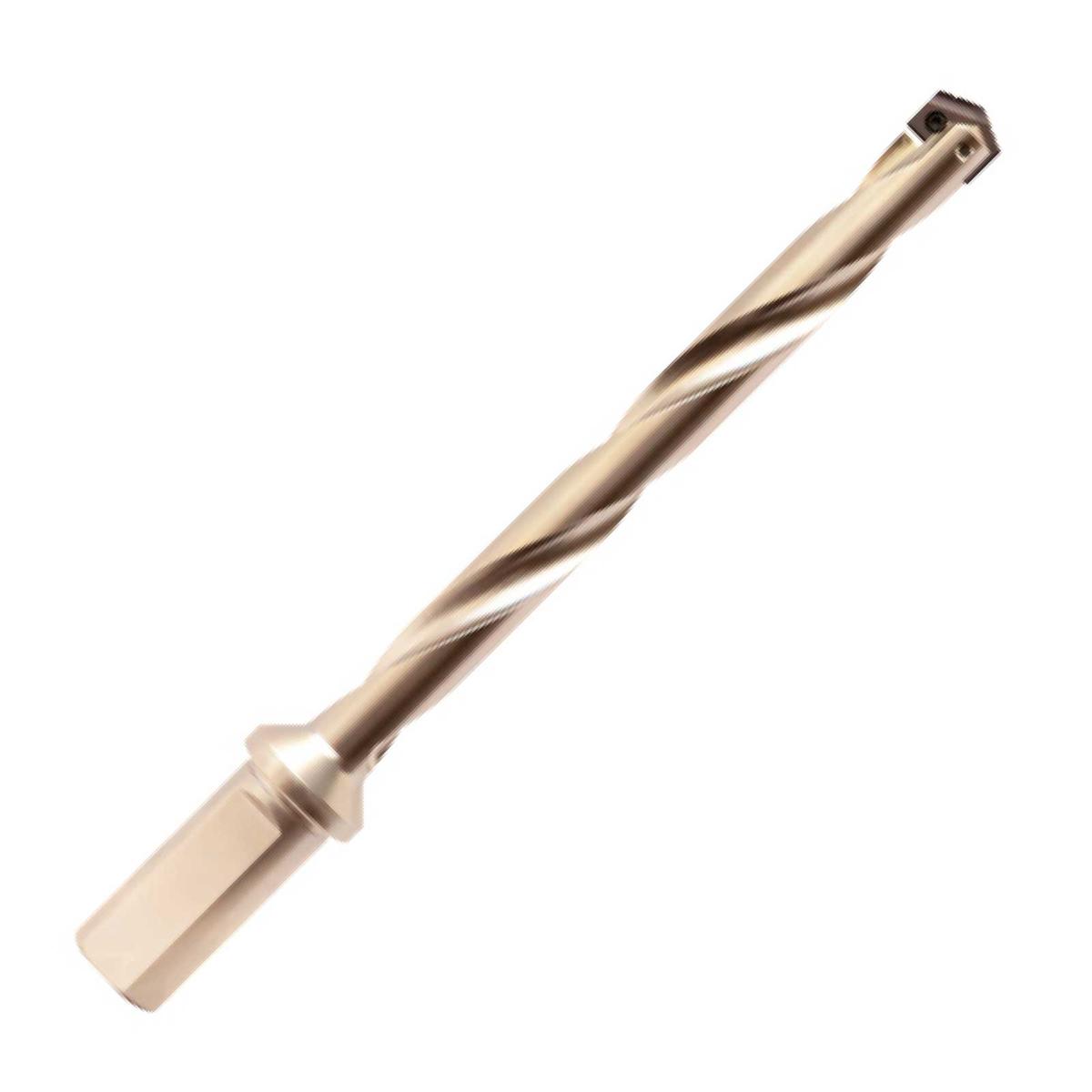

Straight Shank Spade Drills Standard Length
Series: 8-4250-FMStarting From:
£159.27 excl. VAT
£191.12 incl. VAT
£159.27 excl. VAT
£191.12 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- Excellent chip evacuation
- Body clearance to avoid clogging and workpiece contact
- Nickel plated for added wear resistance
- Versatile drilling system to produce multiple diameters with one tool
- Wide range of inserts available to suit
...read more
| SKU | Drill Insert Range / A | Max Drill Depth / B | Flute Length / C | Ref Length / D | Overall Length / E | Shank Diameter / F | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| 8Y325020FM | 9.5mm-11mm | 60.3mm | 89.7mm | 92.1mm | 131.6mm | 20mm | £159.27 |
| 8Z425020FM | 11.5mm-12.5mm | 60.3mm | 89.7mm | 92.1mm | 131.6mm | 20mm | £170.71 |
| 80425020FM | 13mm-17.5mm | 63.5mm | 92.1mm | 94.9mm | 134mm | 20mm | £168.88 |
| 81425020FM | 15.5mm-17.5mm | 63.5mm | 92.1mm | 94.9mm | 134mm | 20mm | £168.88 |
| 82425025FM | 18mm-24mm | 168.3mm | 205.6mm | 209.2mm | 258.7mm | 25mm | £246.39 |
| 83425025FM | 22mm-24mm | 168.3mm | 205.6mm | 209.2mm | 258.7mm | 25mm | £239.60 |
| 84425032FM | 25mm-35mm | 187.3mm | 230.2mm | 233.8mm | 288.1mm | 32mm | £325.38 |
| 85425032FM | 30mm-35mm | 187.3mm | 230.2mm | 233.8mm | 288.1mm | 32mm | £329.32 |
| 86425040FM | 36mm-47mm | 209.6mm | 261.9mm | 266.7mm | 332mm | 40mm | £438.02 |
| 87425040FM | 48mm-65mm | 231.8mm | 281mm | 285.8mm | 351.1mm | 40mm | £462.91 |
