  1. Osborn 702301 HSS 3 Flute 90 Degree Countersink

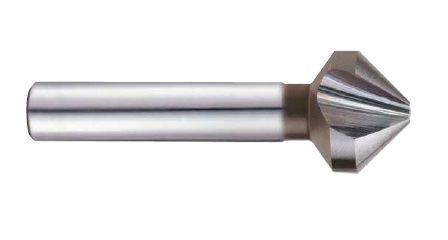

Osborn 702301 HSS 3 Flute 90 Degree Countersink.

Osborn 702301 HSS 3 Flute 90 Degree Countersink

Series: 702301
Starting From:
£6.84excl VAT£8.21 incl. VAT
View Product Variants Table

Features:

  • For producing countersinks for cap screws
  • Self centering and chatter free
  • Can be used for chamfering
  • DIN 345

For machining steels, hardened steel, stainless steel, cast iron, titanium, nickel, copper, brass and aluminium.

Description
D1
D2
L1
L2
Diameter
Shank Diameter
Flute Length
Overall Length
min/max
Angle
Stock
Price
Add To Cart
SKU: 7023010430
Diameter: 4.3mm
Shank Diameter: 4mm
Flute Length: 4mm
Overall Length: 40mm
min/max: 1.3 - 4.3Ê
Angle: 90ûÊ
1-2 days subject to availability

4.3MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£6.84ex VAT £8.21 inc VAT
More Detail
SKU: 7023010500
Diameter: 5mm
Shank Diameter: 4mm
Flute Length: 4mm
Overall Length: 40mm
min/max: 1.5 - 5Ê
Angle: 90ûÊ
1-2 days subject to availability

5MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£6.84ex VAT £8.21 inc VAT
More Detail
SKU: 7023010600
Diameter: 6mm
Shank Diameter: 5mm
Flute Length: 5mm
Overall Length: 45mm
min/max: 1.5 - 6Ê
Angle: 90ûÊ
1-2 days subject to availability

6MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£6.84ex VAT £8.21 inc VAT
More Detail
SKU: 7023010630
Diameter: 6.3mm
Shank Diameter: 5mm
Flute Length: 5mm
Overall Length: 45mm
min/max: 1.5 - 6.3Ê
Angle: 90ûÊ
1-2 days subject to availability

6.3MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£6.84ex VAT £8.21 inc VAT
More Detail
SKU: 7023010700
Diameter: 7mm
Shank Diameter: 6mm
Flute Length: 6mm
Overall Length: 50mm
min/max: 1.8 - 7Ê
Angle: 90ûÊ
1-2 days subject to availability

7MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£7.80ex VAT £9.36 inc VAT
More Detail
SKU: 7023010800
Diameter: 8mm
Shank Diameter: 6mm
Flute Length: 6mm
Overall Length: 50mm
min/max: 2 - 8Ê
Angle: 90ûÊ
1-2 days subject to availability

8MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£7.80ex VAT £9.36 inc VAT
More Detail
SKU: 7023010830
Diameter: 8.3mm
Shank Diameter: 6mm
Flute Length: 6mm
Overall Length: 50mm
min/max: 2 - 8.3Ê
Angle: 90ûÊ
1-2 days subject to availability

8.3MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£7.80ex VAT £9.36 inc VAT
More Detail
SKU: 7023011000
Diameter: 10mm
Shank Diameter: 6mm
Flute Length: 6mm
Overall Length: 50mm
min/max: 2.5 - 10Ê
Angle: 90ûÊ
1-2 days subject to availability

10MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£10.30ex VAT £12.36 inc VAT
More Detail
SKU: 7023011040
Diameter: 10.4mm
Shank Diameter: 6mm
Flute Length: 6mm
Overall Length: 50mm
min/max: 2.5 - 10.4Ê
Angle: 90ûÊ
1-2 days subject to availability

10.4MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£10.30ex VAT £12.36 inc VAT
More Detail
SKU: 7023011150
Diameter: 11.5mm
Shank Diameter: 8mm
Flute Length: 8mm
Overall Length: 56mm
min/max: 2.8 - 11.5Ê
Angle: 90ûÊ
1-2 days subject to availability

11.5MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£10.72ex VAT £12.86 inc VAT
More Detail
SKU: 7023011240
Diameter: 12.4mm
Shank Diameter: 8mm
Flute Length: 8mm
Overall Length: 56mm
min/max: 2.8 - 12.4Ê
Angle: 90ûÊ
1-2 days subject to availability

12.4MM X 90DEG 3FLT HSS COUNTERSINK

List Price:
£10.72ex VAT £12.86 inc VAT
More Detail
SKU: 7023011500
Diameter: 15mm
Shank Diameter: 10mm
Flute Length: 10mm
Overall Length: 60mm
min/max: 3.2 - 15Ê
Angle: 90ûÊ
1-2 days subject to availability

15MM X 90DEG 3FLT HSS COUNTERSINK

List Price:
£12.10ex VAT £14.52 inc VAT
More Detail
SKU: 7023011650
Diameter: 16.5mm
Shank Diameter: 10mm
Flute Length: 10mm
Overall Length: 60mm
min/max: 3.2 - 16.5Ê
Angle: 90ûÊ
1-2 days subject to availability

16.5MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£12.10ex VAT £14.52 inc VAT
More Detail
SKU: 7023011900
Diameter: 19mm
Shank Diameter: 10mm
Flute Length: 10mm
Overall Length: 63mm
min/max: 3.5 - 19Ê
Angle: 90ûÊ
1-2 days subject to availability

19MM X 90 DEG.3FLT HSS COUNTERSINK

List Price:
£16.84ex VAT £20.21 inc VAT
More Detail
SKU: 7023012050
Diameter: 20.5mm
Shank Diameter: 10mm
Flute Length: 10mm
Overall Length: 63mm
min/max: 3.5 - 20.5Ê
Angle: 90ûÊ
1-2 days subject to availability

20.5MM X 90DEG.3FLT HSS COUNTERSINK

List Price:
£16.84ex VAT £20.21 inc VAT
More Detail
SKU: 7023012300
Diameter: 23mm
Shank Diameter: 10mm
Flute Length: 10mm
Overall Length: 67mm
min/max: 3.8 - 23Ê
Angle: 90ûÊ
1-2 days subject to availability

23MM X 90DEG.3FLT HSS COUNTERSINK

List Price:
£24.10ex VAT £28.92 inc VAT
More Detail
SKU: 7023012500
Diameter: 25mm
Shank Diameter: 10mm
Flute Length: 10mm
Overall Length: 67mm
min/max: 3.8 - 25Ê
Angle: 90ûÊ
1-2 days subject to availability

25MM X 90DEG.3FLT HSS COUNTERSINK

List Price:
£24.10ex VAT £28.92 inc VAT
More Detail
SKU: 7023013000
Diameter: 30mm
Shank Diameter: 12mm
Flute Length: 12mm
Overall Length: 71mm
min/max: 4.2 - 30Ê
Angle: 90ûÊ
1-2 days subject to availability

30MM X 90DEG.3FLT HSS COUNTERSINK

List Price:
£33.02ex VAT £39.62 inc VAT
More Detail
SKU: 7023013100
Diameter: 31mm
Shank Diameter: 12mm
Flute Length: 12mm
Overall Length: 71mm
min/max: 4.2 - 31Ê
Angle: 90ûÊ
1-2 days subject to availability

31MM X 90DEG.3FLT HSS COUNTERSINK

List Price:
£33.02ex VAT £39.62 inc VAT
More Detail
