FRANKEN Top-Cut 2698A Series 3 Flute Solid Carbide Corner Radius End Mill For Steel, Stainless Steel and Exotics

Series: 2698A

For high performance machining, we now supply Emuge-Franken milling cutters.

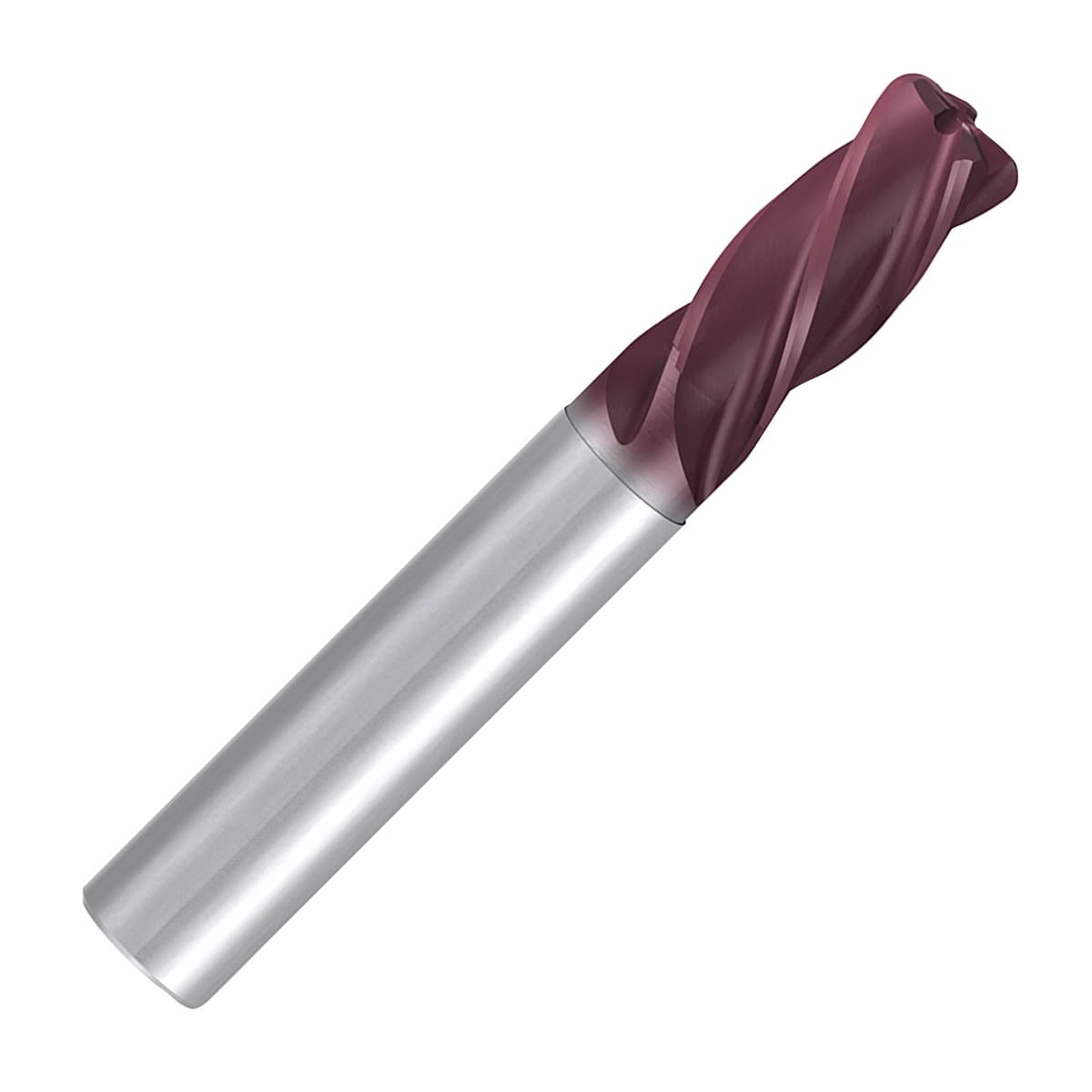

With a new developed geometry, the FRANKEN 4 Flute Solid Carbide Corner Radius End Mill "ENORM" - DIN 6527 - Long Design (SERIES 2698A) is our high performance multi-functional tool. Suitable for roughing and finishing on steel stainless titanium and much more.

Based in Germany Emuge-Franken have over 90 years experience in the development and production of premium quality products for the machining industry.

"
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 2698A.003001
Diameter: 3mm
Radius: 0.1mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 14mm
Overall Length: 57mm
Neck Dia: 2.9mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,1 / 3 mm

List Price: £27.18
SKU: 2698A.003003
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 14mm
Overall Length: 57mm
Neck Dia: 2.9mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,3 / 3 mm

List Price: £26.39
SKU: 2698A.003005
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 14mm
Overall Length: 57mm
Neck Dia: 2.9mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 3 mm

List Price: £26.39
SKU: 2698A.004001
Diameter: 4mm
Radius: 0.1mm
Shank Diameter: 6mm
Cutting Length: 11mm
Length Below Shank: 18mm
Overall Length: 57mm
Neck Dia: 3.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,1 / 4 mm

List Price: £26.85
SKU: 2698A.004003
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 11mm
Length Below Shank: 18mm
Overall Length: 57mm
Neck Dia: 3.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,3 / 4 mm

List Price: £26.06
SKU: 2698A.004004
Diameter: 4mm
Radius: 0.4mm
Shank Diameter: 6mm
Cutting Length: 11mm
Length Below Shank: 18mm
Overall Length: 57mm
Neck Dia: 3.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,4 / 4 mm

List Price: £26.06
SKU: 2698A.004005
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 11mm
Length Below Shank: 18mm
Overall Length: 57mm
Neck Dia: 3.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 4 mm

List Price: £26.06
SKU: 2698A.005001
Diameter: 5mm
Radius: 0.1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 19mm
Overall Length: 57mm
Neck Dia: 4.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,1 / 5 mm

List Price: £26.39
SKU: 2698A.005003
Diameter: 5mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 19mm
Overall Length: 57mm
Neck Dia: 4.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,3 / 5 mm

List Price: £25.72
SKU: 2698A.005005
Diameter: 5mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 19mm
Overall Length: 57mm
Neck Dia: 4.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 5 mm

List Price: £25.72
SKU: 2698A.005010
Diameter: 5mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 19mm
Overall Length: 57mm
Neck Dia: 4.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 5 mm

List Price: £25.72
SKU: 2698A.006001
Diameter: 6mm
Radius: 0.1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,1 / 6 mm

List Price: £24.92
SKU: 2698A.006005
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 6 mm

List Price: £23.69
SKU: 2698A.006010
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 6 mm

List Price: £23.69
SKU: 2698A.006015
Diameter: 6mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.8mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,5 / 6 mm

List Price: £25.72
SKU: 2698A.008001
Diameter: 8mm
Radius: 0.15mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,15 / 8 mm

List Price: £35.99
SKU: 2698A.008005
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 8 mm

List Price: £34.86
SKU: 2698A.008010
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 8 mm

List Price: £34.86
SKU: 2698A.008015
Diameter: 8mm
Radius: 1.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,5 / 8 mm

List Price: £36.32
SKU: 2698A.008020
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,0 / 8 mm

List Price: £36.32
SKU: 2698A.010001
Diameter: 10mm
Radius: 0.15mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,15 / 10 mm

List Price: £45.46
SKU: 2698A.010005
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 10 mm

List Price: £44.79
SKU: 2698A.010010
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 10 mm

List Price: £44.79
SKU: 2698A.010015
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,5 / 10 mm

List Price: £45.46
SKU: 2698A.010020
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,0 / 10 mm

List Price: £45.46
SKU: 2698A.010025
Diameter: 10mm
Radius: 2.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,5 / 10 mm

List Price: £45.46
SKU: 2698A.010030
Diameter: 10mm
Radius: 3mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm

In Stock


subject to

availability

TOP-CUT HM-Schaftfrõser"ENORM" lang TypN TIALN R 3,0 / 10 mm

List Price: £46.63
SKU: 2698A.012002
Diameter: 12mm
Radius: 0.2mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,2 / 12 mm

List Price: £60.35
SKU: 2698A.012005
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 12 mm

List Price: £59.56
SKU: 2698A.012010
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm
In Stock

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 12 mm

List Price: £59.56
SKU: 2698A.012015
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,5 / 12 mm

List Price: £60.35
SKU: 2698A.012020
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,0 / 12 mm

List Price: £60.35
SKU: 2698A.012025

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,5 / 12 mm

List Price: £60.35
SKU: 2698A.012030
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 3,0 / 12 mm

List Price: £61.14
SKU: 2698A.012040

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 4,0 / 12 mm

List Price: £61.14
SKU: 2698A.014010
Diameter: 14mm
Radius: 1mm
Shank Diameter: 14mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 13.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 14 mm

List Price: £72.65
SKU: 2698A.016003
Diameter: 16mm
Radius: 0.3mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,3 / 16 mm

List Price: £95.54
SKU: 2698A.016005
Diameter: 16mm
Radius: 0.5mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 16 mm

List Price: £94.30
SKU: 2698A.016010
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 16 mm

List Price: £94.30
SKU: 2698A.016015
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,5 / 16 mm

List Price: £95.09
SKU: 2698A.016020
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,0 / 16 mm

List Price: £95.09
SKU: 2698A.016025

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,5 / 16 mm

List Price: £95.09
SKU: 2698A.016030
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 3,0 / 16 mm

List Price: £95.89
SKU: 2698A.016040
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 4,0 / 16 mm

List Price: £97.57
SKU: 2698A.020003
Diameter: 20mm
Radius: 0.3mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,3 / 20 mm

List Price: £141.68
SKU: 2698A.020005
Diameter: 20mm
Radius: 0.5mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 0,5 / 20 mm

List Price: £140.33
SKU: 2698A.020010
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,0 / 20 mm

List Price: £140.33
SKU: 2698A.020015
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 1,5 / 20 mm

List Price: £141.22
SKU: 2698A.020020
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,0 / 20 mm

List Price: £141.22
SKU: 2698A.020025

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 2,5 / 20 mm

List Price: £141.22
SKU: 2698A.020030
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 3,0 / 20 mm

List Price: £143.48
SKU: 2698A.020040

In Stock


subject to

availability

Carbide End Mill TOP-CUT "ENORM" long typeN TIALN R 4,0 / 20 mm

List Price: £143.48
