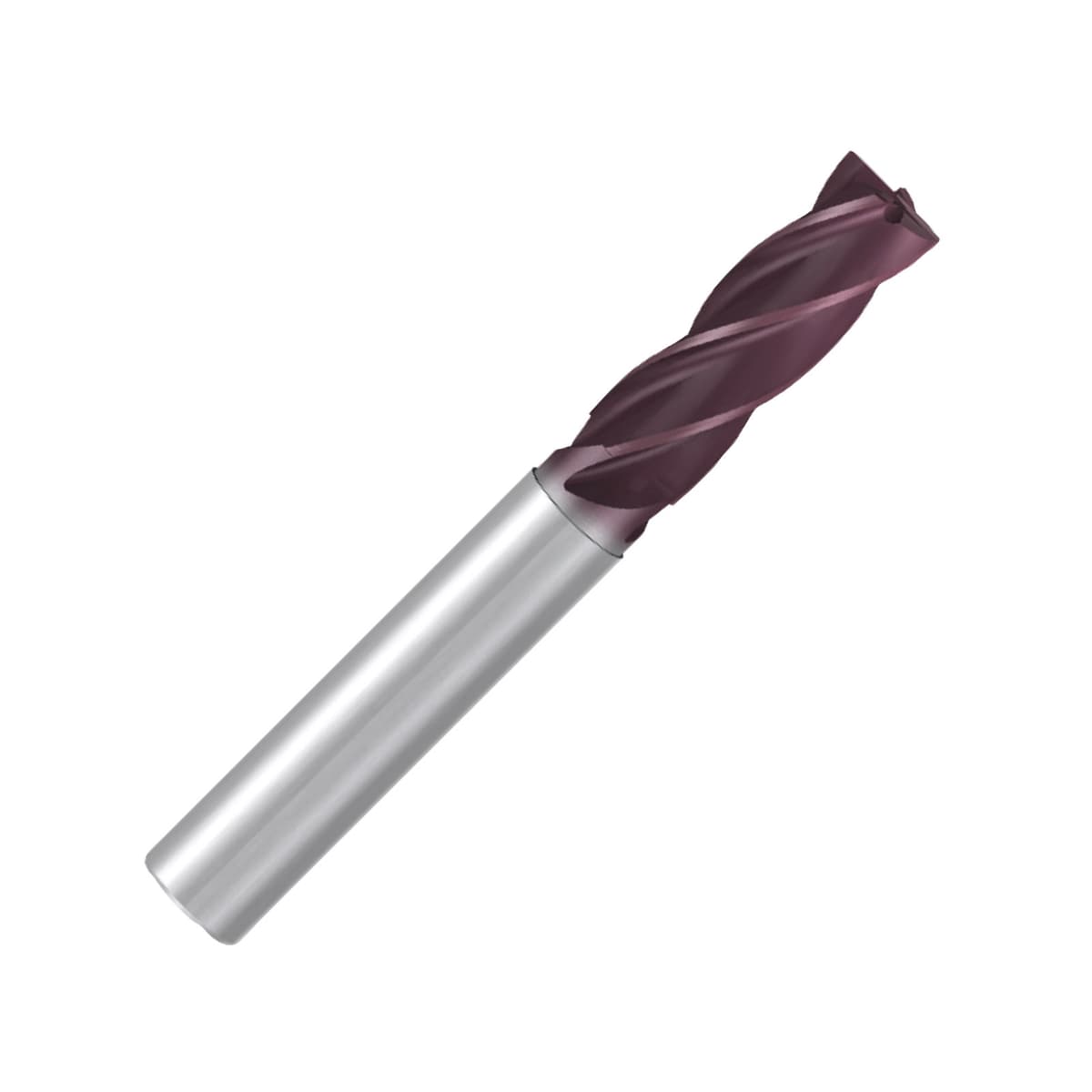

  1. FRANKEN Top-Cut 2526A Series 4 Flute 3xD Extra Long Length End Mill For Steel, Stainless Steel and Exotics
2526A.
2526A.

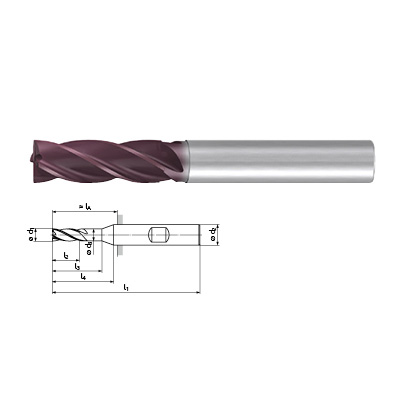

FRANKEN Top-Cut 2526A Series 4 Flute 3xD Extra Long Length End Mill For Steel, Stainless Steel and Exotics Technical Drawing.

FRANKEN Top-Cut 2526A Series 4 Flute 3xD Extra Long Length End Mill For Steel, Stainless Steel and Exotics

Series: 2526A
2526A
PDF of product technical data.2526a-cutting-data.pdf
View Products
Description
D1
D2
L1
L3
L2
Diameter
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 2526A.003
Diameter: 3mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 12mm
Overall Length: 62mm
Neck Dia: 2.9mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 3,0 mm

List Price: £27.95
More Detail
SKU: 2526A.004
Diameter: 4mm
Shank Diameter: 6mm
Cutting Length: 12mm
Length Below Shank: 16mm
Overall Length: 62mm
Neck Dia: 3.8mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 4,0 mm

List Price: £29.44
More Detail
SKU: 2526A.005
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 15mm
Length Below Shank: 20mm
Overall Length: 62mm
Neck Dia: 4.8mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 5,0 mm

List Price: £31.93
More Detail
SKU: 2526A.006
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 18mm
Length Below Shank: 25mm
Overall Length: 62mm
Neck Dia: 5.8mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 6,0 mm

List Price: £27.42
More Detail
SKU: 2526A.008
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 24mm
Length Below Shank: 30mm
Overall Length: 68mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 8,0 mm

List Price: £41.85
More Detail
SKU: 2526A.010
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 30mm
Length Below Shank: 35mm
Overall Length: 80mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 10,0 mm

List Price: £55.84
More Detail
SKU: 2526A.012
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 36mm
Length Below Shank: 45mm
Overall Length: 93mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 12,0 mm

List Price: £80.20
More Detail
SKU: 2526A.016
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 48mm
Length Below Shank: 60mm
Overall Length: 112mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 16,0 mm

List Price: £147.78
More Detail
SKU: 2526A.020
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 60mm
Length Below Shank: 75mm
Overall Length: 130mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide end mill TOP-Cut "ENORM" extra long typeN TIALN 20,0 mm

List Price: £235.87
More Detail
