Image of FRANKEN Top-Cut 2502A Series 3 & 4 Flute Ball Nose Long Length End Mill..
Image of FRANKEN Top-Cut 2502A Series 3 & 4 Flute Ball Nose Long Length End Mill..
.

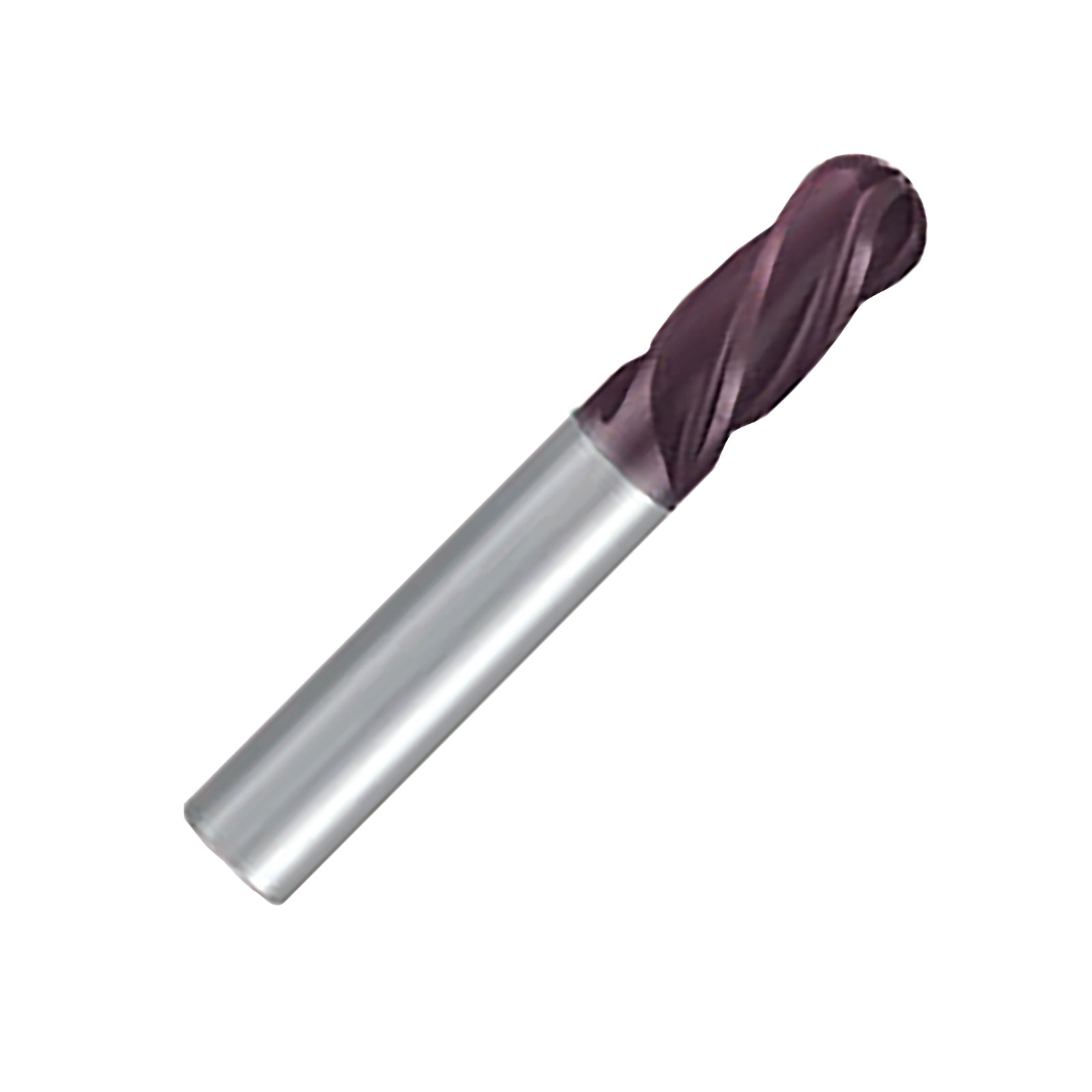

FRANKEN Top-Cut High Performance Ball Nosed End Mill

Series: 2502A
Starting From:
£28.28excl VAT£33.936 incl. VAT

View Product Variants Table

FRANKEN Top-Cut High Performance Ball Nosed End Mill

...read more
Description

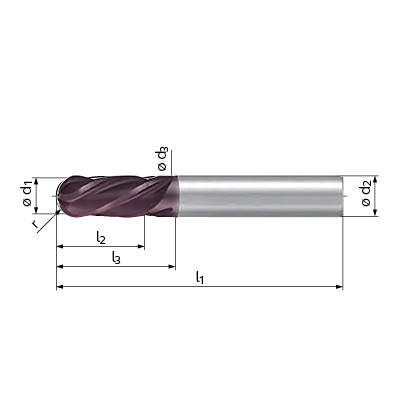

D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
No Flutes
Price
(ex vat)
Diameter: 2mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 10mm
Overall Length: 57mm
Neck Dia: 1.9mm
No Flutes: 3
£30.70
In Stock Get it on Wed, 10th Aug
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 14mm
Overall Length: 57mm
Neck Dia: 2.9mm
No Flutes: 3
£30.70
In Stock Get it on Wed, 10th Aug
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 11mm
Length Below Shank: 18mm
Overall Length: 57mm
Neck Dia: 3.8mm
No Flutes: 3
£30.11
In Stock Get it on Wed, 10th Aug
Diameter: 5mm
Radius: 2.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 19mm
Overall Length: 57mm
Neck Dia: 4.8mm
No Flutes: 3
£29.44
In Stock Get it on Wed, 10th Aug
Diameter: 6mm
Radius: 3mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.8mm
No Flutes: 4
£29.13
In Stock Get it on Wed, 10th Aug
Diameter: 8mm
Radius: 4mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.7mm
No Flutes: 4
£36.11
In Stock Get it on Wed, 10th Aug
Diameter: 10mm
Radius: 5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.5mm
No Flutes: 4
£56.69
In Stock Get it on Wed, 10th Aug
Diameter: 12mm
Radius: 6mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11.5mm
No Flutes: 4
£77.28
In Stock Get it on Wed, 10th Aug
£77.62
In Stock Get it on Wed, 10th Aug
Diameter: 16mm
Radius: 8mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 15.5mm
No Flutes: 4
£137.97
In Stock Get it on Wed, 10th Aug

Product Information

FRANKEN Top-Cut High Performance Ball Nosed End Mill

  • Solid micrograin carbide
  • TiALN coated
  • Centre cutting
  • Variable helix geometry
  • Rough and finish with 1 tool
  • Suitable for steel, stainless steel, cast iron, titanium and HRSA

This is our high performance, multi-functional tool. Suitable for roughing and finishing on steel, stainless, titanium and much more.

Based in Germany, Emuge-Franken have over 90 years experience in the development and production of premium quality products for the machining industry.

Specifications

Category:Milling Cutters
Category:Milling Tools
Application:Variable Helix
Application:Steel
Application:Stainless Steel
Application:Cast Iron
Application:Heat-Resistant Super Alloys
Brand:Emuge-Franken
No. Flutes:4 Flute
Profile:Ball Nose
Length:Long Length
Range:Top-Cut
