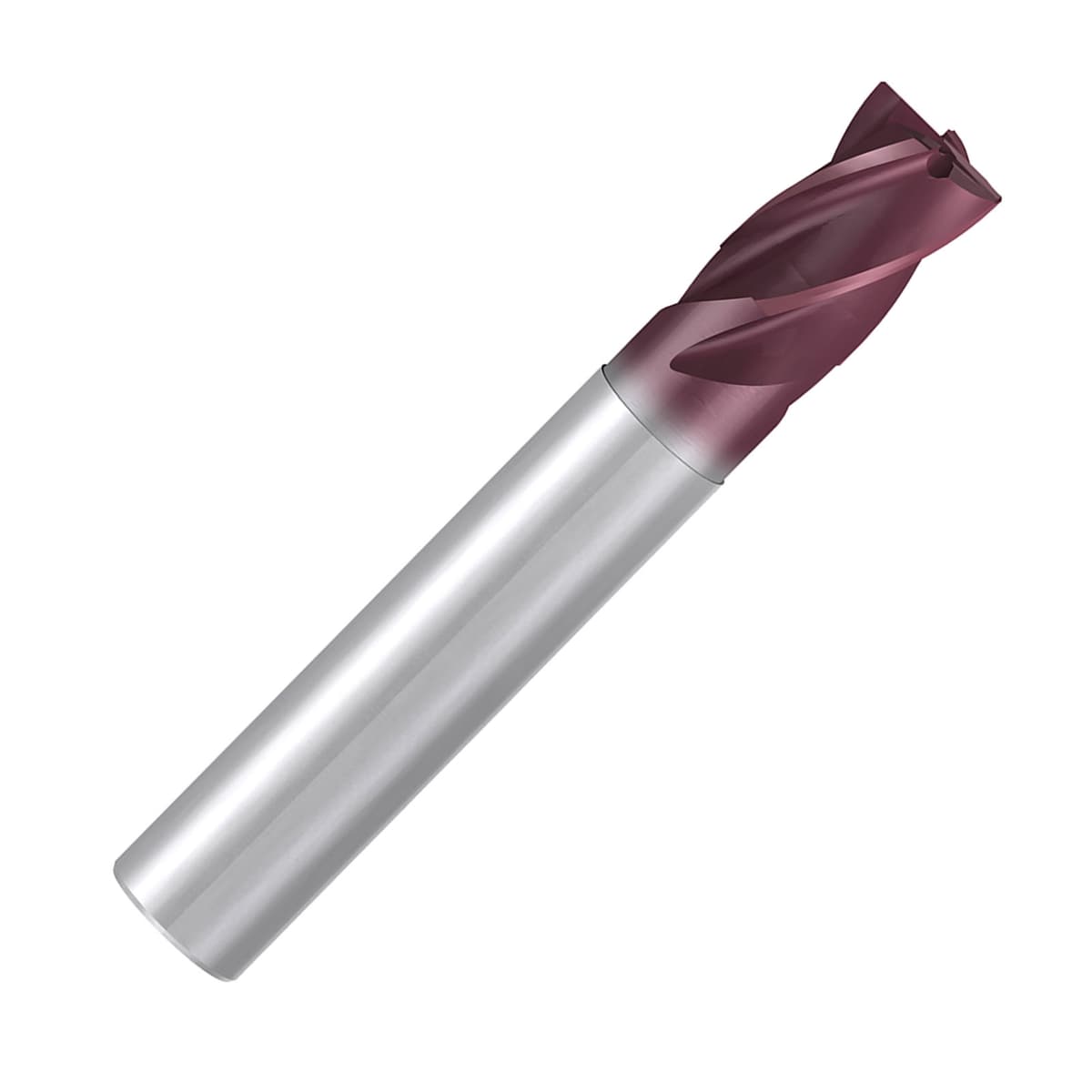

Image of FRANKEN Top-Cut 1916A Series 4 Flute Plain Shank End Mill For Steel, Stainless Steel and Exotics..
Image of FRANKEN Top-Cut 1916A Series 4 Flute Plain Shank End Mill For Steel, Stainless Steel and Exotics..
.

FRANKEN Top-Cut 1916A Series 4 Flute Plain Shank End Mill For Steel, Stainless Steel and Exotics

Series: 1916A

For high performance machining, we now supply Emuge-Franken milling cutters.

With a new developed geometry, the FRANKEN 4 Flute Plain Shank End Mill Short Design (1916A) is our high performance, multi-functional tool. Suitable for roughing and finishing on steel, stainless, titanium and much more.

Based in Germany, Emuge-Franken have over 90 years experience in the development and production of premium quality products for the machining industry.

Description
D1
D2
L1
L3
L2
Diameter
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1916A.003
Diameter: 3mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 9mm
Overall Length: 50mm
Neck Dia: 2.9mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 3,0 mm

List Price: £19.85
SKU: 1916A.004
Diameter: 4mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 12mm
Overall Length: 54mm
Neck Dia: 3.8mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 4,0 mm

List Price: £19.52
SKU: 1916A.005
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 16mm
Overall Length: 54mm
Neck Dia: 4.8mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 5,0 mm

List Price: £19.52
SKU: 1916A.006
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 16mm
Overall Length: 54mm
Neck Dia: 5.8mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 6,0 mm

List Price: £18.38
SKU: 1916A.008
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 58mm
Neck Dia: 7.7mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 8,0 mm

List Price: £27.53
SKU: 1916A.010
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 24mm
Overall Length: 66mm
Neck Dia: 9.5mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 10,0 mm

List Price: £36.32
SKU: 1916A.012
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 26mm
Overall Length: 73mm
Neck Dia: 11.5mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 12,0 mm

List Price: £49.30
SKU: 1916A.016
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 32mm
Overall Length: 82mm
Neck Dia: 15.5mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 16,0 mm

List Price: £78.05
SKU: 1916A.018
Diameter: 18mm
Shank Diameter: 18mm
Cutting Length: 27mm
Length Below Shank: 34mm
Overall Length: 84mm
Neck Dia: 17.5mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 18,0 mm

List Price: £101.86
SKU: 1916A.020
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 30mm
Length Below Shank: 40mm
Overall Length: 92mm
Neck Dia: 19.5mm

In Stock


subject to

availability

Carbide end mill TOP-CUT "ENORM" short typeN TIALN 20,0 mm

List Price: £121.15
