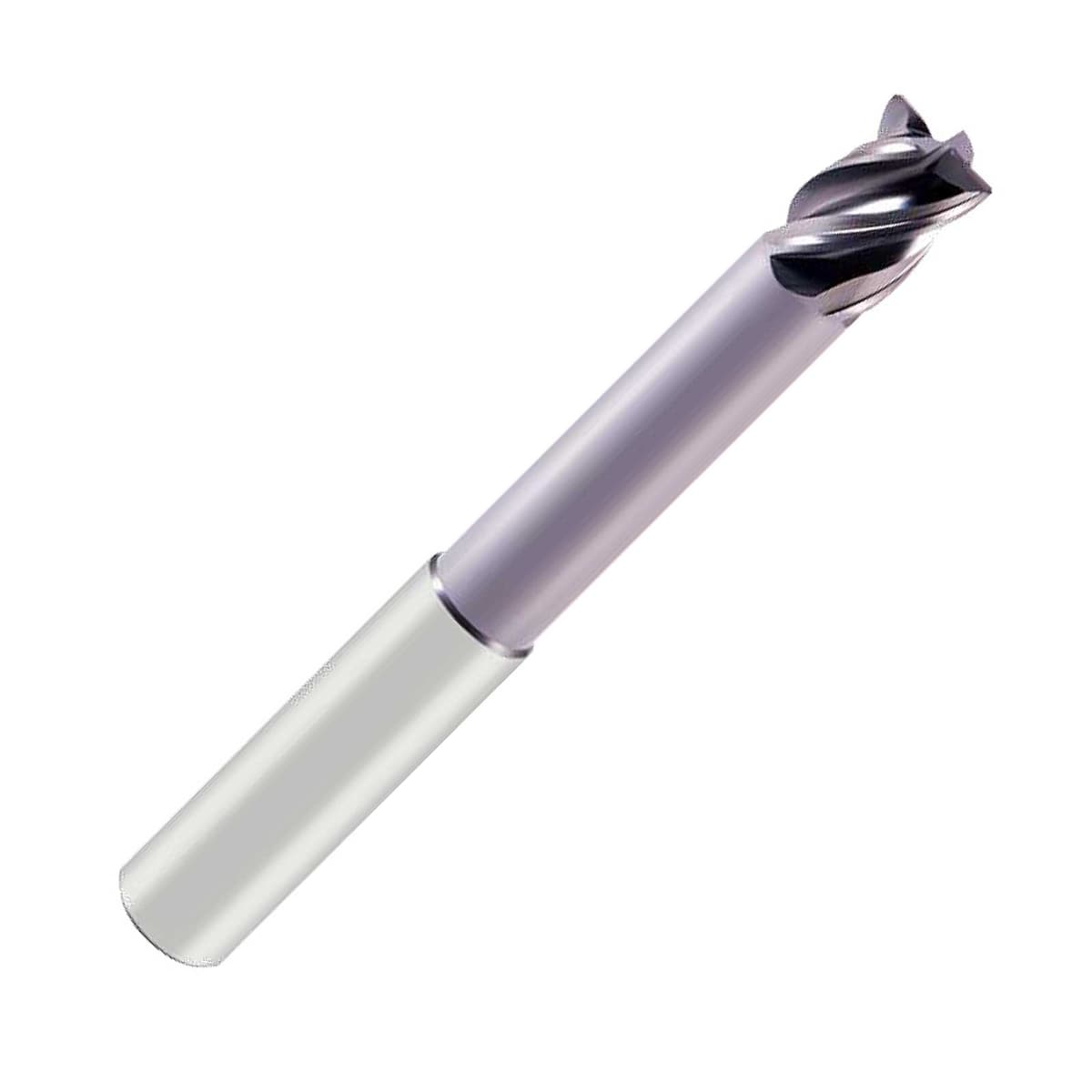

MasterMill VX Series 4 Flute Long Length High Performance Necked End Mill
Series: 177323£21.86 excl. VAT
£26.23 incl. VAT
- Solid micrograin carbide
- Necked design
- Chamfered for corner protection
- Minimized tool deflection
- Reduced tool vibration
- Multi layer VX coating
- Variable helix geometry
- Suitable for high perfromance machining of Steel, Stainless steel, Titanium and nickel alloy
Downloads
| 177323-cutting-data.pdf |
Have a query?
Speak to one of our advisers today for expert advise.
Description | Diameter / D1 | Shank Diameter / D2 | Cutting Length / L1 | Overall Length / L2 | Length Below Shank / L3 | Chamfer / C1 | Neck Dia | Price |
|---|---|---|---|---|---|---|---|---|
| 1773230300 | 3mm | 6mm | 6mm | 57mm | 17mm | 0.1mm | 2.7mm | |
| 1773230400 | 4mm | 8mm | 8mm | 62mm | 22mm | 0.15mm | 3.7mm | |
| 1773230500 | 5mm | 10mm | 10mm | 65mm | 27mm | 0.15mm | 4.7mm | |
| 1773230600 | 6mm | 10mm | 10mm | 68mm | 32mm | 0.2mm | 5.5mm | |
| 1773230800 | 8mm | 12mm | 12mm | 82mm | 46mm | 0.2mm | 7.5mm | |
| 1773231000 | 10mm | 14mm | 14mm | 72mm | 32mm | 0.3mm | 9.2mm | |
| 1773231200 | 12mm | 16mm | 16mm | 83mm | 38mm | 0.35mm | 11mm | |
| 1773231600 | 16mm | 22mm | 22mm | 92mm | 44mm | 0.4mm | 15mm | |
| 1773232000 | 20mm | 28mm | 28mm | 104mm | 54mm | 0.5mm | 19mm | |
| 1773239001 | 10mm | 14mm | 14mm | 100mm | 55mm | 0.3mm | 9.2mm | |
| 1773239002 | 12mm | 16mm | 16mm | 108mm | 64mm | 0.35mm | 11mm | |
| 1773239003 | 16mm | 22mm | 22mm | 108mm | 60mm | 0.4mm | 15mm | |
| 1773239004 | 16mm | 22mm | 22mm | 135mm | 87mm | 0.4mm | 15mm | |
| 1773239005 | 20mm | 28mm | 28mm | 125mm | 75mm | 0.5mm | 19mm | |
| 1773239006 | 20mm | 28mm | 28mm | 160mm | 110mm | 0.5mm | 19mm |
Product Information
- Solid micrograin carbide
- Necked design
- Chamfered for corner protection
- Minimized tool deflection
- Reduced tool vibration
- Multi layer VX coating
- Variable helix geometry
- Suitable for high perfromance machining of Steel, Stainless steel, Titanium and nickel alloy
High performance for multiple materials Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum
Specifications
| Category: | Milling Cutters |
| Application: | Variable Helix |
| Range: | Mastermill |
| Brand: | Europa Tool |
| No. Flutes: | 4 Flute |
| Profile: | Square |
| Length: | Standard Length |
| Category: | Milling Tools |
| Application: | Steel |
| Application: | Stainless Steel |
| Application: | Cast Iron |
| Application: | Heat-Resistant Super Alloys |
| Substrate: | Carbide |
