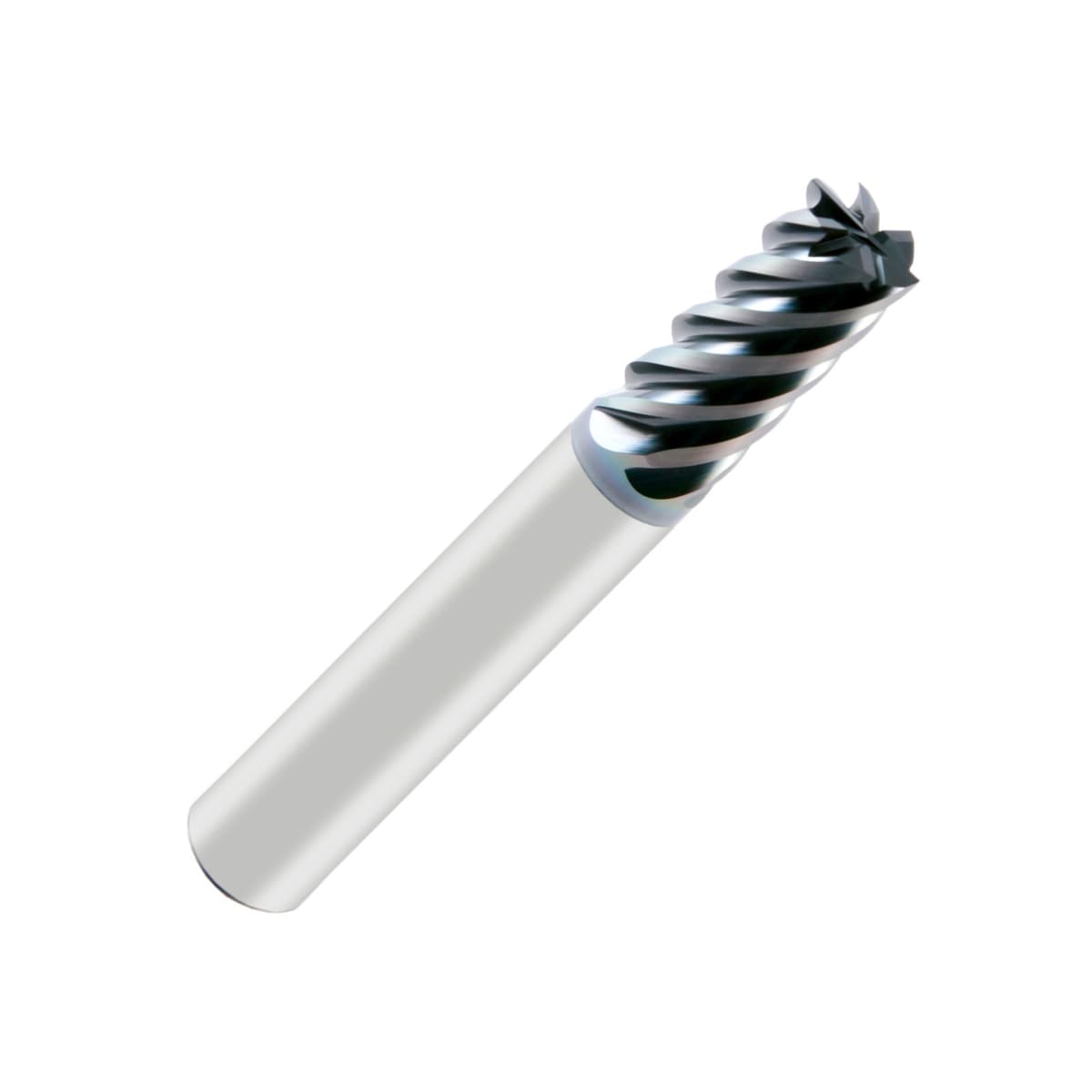

Mastermill 174329 Series 6 Flute VX Coated Carbide Variable Helix End Mill

Series: 174329

High performance for multiple materials: Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum.

VX four flute tools offer a high performance metal removal rate with secure, chatter-free machining. VXD double core and VX5 five flute tools give exceptional performance in Titanium, Inconel and other HRSA materials, whilst VX6 six flute tools have been optimised for trochoidal milling. All tools have a unique flute geometry with advanced VX coating for long tool life, and offer a high degree of process reliability. The tools in this section are suitable for Steel, Stainless Steel, Cast Iron and Heat Resistant Super Alloys (HRSA).

MastermillÕs VX coating has been engineered to provide exceptional tool life in both easy and difficult to machine materials, making the tools ideal for todayÕs machine shop

. Features:
  • Multilayer coating
  • Coating hardness: 35-40 GPa
  • Hot hardness: >1100¼C
  • Allows tools to be used for heavy and light cuts
  • Multiple material application
  • VX6 STANDARD LENGTH
  • Unequal index and unique geometry optimised for high speed and trochoidal milling
  • 90¼ corner with edge preparation for corner protection.
Description
D1
D2
L1
L2
Diameter
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: 1743290600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm

1-2 days
subject to

availability


subject to

availability

6mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £19.51
SKU: 1743290800
Diameter: 8mm
Shank Diameter: 8mm
Overall Length: 63mm
Cutting Length: 19mm

1-2 days
subject to

availability


subject to

availability

8mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £27.54
SKU: 1743291000
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm

1-2 days
subject to

availability


subject to

availability

10mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £44.02
SKU: 1743291200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £60.10
SKU: 1743291600
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £113.05
SKU: 1743292000
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £200.34
SKU: 1743292500
Shank Diameter: 25mm
Diameter: 25mm
Overall Length: 104mm
Cutting Length: 44mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL-VX 6FL 45 DEG HELIX EM

List Price: £281.97
