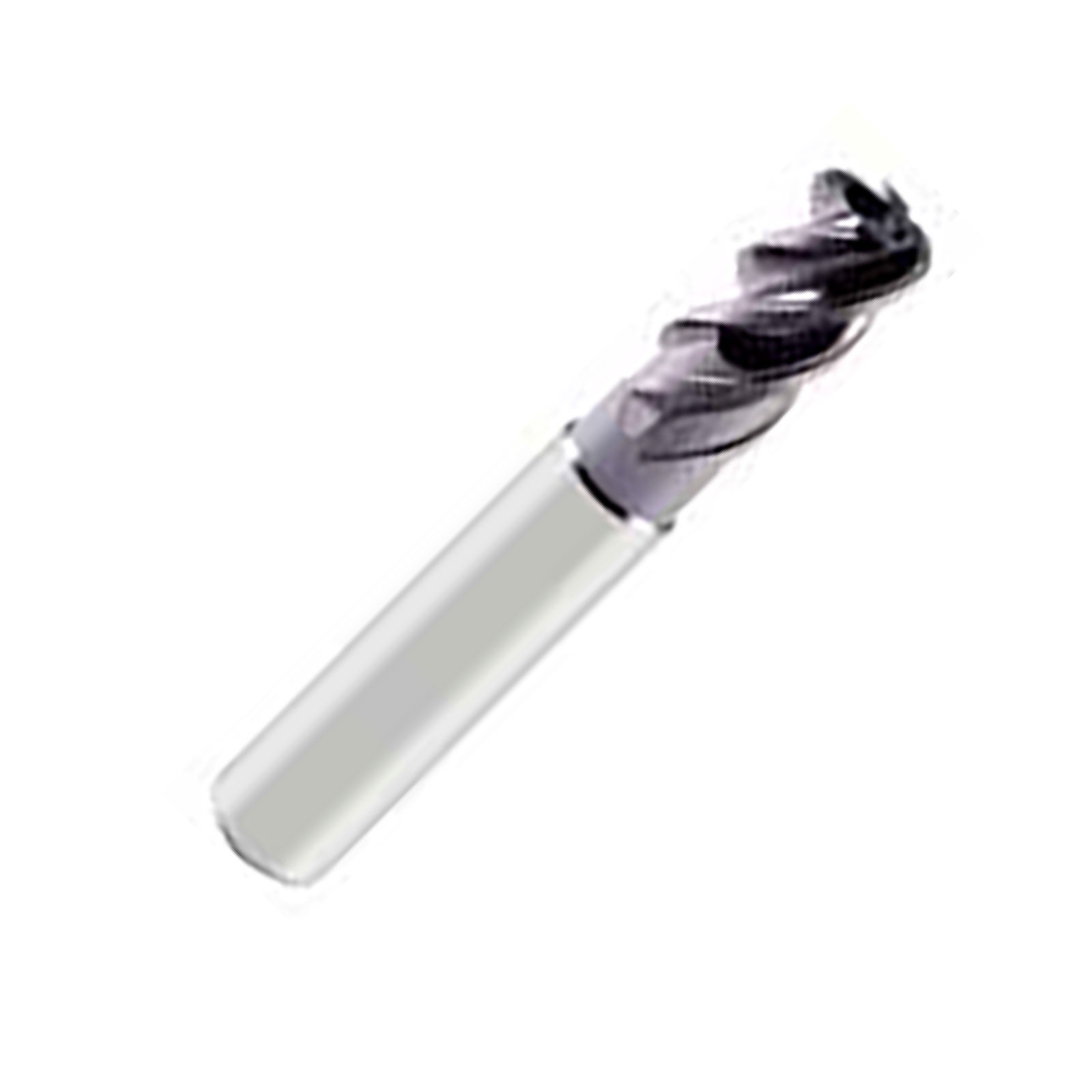

Mastermill 170323 Series 4 Flute VX Coated Carbide Variable Helix Corner Radius End Mill

Series: 170323

High performance for multiple materials: Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum.

VX four flute tools offer a high performance metal removal rate with secure, chatter-free machining. VXD double core and VX5 five flute tools give exceptional performance in Titanium, Inconel and other HRSA materials, whilst VX6 six flute tools have been optimised for trochoidal milling. All tools have a unique flute geometry with advanced VX coating for long tool life, and offer a high degree of process reliability. The tools in this section are suitable for Steel, Stainless Steel, Cast Iron and Heat Resistant Super Alloys (HRSA).

MastermillÕs VX coating has been engineered to provide exceptional tool life in both easy and difficult to machine materials, making the tools ideal for todayÕs machine shop

. Features:
  • Multilayer coating
  • Coating hardness: 35-40 GPa
  • Hot hardness: >1100¼C
  • Allows tools to be used for heavy and light cuts
  • Multiple material application
  • VXD DOUBLE CORE
  • Double core geometry reduces tool deflection and improves dimensional stability
  • Optimized edge preparation protects against chipping problems in high speed machining
Description
Deals

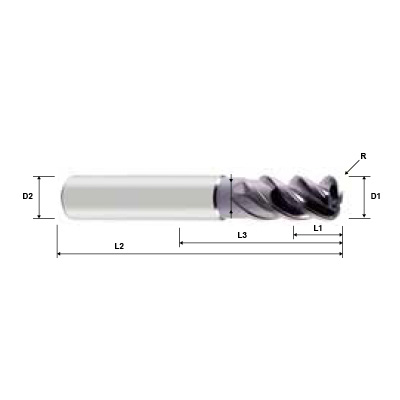

D1
R
D2
L1
L3
L2
Deals
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1703230600
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm MASTERMILL-VXD 4FL DC CR E/M R0.5

List Price: £26.23
SKU: 1703230800
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8mm MASTERMILL-VXD 4FL DC CR E/M R0.5

List Price: £36.41
SKU: 1703231000
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10mm MASTERMILL-VXD 4FL DC CR E/M R0.5

List Price: £57.47
SKU: 1703231200
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12mm MASTERMILL-VXD 4FL DC CR E/M R0.5

List Price: £78.36
SKU: 1703231400
Diameter: 14mm
Radius: 1mm
Shank Diameter: 14mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 13mm

1-2 days
subject to

availability

14mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £107.75
SKU: 1703231600
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 35mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £135.67
SKU: 1703232000
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 44mm
Length Below Shank: 56mm
Overall Length: 110mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £255.12
SKU: 1703232500
Diameter: 25mm
Radius: 1mm
Shank Diameter: 25mm
Cutting Length: 55mm
Length Below Shank: 70mm
Overall Length: 130mm
Neck Dia: 24mm

1-2 days
subject to

availability

25mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £358.97
SKU: 1703239001
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £26.23
SKU: 1703239002
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £36.41
SKU: 1703239003
Diameter: 8mm
Radius: 1.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8mm MASTERMILL-VXD 4FL DC CR E/M R1.5

List Price: £36.41
SKU: 1703239004
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: 25mm
Overall Length: 63mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £36.41
SKU: 1703239005
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10mm MASTERMILL-VXD 4FL DC CR E/M R1

List Price: £57.47
SKU: 1703239006
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10mm MASTERMILL-VXD 4FL DC CR E/M R1.5

List Price: £57.47
SKU: 1703239007
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £57.47
SKU: 1703239008
Deals: Clearance
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11mm
In Stock

12MM X1MM RAD 4 FLUTE DOUBLE CORE END MILL

List Price: £78.36
Offer Price: £43.92!
SKU: 1703239009
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12mm MASTERMILL-VXD 4FL DC CR E/M R1.5

List Price: £78.36
SKU: 1703239010
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £78.36
SKU: 1703239011
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12mm MASTERMILL-VXD 4FL DC CR E/M R3

List Price: £78.36
SKU: 1703239012
Diameter: 14mm
Radius: 2mm
Shank Diameter: 14mm
Cutting Length: 26mm
Length Below Shank: 35mm
Overall Length: 83mm
Neck Dia: 13mm

1-2 days
subject to

availability

14mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £107.75
SKU: 1703239013
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 35mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16mm MASTERMILL-VXD 4FL DC CR E/M R1.5

List Price: £135.67
SKU: 1703239014
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 35mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £135.67
SKU: 1703239015
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 35mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16mm MASTERMILL-VXD 4FL DC CR E/M R3

List Price: £135.67
SKU: 1703239016
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 35mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16mm MASTERMILL-VXD 4FL DC CR E/M R4

List Price: £135.67
SKU: 1703239017
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Length Below Shank: 56mm
Overall Length: 110mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm MASTERMILL-VXD 4FL DC CR E/M R1.5

List Price: £255.12
SKU: 1703239018
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 44mm
Length Below Shank: 56mm
Overall Length: 110mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £255.12
SKU: 1703239019
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 44mm
Length Below Shank: 56mm
Overall Length: 110mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm MASTERMILL-VXD 4FL DC CR E/M R3

List Price: £255.12
SKU: 1703239020
Diameter: 20mm
Radius: 3.5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Length Below Shank: 56mm
Overall Length: 110mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm MASTERMILL-VXD 4FL DC CR E/M R3.5

List Price: £255.12
SKU: 1703239021
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 44mm
Length Below Shank: 56mm
Overall Length: 110mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm MASTERMILL-VXD 4FL DC CR E/M R4

List Price: £255.12
SKU: 1703239022
Diameter: 25mm
Radius: 1.5mm
Shank Diameter: 25mm
Cutting Length: 55mm
Length Below Shank: 70mm
Overall Length: 130mm
Neck Dia: 24mm

1-2 days
subject to

availability

25mm MASTERMILL-VXD 4FL DC CR E/M R1.5

List Price: £358.97
SKU: 1703239023
Diameter: 25mm
Radius: 2mm
Shank Diameter: 25mm
Cutting Length: 55mm
Length Below Shank: 70mm
Overall Length: 130mm
Neck Dia: 24mm

1-2 days
subject to

availability

25mm MASTERMILL-VXD 4FL DC CR E/M R2

List Price: £358.97
SKU: 1703239024
Diameter: 25mm
Radius: 3mm
Shank Diameter: 25mm
Cutting Length: 55mm
Length Below Shank: 70mm
Overall Length: 130mm
Neck Dia: 24mm

1-2 days
subject to

availability

25mm MASTERMILL-VXD 4FL DC CR E/M R3

List Price: £358.97
SKU: 1703239025
Diameter: 25mm
Radius: 4mm
Shank Diameter: 25mm
Cutting Length: 55mm
Length Below Shank: 70mm
Overall Length: 130mm
Neck Dia: 24mm

1-2 days
subject to

availability

25mm MASTERMILL-VXD 4FL DC CR E/M R4

List Price: £358.97
