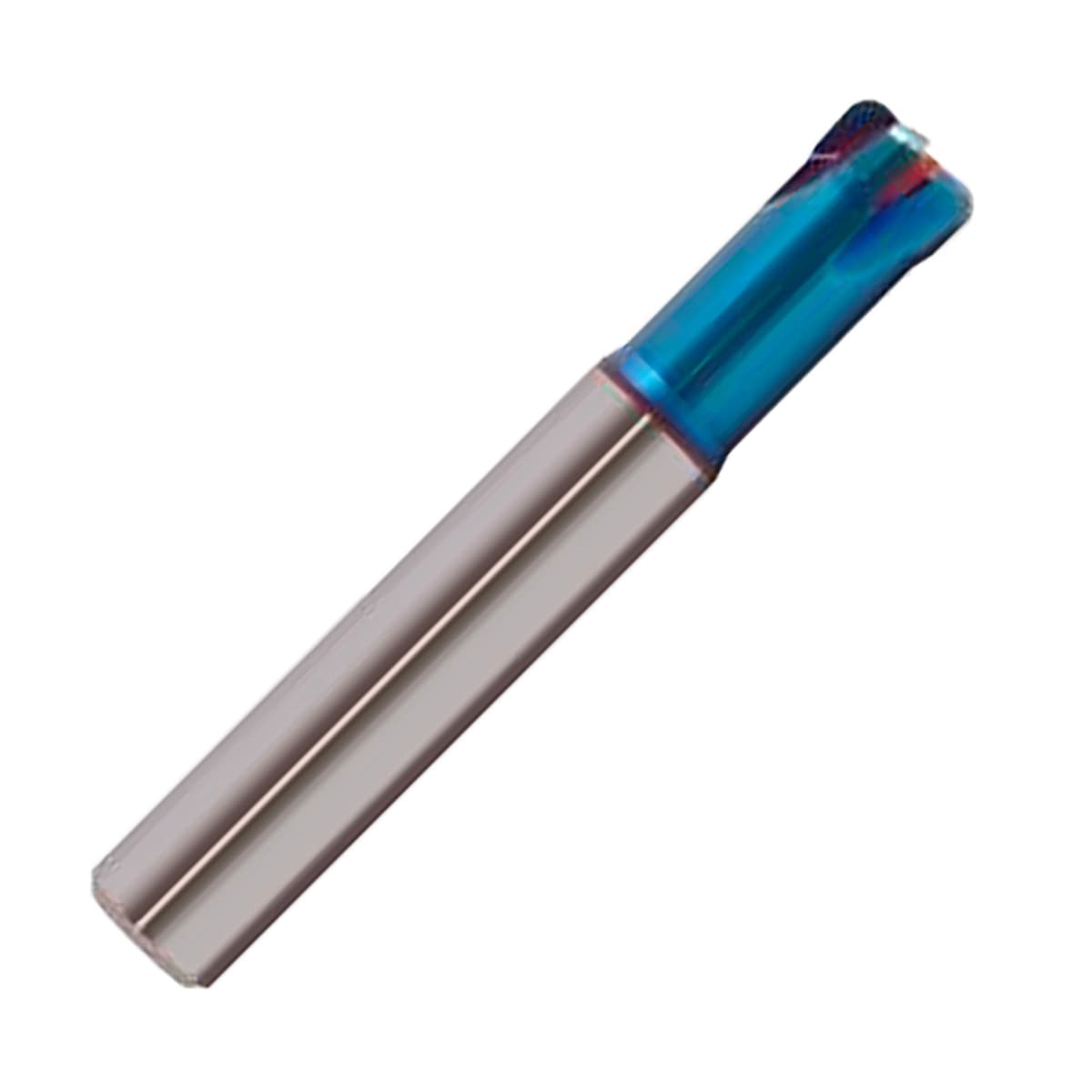

Pulsar Blue 110350 Series 4 Flute High Feed Corner Radius Short Length End Mill..
Pulsar Blue 110350 Series 4 Flute High Feed Corner Radius Short Length End Mill..
Pulsar Blue 110350 Series 4 Flute High Feed Corner Radius Short Length End Mill Technical Drawing..

Pulsar Blue 110350 Series 4 Flute High Feed Corner Radius Short Length End Mill for Hardened Steel

Series: 110350
Starting From:
£29.87excl VAT£35.84 incl. VAT

View Product Variants Table

Designed specifically for machining high hardened materials - excellent on hardened alloy and tempered steels in excess of 38 HRC, suitable for alloy steels and plain tempered carbon steels.

Features: • Excellent wear resistance at heavy feed rates on high hardened material. • Designed with reduced clearance angles and short flutes for strength. • High hardness & heat resistant coating for long life in dry applications.

Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1103500200
Diameter: 2mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 1mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.8mm
1-2 days subject to availability

2MMXR0.5 HIGH FEED PULSAR BLUE

List Price:
£29.87ex VAT £35.84 inc VAT
SKU: 1103500300
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 1.2mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 2.8mm
1-2 days subject to availability

3MMXR0.5 HIGH FEED PULSAR BLUE

List Price:
£29.87ex VAT £35.84 inc VAT
SKU: 1103500400
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 1.5mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 3.8mm
1-2 days subject to availability

4MMXR0.5 HIGH FEED PULSAR BLUE

List Price:
£29.87ex VAT £35.84 inc VAT
SKU: 1103500600
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 2.5mm
Length Below Shank: 12mm
Overall Length: 60mm
Neck Dia: 5.4mm
1-2 days subject to availability

6MMXR0.5 HIGH FEED PULSAR BLUE

List Price:
£29.87ex VAT £35.84 inc VAT
SKU: 1103500601
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 2.5mm
Length Below Shank: 12mm
Overall Length: 60mm
Neck Dia: 5.4mm
1-2 days subject to availability

6MMXR1.0 HIGH FEED PULSAR BLUE

List Price:
£29.87ex VAT £35.84 inc VAT
SKU: 1103500800
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 3.5mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 7.2mm
1-2 days subject to availability

8MMXR1.0 HIGH FEED PULSAR BLUE

List Price:
£38.19ex VAT £45.83 inc VAT
SKU: 1103500802
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 3.5mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 7.2mm
1-2 days subject to availability

8MMXR2.0 HIGH FEED PULSAR BLUE

List Price:
£38.19ex VAT £45.83 inc VAT
SKU: 1103501000
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 4mm
Length Below Shank: 20mm
Overall Length: 70mm
Neck Dia: 9mm
1-2 days subject to availability

10MMXR1.0 HIGH FEED PULSAR BLUE

List Price:
£57.01ex VAT £68.41 inc VAT
SKU: 1103501002
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 4mm
Length Below Shank: 20mm
Overall Length: 70mm
Neck Dia: 9mm
1-2 days subject to availability

10MMXR2.0 HIGH FEED PULSAR BLUE

List Price:
£57.01ex VAT £68.41 inc VAT
SKU: 1103501200
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 5mm
Length Below Shank: 25mm
Overall Length: 80mm
Neck Dia: 11mm
1-2 days subject to availability

12MMXR2.0 HIGH FEED PULSAR BLUE

List Price:
£78.70ex VAT £94.44 inc VAT
SKU: 1103501203
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 5mm
Length Below Shank: 25mm
Overall Length: 80mm
Neck Dia: 11mm
1-2 days subject to availability

12MMXR3.0 HIGH FEED PULSAR BLUE

List Price:
£78.70ex VAT £94.44 inc VAT
