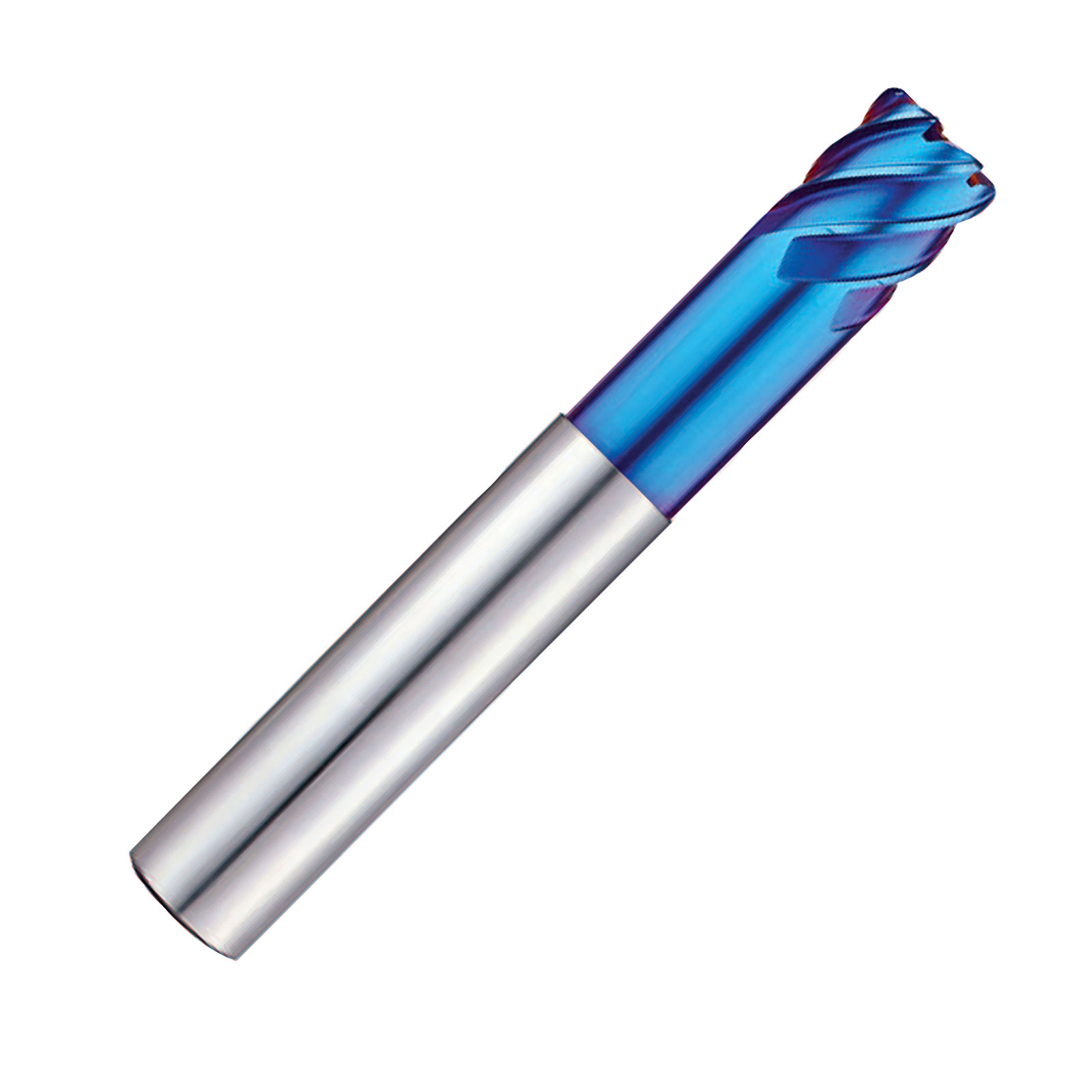

Pulsar Blue 108350 Series 6 Flute 45 Degree Helix Corner Radius End Mill..
Pulsar Blue 108350 Series 6 Flute 45 Degree Helix Corner Radius End Mill..

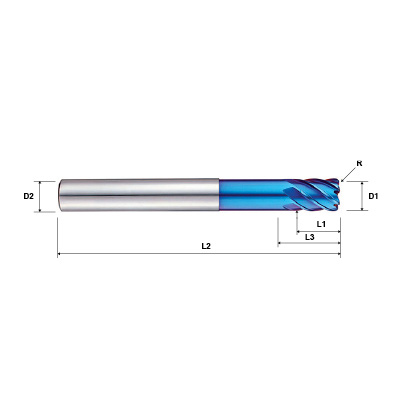

Pulsar Blue 108350 Series 6 Flute 45 Degree Helix Corner Radius End Mill Technical Drawing..

Pulsar Blue 6 Flute Helix Corner Radius End Mill for Hardened Steel

Series: 108350
Starting From:
£43.64excl VAT£52.368 incl. VAT

View Product Variants Table

Pulsar Blue 6 Flute Helix Corner Radius End Mill for Hardened Steel

...read more
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Price
(ex vat)
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 14mm
Overall Length: 50mm
Neck Dia: 5.7mm
£44.95

1-2 days
subject to

availability

subject to availability
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 8mm
Length Below Shank: 24mm
Overall Length: 60mm
Neck Dia: 7.65mm
£53.68

1-2 days
subject to

availability

subject to availability
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Length Below Shank: na
Overall Length: 70mm
Neck Dia: na
£51.13
1-2 days subject to availability
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Length Below Shank: na
Overall Length: 90mm
Neck Dia: na
£64.09
1-2 days subject to availability
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: na
Overall Length: 100mm
Neck Dia: na
£96.73
1-2 days subject to availability
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: na
Overall Length: 100mm
Neck Dia: na
£96.73
1-2 days subject to availability
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: na
Overall Length: 110mm
Neck Dia: na
£131.98
1-2 days subject to availability
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: na
Overall Length: 110mm
Neck Dia: na
£131.98
1-2 days subject to availability
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: na
Overall Length: 130mm
Neck Dia: na
£243.31
1-2 days subject to availability
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: na
Overall Length: 140mm
Neck Dia: na
£356.24
1-2 days subject to availability
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: na
Overall Length: 140mm
Neck Dia: na
£356.24
1-2 days subject to availability
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 26mm
Length Below Shank: na
Overall Length: 70mm
Neck Dia: na
£61.58
1-2 days subject to availability
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 36mm
Length Below Shank: na
Overall Length: 90mm
Neck Dia: na
£79.62
1-2 days subject to availability
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 46mm
Length Below Shank: na
Overall Length: 100mm
Neck Dia: na
£125.85
1-2 days subject to availability
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 56mm
Length Below Shank: na
Overall Length: 110mm
Neck Dia: na
£178.38
1-2 days subject to availability
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 66mm
Length Below Shank: na
Overall Length: 130mm
Neck Dia: na
£312.63
1-2 days subject to availability
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 76mm
Length Below Shank: na
Overall Length: 140mm
Neck Dia: na
£487.70
1-2 days subject to availability
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 10mm
Length Below Shank: 30mm
Overall Length: 70mm
Neck Dia: 9.65mm
£83.84
1-2 days subject to availability
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 30mm
Overall Length: 75mm
Neck Dia: 11.6mm
£100.20
1-2 days subject to availability
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: na
Overall Length: 130mm
Neck Dia: na
£222.76
1-2 days subject to availability
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: na
Overall Length: 140mm
Neck Dia: na
£326.10
1-2 days subject to availability

Product Information

Pulsar Blue 6 Flute Helix Corner Radius End Mill for Hardened Steel

  • Premium nanograin carbide
  • Suitable for dry cutting
  • Corner radius
  • Suitable for machining upto 70HRC
  • High speed cutting
  • 45 degree helix
  • Excellent workpiece finish

The newly developed coating and raw material allows for high speed speed dry cutting.Designed specifically for machining high hardened materials - excellent on hardened alloy and tempered steels in excess of 38 HRC, suitable for alloy steels and plain tempered carbon steels, also suitable for copper and short and long chip copper alloys, brass and bronze.

Specifications

Category:Milling Cutters
Category:Milling Tools
Application:Hardened Steel
Application:Steel
Brand:Europa Tool
No. Flutes:6 Flute
Profile:Corner Radius
Length:Standard Length
Range:Pulsar Blue
