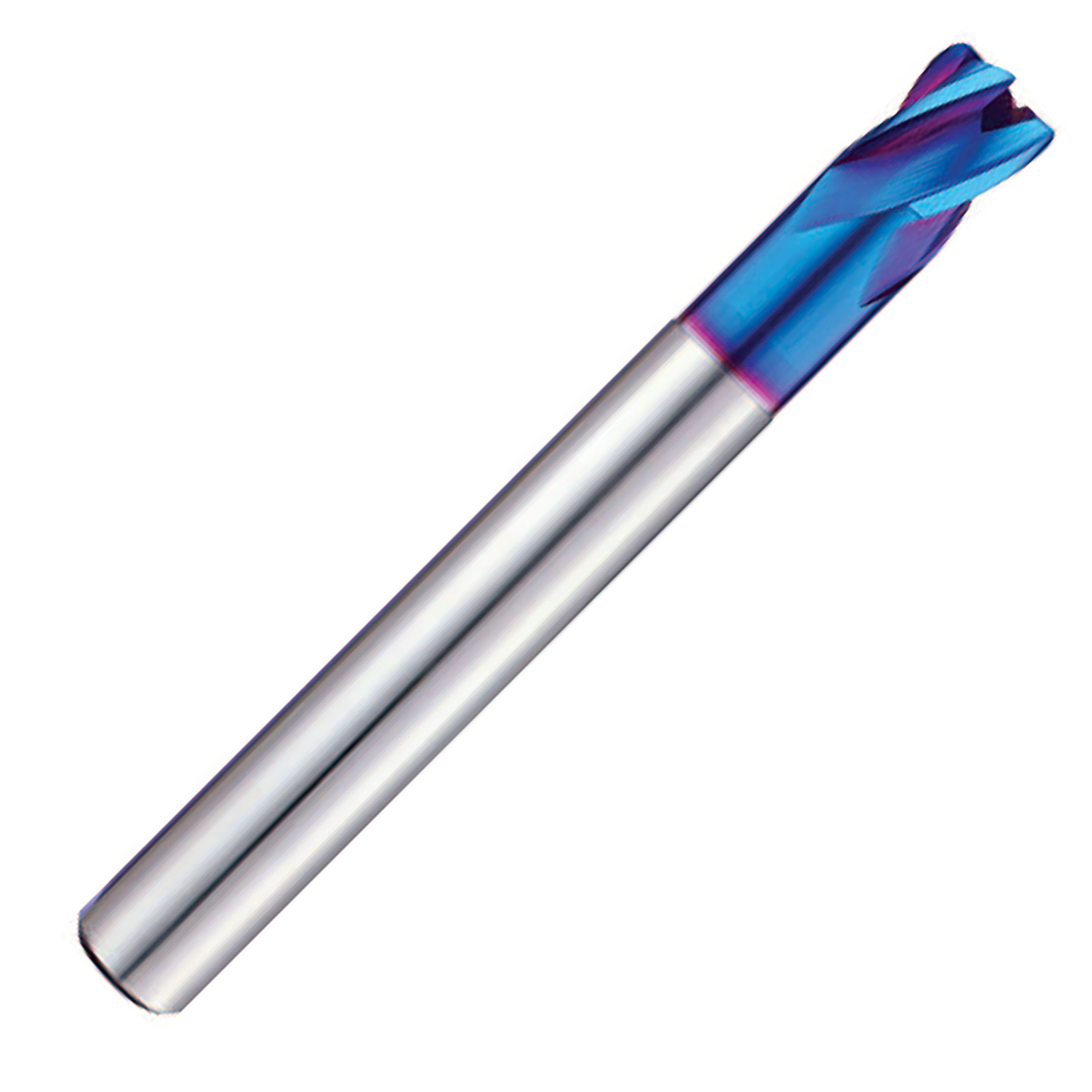

Pulsar Blue 4 Flute Extended Neck Corner Radius Stub Length End Mill for Hardened Steel
Series: 103350£22.44 excl. VAT
£26.93 incl. VAT
Pulsar Blue 4 Flute Extended Neck Corner Radius Stub Length End Mill for Hardened Steel
- Premium nanograin carbide
- Suitable for dry cutting
- Corner radius
- Suitable for machining upto 70HRC
- High speed cutting
- 30 degree helix
- Excellent workpiece finish
Downloads
| 103350-cutting-data.pdf |
Have a query?
Speak to one of our advisers today for expert advise.

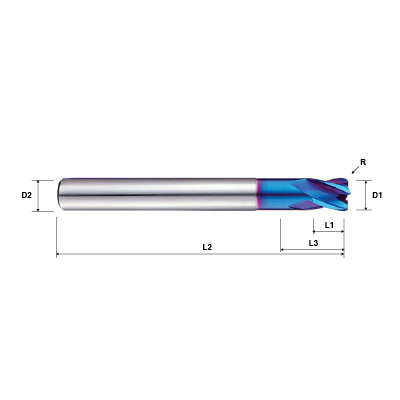

Description | Diameter / D1 | Shank Diameter / D2 | Cutting Length / L1 | Overall Length / L2 | Radius / R | Length Below Shank / L3 | Neck Dia | Price |
|---|---|---|---|---|---|---|---|---|
| 1033500100 | 1mm | 3mm | 1.5mm | 40mm | 0.1mm | na | na | |
| 1033500150 | 1.5mm | 3mm | 2.2mm | 40mm | 0.1mm | na | na | |
| 1033500200 | 2mm | 3mm | 3mm | 40mm | 0.1mm | 6mm | 1.9mm | |
| 1033500250 | 2.5mm | 3mm | 4mm | 40mm | 0.1mm | 6mm | 2.4mm | |
| 1033500300 | 3mm | 6mm | 4mm | 45mm | 0.1mm | 7mm | 2.9mm | |
| 1033500350 | 3.5mm | 6mm | 5mm | 45mm | 0.1mm | 9mm | 3.3mm | |
| 1033500400 | 4mm | 6mm | 5mm | 45mm | 0.1mm | 9mm | 3.8mm | |
| 1033500450 | 4.5mm | 6mm | 6mm | 45mm | 0.1mm | 10mm | 4.3mm | |
| 1033500500 | 5mm | 6mm | 6mm | 50mm | 0.2mm | 11mm | 4.8mm | |
| 1033500600 | 6mm | 6mm | 7mm | 50mm | 0.2mm | 14mm | 5.8mm | |
| 1033500800 | 8mm | 8mm | 9mm | 60mm | 0.2mm | 18mm | 7.8mm | |
| 1033501000 | 10mm | 10mm | 12mm | 75mm | 0.2mm | 25mm | 9.7mm | |
| 1033501200 | 12mm | 12mm | 15mm | 75mm | 0.3mm | 30mm | 11.7mm | |
| 1033501600 | 16mm | 16mm | 18mm | 90mm | 0.3mm | 38mm | 15.7mm | |
| 1033502000 | 20mm | 20mm | 24mm | 100mm | 0.3mm | 45mm | 19.7mm |
Product Information
Pulsar Blue 4 Flute Extended Neck Corner Radius Stub Length End Mill for Hardened Steel
- Premium nanograin carbide
- Suitable for dry cutting
- Corner radius
- Suitable for machining upto 70HRC
- High speed cutting
- 30 degree helix
- Excellent workpiece finish
The newly developed coating and raw material allows for high speed speed dry cutting.Designed specifically for machining high hardened materials - excellent on hardened alloy and tempered steels in excess of 38 HRC, suitable for alloy steels and plain tempered carbon steels, also suitable for copper and short and long chip copper alloys, brass and bronze.
Specifications
| Category: | Milling Cutters |
| Application: | Hardened Steel |
| Range: | Pulsar Blue |
| Brand: | Europa Tool |
| No. Flutes: | 4 Flute |
| Profile: | Corner Radius |
| Length: | Standard Length |
| Category: | Milling Tools |
| Application: | Steel |
| Substrate: | Carbide |
