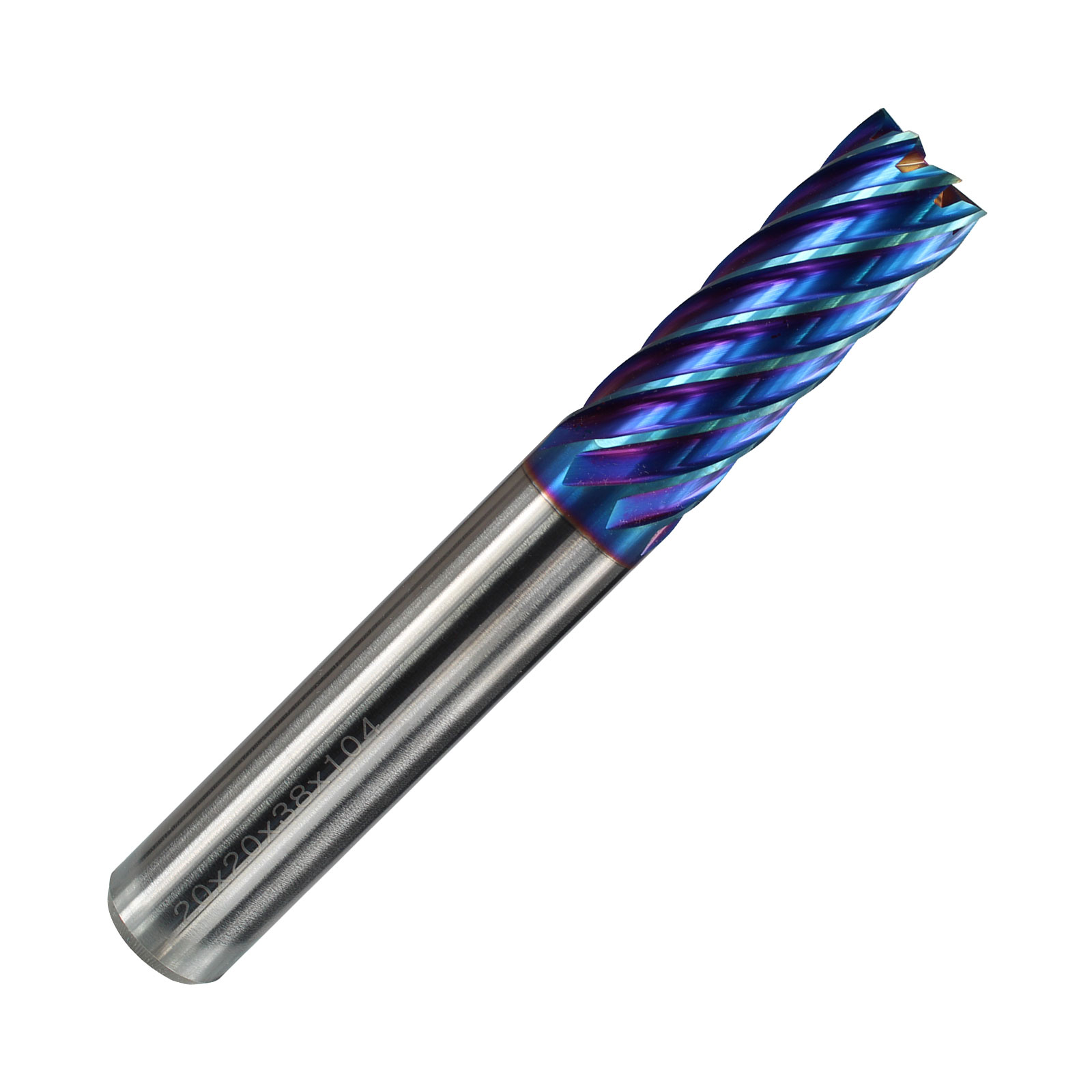

Pulsar Blue 102950 Series 6 & 8 Flute 45 Degree Helix Long Series End Mill..
Pulsar Blue 102950 Series 6 & 8 Flute 45 Degree Helix Long Series End Mill..

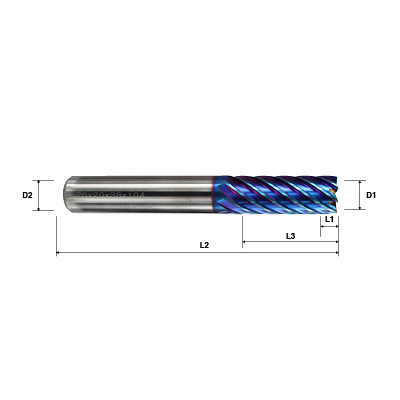

Pulsar Blue 102950 Series 6 & 8 Flute 45 Degree Helix Long Series End Mill Technical Drawing..

Pulsar Blue 102950 Series 6 & 8 Flute 45 Degree Helix Long Series End Mill for Hardened Steel

Series: 102950

Designed specifically for machining high hardened materials - excellent on hardened alloy and tempered steels in excess of 38 HRC, suitable for alloy steels and plain tempered carbon steels.

Features: • Suitable for dry cutting, high speed cutting. • Negative rake angle for high abrasion resistance. • Excellent side-cutting of press mould field.

Description
D1
D2
L1
L2
Diameter
Shank Diameter
Cutting Length
Overall Length
No Flutes
Stock
Price
Add To Cart
SKU: 1029500600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
No Flutes: 6
1-2 days subject to availability

6MM 45DEG L/S 6FLT PULSAR BLUE

List Price: £34.01
SKU: 1029500800
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
No Flutes: 6
1-2 days subject to availability

8MM 45DEG L/S 6FLT PULSAR BLUE

List Price: £42.67
SKU: 1029501000
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
No Flutes: 6
1-2 days subject to availability

10MM 45DEG L/S 6FLT PULSAR BLUE

List Price: £64.45
SKU: 1029501200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
No Flutes: 6
1-2 days subject to availability

12MM 45DEG L/S 6FLT PULSAR BLUE

List Price: £88.01
SKU: 1029501400
Diameter: 14mm
Shank Diameter: 14mm
Cutting Length: 26mm
Overall Length: 83mm
No Flutes: 6
1-2 days subject to availability

14MM 45DEG L/S 6FLT PULSAR BLUE

List Price: £110.32
SKU: 1029501600
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
No Flutes: 6
1-2 days subject to availability

16MM 45DEG L/S 6FLT PULSAR BLUE

List Price: £148.82
SKU: 1029501800
Diameter: 18mm
Shank Diameter: 18mm
Cutting Length: 32mm
Overall Length: 92mm
No Flutes: 8
1-2 days subject to availability

18MM 45DEG L/S 8FLT PULSAR BLUE

List Price: £173.90
SKU: 1029502000
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
No Flutes: 8
1-2 days subject to availability

20MM 45DEG L/S 8FLT PULSAR BLUE

List Price: £217.75
SKU: 1029502500
Diameter: 25mm
Shank Diameter: 25mm
Cutting Length: 44mm
Overall Length: 104mm
No Flutes: 8
1-2 days subject to availability

25MM 45DEG L/S 8FLT PULSAR BLUE

List Price: £386.63
