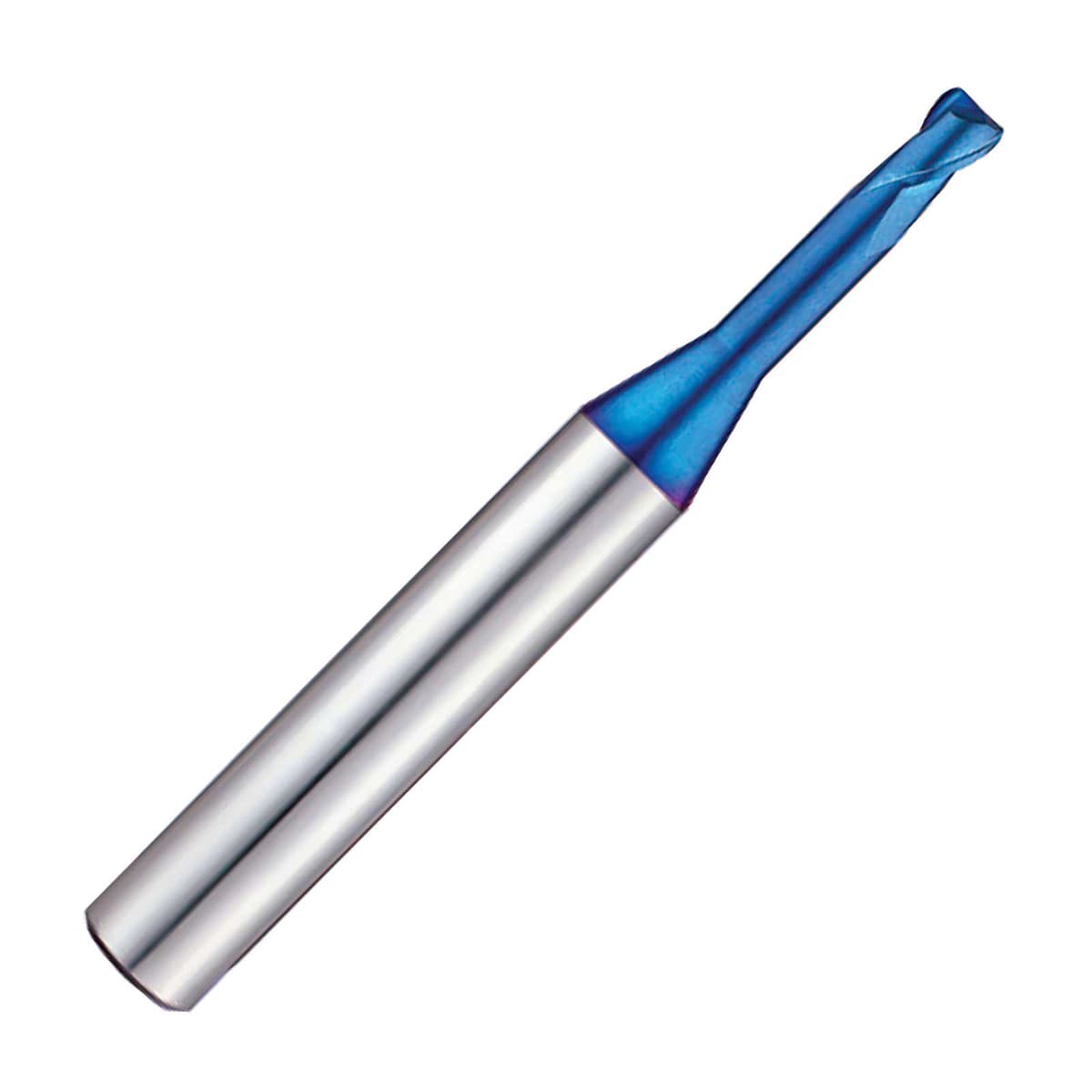

Pulsar Blue 102350 Series 2 Flute Corner Radius Rib Processing End Mill.

Pulsar Blue 102350 Series 2 Flute Corner Radius Rib Processing End Mill Technical Drawing.

Pulsar Blue 2 Flute Corner Radius Rib Processing End Mill for Hardened Steel

Name: Pulsar Blue 2 Flute Corner Radius Rib Processing End Mill for Hardened Steel
Brand: Milo Tools
SKU: 102350
Availability: InStock

Series: 102350...15% DISCOUNT

Starting From:
£33.86 excl. VAT
£40.63 incl. VAT

Offer Price From:
£28.78excl. VAT
£34.54incl. VAT

Free UK delivery on orders over £25 ex VAT

View Product Variants Table

Pulsar Blue 2 Flute Rib Processing Corner Radius Slot Drill for Hardened Steel

Premium nanograin carbide
Suitable for dry cutting
Corner radius
Suitable for machining upto 70HRC
High speed cutting
30 degree helix
Excellent workpiece finish

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822

sales@milotools.co.uk

Cutting Data

SKU	Diameter / D1	Shank Diameter / D2	Cutting Length / L1	Overall Length / L2	Radius / R	Length Below Shank / L3	Neck Dia	Price (Ex VAT)
1023500050	0.5mm	6mm	0.7mm	50mm	0.05mm	1.5mm	0.45mm	£44.16£37.54
1023500060	0.6mm	6mm	0.9mm	50mm	0.05mm	2mm	0.55mm	£44.16£37.54
1023500080	0.8mm	6mm	1.2mm	50mm	0.05mm	2.5mm	0.75mm	£39.99£33.99
1023500100	1mm	6mm	1.5mm	50mm	0.1mm	3.3mm	0.95mm	£35.59£30.25
1023500120	1.2mm	6mm	1.8mm	50mm	0.1mm	4.4mm	1.15mm	£35.59£30.25
1023500150	1.5mm	6mm	2.2mm	50mm	0.15mm	5mm	1.4mm	£35.59£30.25
1023500200	2mm	6mm	2.2mm	50mm	0.15mm	6mm	1.9mm	£33.86£28.78
1023500901	0.5mm	6mm	0.7mm	50mm	0.05mm	3.3mm	0.45mm	£44.16£37.54
1023500902	0.6mm	6mm	0.9mm	50mm	0.05mm	4mm	0.55mm	£44.16£37.54
1023500903	0.8mm	6mm	1.2mm	50mm	0.05mm	5.5mm	0.42mm	£39.99£33.99
1023500904	1mm	6mm	1.5mm	50mm	0.1mm	6.7mm	0.95mm	£35.59£30.25
1023500905	1.2mm	6mm	1.8mm	50mm	0.1mm	8mm	1.15mm	£37.78£32.11
1023500906	1.5mm	6mm	2.2mm	50mm	0.15mm	9.7mm	1.4mm	£35.59£30.25
1023500907	2mm	6mm	2.2mm	50mm	0.15mm	13mm	1.9mm	£36.79£31.27
