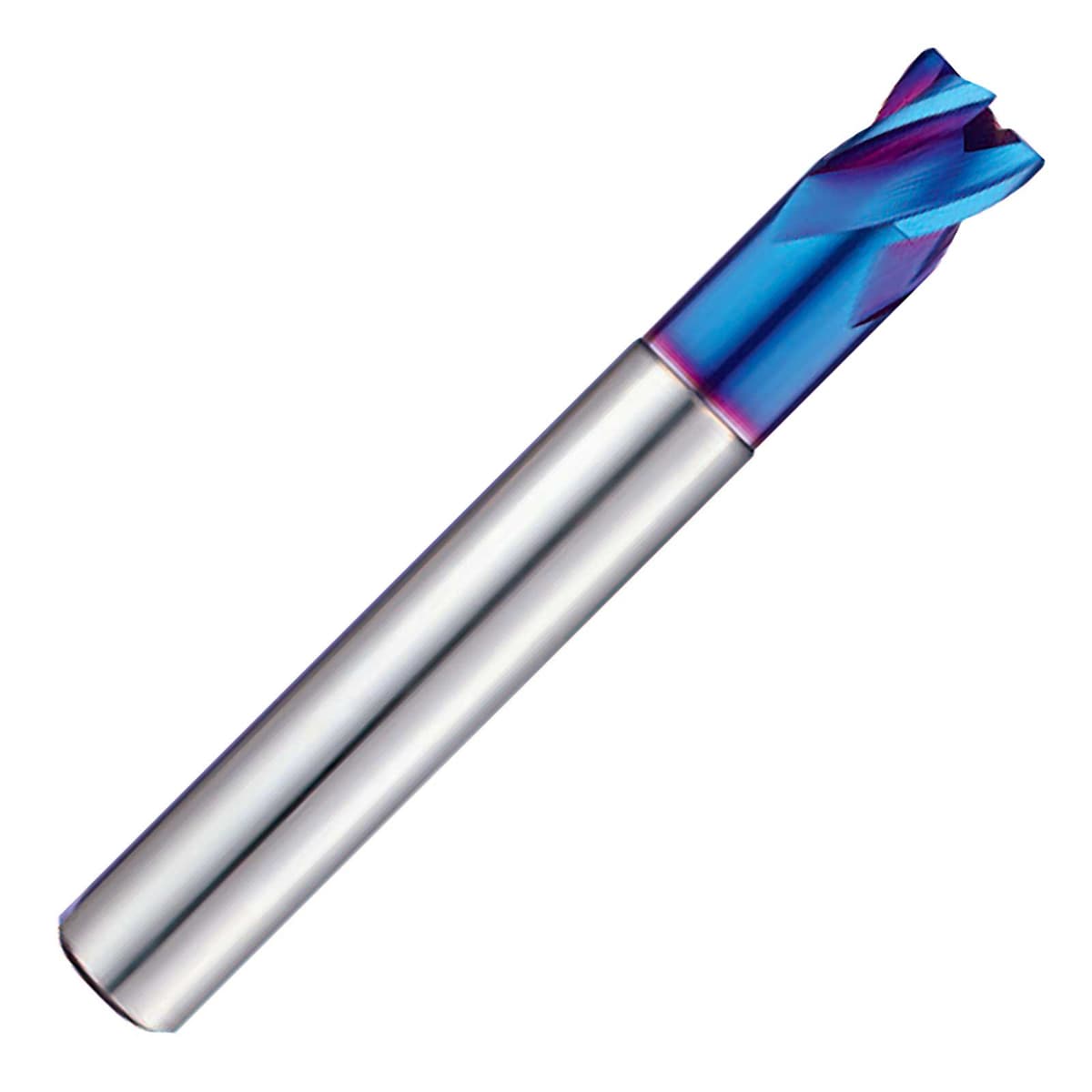

Pulsar Blue 101650 Series 4 Flute Corner Radius Extended Neck Short Length End Mill.
Pulsar Blue 101650 Series 4 Flute Corner Radius Extended Neck Short Length End Mill.
Pulsar Blue 101650 Series 4 Flute Corner Radius Extended Neck Short Length End Mill Technical Drawing.

Pulsar Blue 101650 Series 4 Flute Corner Radius Extended Neck Short Length End Mill for Hardened Steel

Series: 101650
Starting From:
£31.76excl VAT£38.11 incl. VAT

View Product Variants Table

Designed specifically for machining high hardened materials - excellent on hardened alloy and tempered steels in excess of 38 HRC, suitable for alloy steels and plain tempered carbon steels.

Features: • Suitable for dry cutting, high speed cutting. • Excellent workpiece finish. • Designed for deep slotting. • Higher wear-resistance.

Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1016500300
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 2.85mm
1-2 days subject to availability

3.0MMXR0.3 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500400
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR0.3 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500600
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 5.85mm
1-2 days subject to availability

6.0MMXR0.5 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500601
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 5.85mm
1-2 days subject to availability

6.0MMXR1.0 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500800
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 9mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 7.7mm
1-2 days subject to availability

8.0MMXR0.5 4FLT PULSAR BLUE

List Price:
£40.19ex VAT £48.23 inc VAT
SKU: 1016500901
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 2.85mm
1-2 days subject to availability

3.0MMXR0.3 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500902
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 20mm
Overall Length: 55mm
Neck Dia: 2.85mm
1-2 days subject to availability

3.0MMXR0.3 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500903
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 10mm
Overall Length: 55mm
Neck Dia: 2.85mm
1-2 days subject to availability

3.0MMXR0.5 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500904
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 2.85mm
1-2 days subject to availability

3.0MMXR0.5 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500905
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 20mm
Overall Length: 55mm
Neck Dia: 2.85mm
1-2 days subject to availability

3.0MMXR0.5 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500906
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR0.3 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500907
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 20mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR0.3 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500908
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR0.5 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500909
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR0.5 L/S 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500910
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 20mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR0.5 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500911
Diameter: 4mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 5mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 3.85mm
1-2 days subject to availability

4.0MMXR1.0 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500912
Diameter: 6mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 5.85mm
1-2 days subject to availability

6.0MMXR1.5 4FLT PULSAR BLUE

List Price:
£31.76ex VAT £38.11 inc VAT
SKU: 1016500913
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 9mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 7.7mm
1-2 days subject to availability

8.0MMXR1.0 4FLT PULSAR BLUE

List Price:
£40.19ex VAT £48.23 inc VAT
SKU: 1016500914
Diameter: 8mm
Radius: 1.5mm
Shank Diameter: 8mm
Cutting Length: 9mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 7.7mm
1-2 days subject to availability

8.0MMXR1.5 4FLT PULSAR BLUE

List Price:
£40.19ex VAT £48.23 inc VAT
SKU: 1016500915
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 9mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 7.7mm
1-2 days subject to availability

8.0MMXR2.0 4FLT PULSAR BLUE

List Price:
£40.19ex VAT £48.23 inc VAT
SKU: 1016500916
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 11mm
Length Below Shank: 32mm
Overall Length: 70mm
Neck Dia: 9.7mm
1-2 days subject to availability

10MMXR1.0 4FLT PULSAR BLUE

List Price:
£60.20ex VAT £72.24 inc VAT
SKU: 1016500917
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 11mm
Length Below Shank: 32mm
Overall Length: 70mm
Neck Dia: 9.7mm
1-2 days subject to availability

10MMXR1.5 4FLT PULSAR BLUE

List Price:
£60.20ex VAT £72.24 inc VAT
SKU: 1016500918
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 11mm
Length Below Shank: 32mm
Overall Length: 70mm
Neck Dia: 9.7mm
1-2 days subject to availability

10MMXR2.0 4FLT PULSAR BLUE

List Price:
£60.20ex VAT £72.24 inc VAT
SKU: 1016500919
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 38mm
Overall Length: 80mm
Neck Dia: 11.7mm
1-2 days subject to availability

12MMXR1.0 4FLT PULSAR BLUE

List Price:
£83.09ex VAT £99.71 inc VAT
SKU: 1016500920
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 38mm
Overall Length: 80mm
Neck Dia: 11.7mm
1-2 days subject to availability

12MMXR1.5 4FLT PULSAR BLUE

List Price:
£83.09ex VAT £99.71 inc VAT
SKU: 1016500921
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 38mm
Overall Length: 80mm
Neck Dia: 11.7mm
1-2 days subject to availability

12MMXR2.0 4FLT PULSAR BLUE

List Price:
£83.09ex VAT £99.71 inc VAT
SKU: 1016501000
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 11mm
Length Below Shank: 32mm
Overall Length: 70mm
Neck Dia: 9.7mm
1-2 days subject to availability

10MMXR0.5 4FLT PULSAR BLUE

List Price:
£60.20ex VAT £72.24 inc VAT
SKU: 1016501200
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 38mm
Overall Length: 80mm
Neck Dia: 11.7mm
1-2 days subject to availability

12MMXR0.5 4FLT PULSAR BLUE

List Price:
£83.09ex VAT £99.71 inc VAT
