Measuring Tools

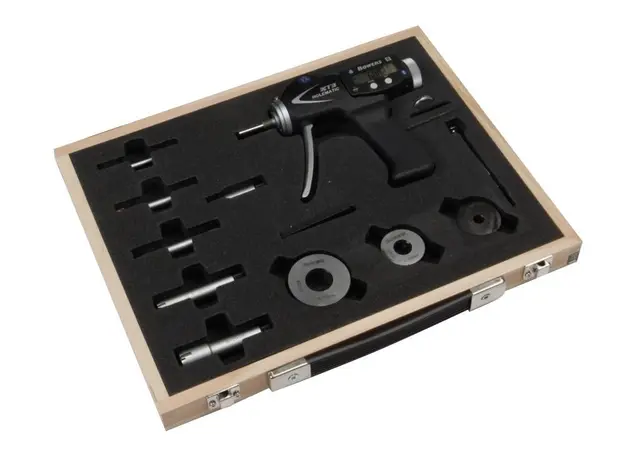

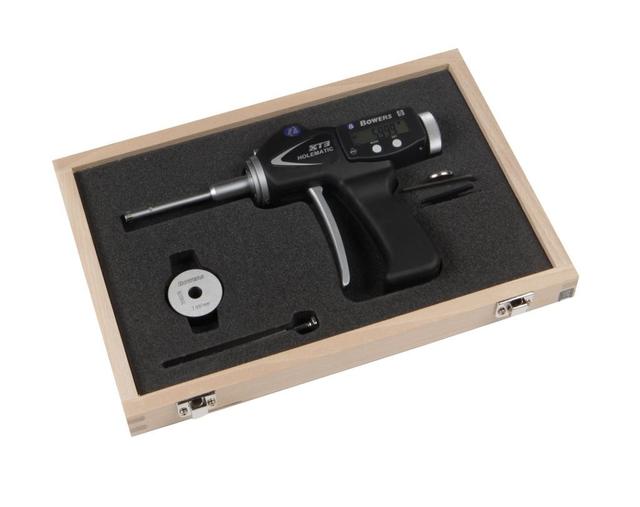

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems.

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available.

• Digital Bore Gauge Depth Stop
• For 1-6MM heads

Easy to read LCD display.

Easy to read LCD Display.

Available in 400mm and 600mm capacities, the robust new Sylvac Hi_Gage ONE Height Gauge is water and coolant resistant and designed to provide high levels of accuracy and repeatability throughout extended shop floor use.

Complies with: BS870, DIN 863/1, ISO361

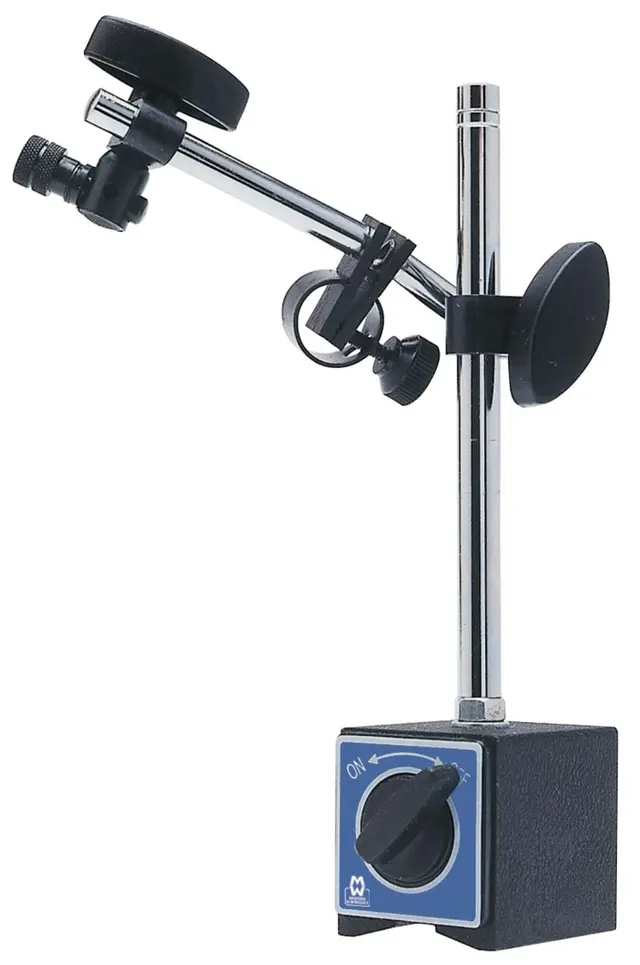

• Features a unique hydraulic central lock for all arms and swivel positions
• Super solid model
• With fine adjustment
• With powerful on/off magnetic base
• Magnetic force 80kg/175lbs
• Universal model which can be used for indicators with or without lug on back plate
• Accepts dial test indicators, digital indicators and normal indicators
• Dovetail groove for clamping a dial test indicator
• Super rigid

• Versatile magnetic base that can be adjusted in almost unlimited ways
• With fine adjustment
• 30kg clamp force
• V-base for mounting on rounded surfaces

• Easy to operate ultrasonic wall thickness gauge
• Standard 5 MHz transducer included, special purpose types available
• Clear 4-Digit LCD display
• Retention of last 10 readings

• Applications
• TT-100 for metal, glass, plastics etc (Standard model)
• TT-120 for high temperature steel (Up to 300ºC)
• TT-130 for metals, glass, plastics etc, 0.01mm resolution

• Standard Delivey
• Transducer 5MHz
• Transducer ZW5P (TT-120)
• Integrated steel calibration plate 4.0mm


• Ultrasonic couplant
• Operation manual
• Carrying case

• Impact device D integrated:no cables!
• Integrated impact device C featuring low impact energy for surface hardened components and thin walled components (TH-172)
• Integrated impact device DL featuring testing in confined spaces (TH-174)
• Wide measuring range.
• Direct display of hardness scales Rockwell HRB, HRC, Vickers HV, Brinell HB, Shore HS, Leebs HLD (TH-170)/Leebs HLC (TH-172)/Leebs HLDL
• For all metallic materials (TH-170), for steel and cast steel (TH-172/174), and cold work tool steel (TH-172)
• Provides testing at any angle
• Simple handling and low test expenditure
• High accuracy ±0.5%
• Clear LCD display showing all functions and parameters
• Conforms to ASTM A 956 and DIN 50156
• USB output to PC only

• Test results appear directly on the large display
• According to ASTM and DIN standard
• Display scales HV, HB, HRC, HRB, HS and conversion to tensile strength
• Highly accurate readings ± 0.5% at 800 HL
• Correction for impact direction 360 degrees
• Chargeable battery pack to ensure many hours of undisturbed testing and printing
• Direct keys for easy set up of testing parameters
• Thermal mini-printer installed on the main unit
• Ridged ABS anti-shock casing with sealed keypad
• Optional impact devices available on request.

Standard Delivery

• Main unit with impact device type D
• Printer (on top)
• Test block with HLD-value
• Charger
• Cleaning brush
• Coupling paste
• Table suuport for main unit
• Certificate
• Manual
• Plastic carrying case

Optional Accessories

• Special impact devices
• UKAS certified test blocks
• Support rings for convex and concave surfaces

Magnetic base hardness tester designed according to the principle of Rockwell hardness testing.

• The test head can be fixed to the surface of iron and steel components by magnetic force. Support to the test piece is not required as the 350kg+ magnetic base will hold the unit firmly in position.
• The testing accuracy complies to ISO 6508 or ASTM E18 and is comparable to a Rockwell bench hardness tester.
• Testing can be done regardless of the shape of the component as long as there is a flat surface for positioning of the magnetic base.
• Able to test large-size workpieces which are assembled, unable to cut or inconvenient to move such as large-size moulds, steel plates, steel tubes, steel structures, pressure vessels, metallic pipe lines or the slide ways of machine tools.

Optional Accessories

• Rockwell indenters
• Rockwell balls

The Sylvac Hi_Cal Digital Motorised Height Gauge is perfect for a variety of measuring tasks including step heights, internal/external diameters and centre-line distances.

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement.

• Metric measurement
• Range 20-200mm
• 3 point measurement
• Graduation: 0.005mm

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement.

Features:

• Imperial measurement
• Range 3/4-8 inch (3/4"-8")
• 3 point measurement
• Graduation: 0.005mm

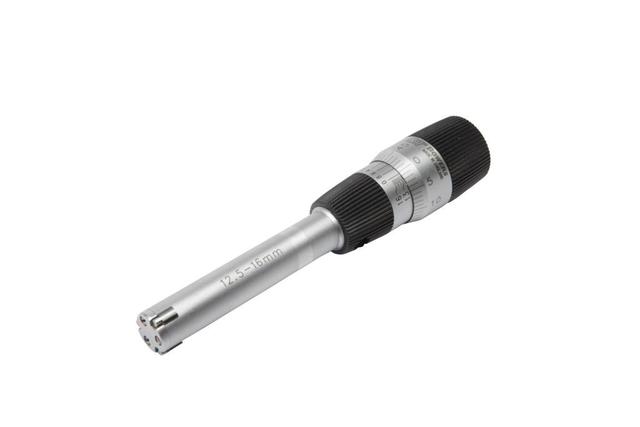

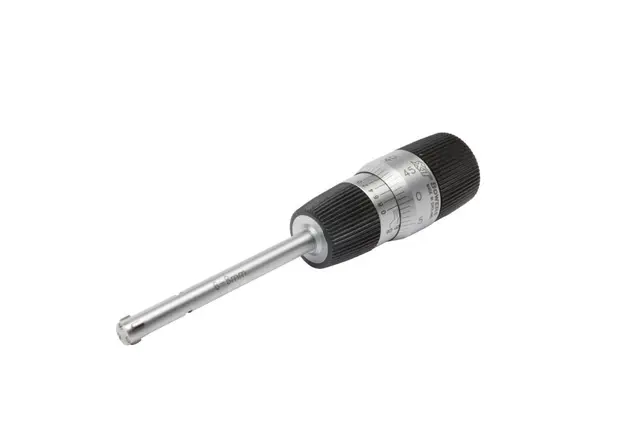

The XTA Micro is a more compact mechanical controller, lighter and more ergonomically designed. The XTA Micro's Vernier scale improves resolution from 5µ to 2µ.

Features

• Vernier scale added to improve resolution from 5µ to 2µ
• Graduation: 2-6mm range - 0.001mm. 0.080”-1/4” range: 0.0001”
• Graduation: 6-20mm range - 0.002mm. 1/4”-3/4” range: 0.0001”

The XTA Micro is a more compact mechanical controller, lighter and more ergonomically designed. The XTA Micro's Vernier scale improves resolution from 5µ to 2µ.

Features

• Vernier scale added to improve resolution from 5µ to 2µ
• Graduation: 2-6mm range - 0.001mm. 0.080”-1/4” range: 0.0001”
• Graduation: 6-20mm range - 0.002mm. 1/4”-3/4” range: 0.0001”

The XTA Micro is a more compact mechanical controller, lighter and more ergonomically designed. The XTA Micro's Vernier scale improves resolution from 5µ to 2µ.

Features

• Vernier scale added to improve resolution from 5µ to 2µ
• Graduation: 2-6mm range - 0.001mm. 0.080”-1/4” range: 0.0001”
• Graduation: 6-20mm range - 0.002mm. 1/4”-3/4” range: 0.0001”
