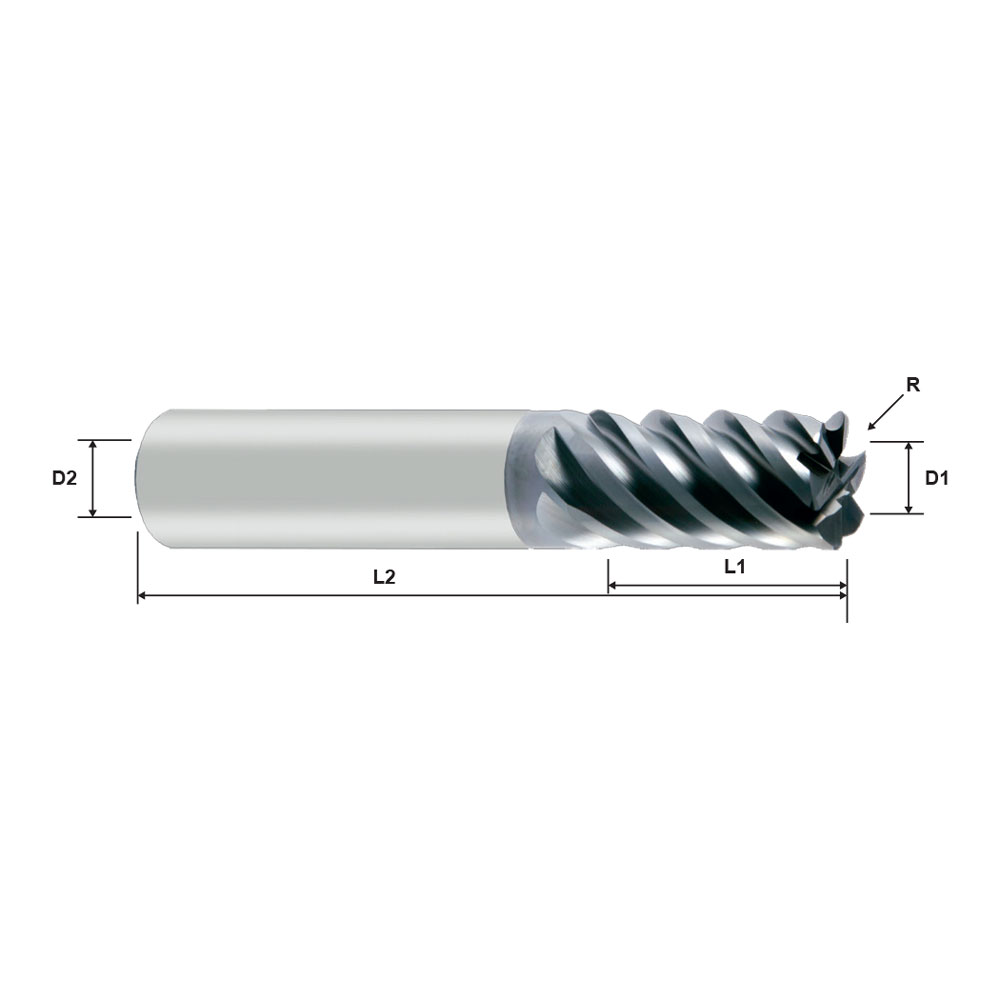

MasterMill 176329 Series 6 Flute Corner Radius High Performance Variable Helix End Mill Technical Drawing.

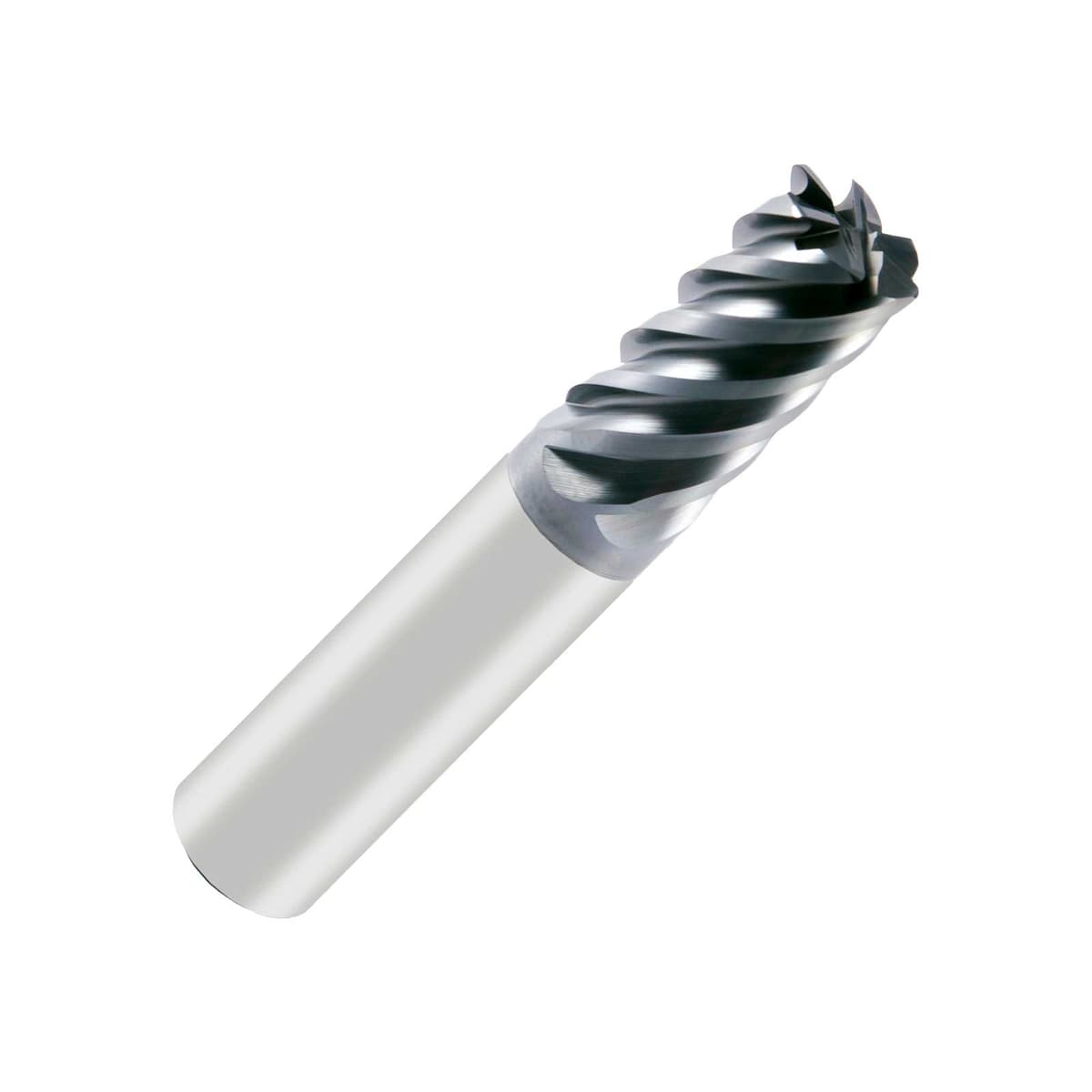

Mastermill 176329 Series 6 Flute VX Coated Carbide Variable Helix Corner Radius End Mill

Series: 176329
Starting From:
£23.48excl VAT£28.18 incl. VAT

View Product Variants Table

High performance for multiple materials: Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum.

VX four flute tools offer a high performance metal removal rate with secure, chatter-free machining. VXD double core and VX5 five flute tools give exceptional performance in Titanium, Inconel and other HRSA materials, whilst VX6 six flute tools have been optimised for trochoidal milling. All tools have a unique flute geometry with advanced VX coating for long tool life, and offer a high degree of process reliability. The tools in this section are suitable for Steel, Stainless Steel, Cast Iron and Heat Resistant Super Alloys (HRSA).

MastermillÕs VX coating has been engineered to provide exceptional tool life in both easy and difficult to machine materials, making the tools ideal for todayÕs machine shop

. Features:
  • Multilayer coating
  • Coating hardness: 35-40 GPa
  • Hot hardness: >1100¼C
  • Allows tools to be used for heavy and light cuts
  • Multiple material application
  • VX6 STANDARD LENGTH
  • Corner radius
  • Unequal index and unique geometry optimised for high speed and trochoidal milling.
Description
D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: 1763290600
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
1-2 days subject to availability

6mm X R0.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£23.48ex VAT £28.18 inc VAT
SKU: 1763290800
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
1-2 days subject to availability

8mm X R0.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£32.62ex VAT £39.14 inc VAT
SKU: 1763291000
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
1-2 days subject to availability

10mm X R0.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£51.44ex VAT £61.73 inc VAT
SKU: 1763291200
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
1-2 days subject to availability

12mm X R0.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£70.12ex VAT £84.14 inc VAT
SKU: 1763291600
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
1-2 days subject to availability

16mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£128.56ex VAT £154.27 inc VAT
SKU: 1763292000
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
1-2 days subject to availability

20mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£230.76ex VAT £276.91 inc VAT
SKU: 1763292500
Diameter: 25mm
Radius: 1mm
Shank Diameter: 25mm
Cutting Length: 44mm
Overall Length: 104mm
1-2 days subject to availability

25mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£324.79ex VAT £389.75 inc VAT
SKU: 1763299001
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
1-2 days subject to availability

6mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£23.48ex VAT £28.18 inc VAT
SKU: 1763299002
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
1-2 days subject to availability

8mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£32.62ex VAT £39.14 inc VAT
SKU: 1763299003
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
1-2 days subject to availability

10mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£51.44ex VAT £61.73 inc VAT
SKU: 1763299004
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
1-2 days subject to availability

10mm X R1.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£51.44ex VAT £61.73 inc VAT
SKU: 1763299005
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
1-2 days subject to availability

10mm X R2 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£51.44ex VAT £61.73 inc VAT
SKU: 1763299006
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
1-2 days subject to availability

12mm X R1 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£70.12ex VAT £84.14 inc VAT
SKU: 1763299007
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
1-2 days subject to availability

12mm X R1.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£70.12ex VAT £84.14 inc VAT
SKU: 1763299008
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
1-2 days subject to availability

12mm X R2 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£70.12ex VAT £84.14 inc VAT
SKU: 1763299009
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
1-2 days subject to availability

12mm X R3 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£70.12ex VAT £84.14 inc VAT
SKU: 1763299010
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
1-2 days subject to availability

16mm X R1.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£128.56ex VAT £154.27 inc VAT
SKU: 1763299011
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
1-2 days subject to availability

16mm X R2 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£128.56ex VAT £154.27 inc VAT
SKU: 1763299012
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
1-2 days subject to availability

16mm X R3 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£128.56ex VAT £154.27 inc VAT
SKU: 1763299013
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
1-2 days subject to availability

20mm X R1.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£230.76ex VAT £276.91 inc VAT
SKU: 1763299014
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
1-2 days subject to availability

20mm X R2 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£230.76ex VAT £276.91 inc VAT
SKU: 1763299015
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
1-2 days subject to availability

20mm X R3 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£230.76ex VAT £276.91 inc VAT
SKU: 1763299016
Diameter: 25mm
Radius: 1.5mm
Shank Diameter: 25mm
Cutting Length: 44mm
Overall Length: 104mm
1-2 days subject to availability

25mm X R1.5 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£324.79ex VAT £389.75 inc VAT
SKU: 1763299017
Diameter: 25mm
Radius: 2mm
Shank Diameter: 25mm
Cutting Length: 44mm
Overall Length: 104mm
1-2 days subject to availability

25mm X R2 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£324.79ex VAT £389.75 inc VAT
SKU: 1763299018
Diameter: 25mm
Radius: 3mm
Shank Diameter: 25mm
Cutting Length: 44mm
Overall Length: 104mm
1-2 days subject to availability

25mm X R3 MASTERMILL-VX 6FL 45 DEG EM

List Price:
£324.79ex VAT £389.75 inc VAT
