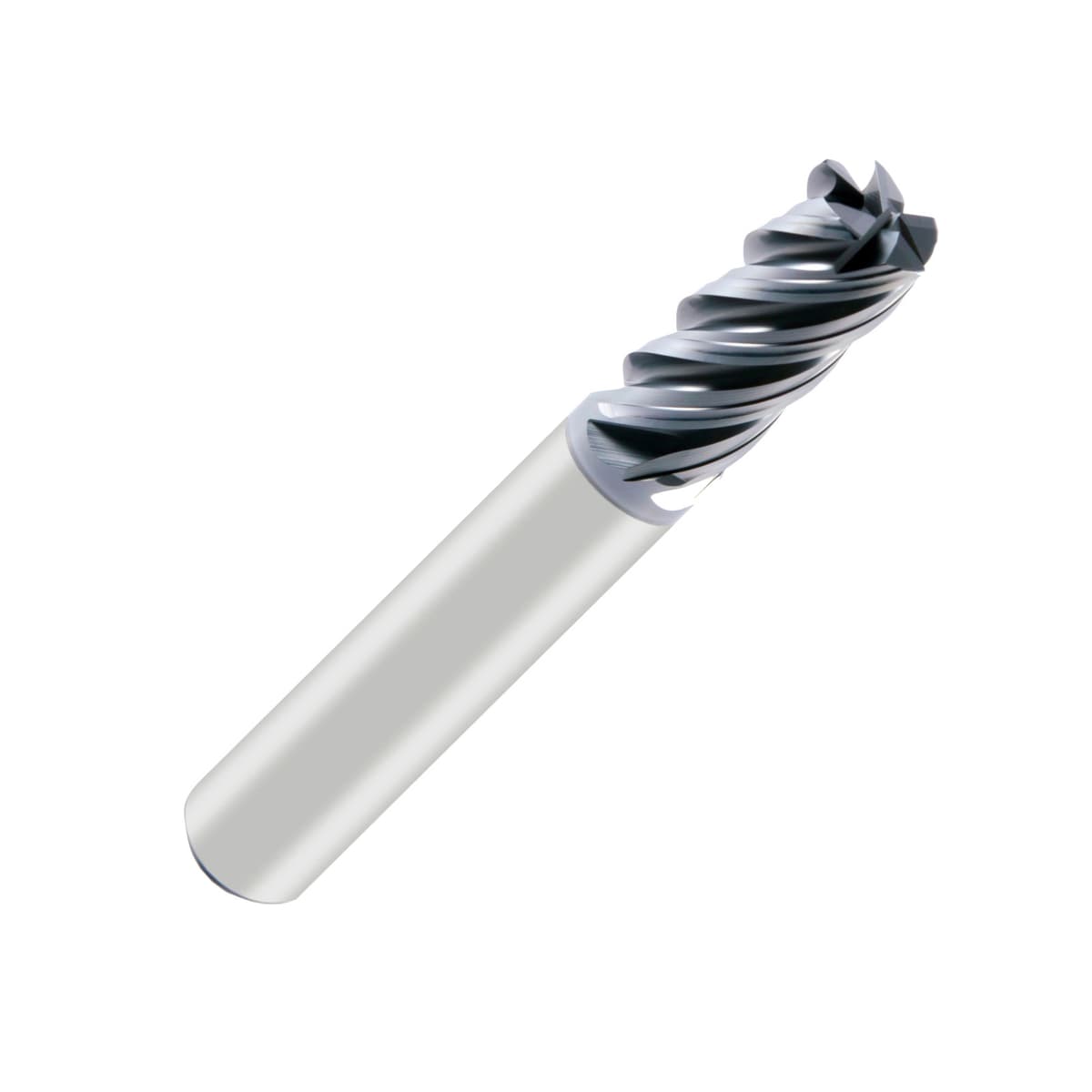

Mastermill 174323 Series 5 Flute VX Coated Carbide Variable Helix Corner Radius End Mill

Series: 174323

High performance for multiple materials: Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum.

VX four flute tools offer a high performance metal removal rate with secure, chatter-free machining. VXD double core and VX5 five flute tools give exceptional performance in Titanium, Inconel and other HRSA materials, whilst VX6 six flute tools have been optimised for trochoidal milling. All tools have a unique flute geometry with advanced VX coating for long tool life, and offer a high degree of process reliability. The tools in this section are suitable for Steel, Stainless Steel, Cast Iron and Heat Resistant Super Alloys (HRSA).

MastermillÕs VX coating has been engineered to provide exceptional tool life in both easy and difficult to machine materials, making the tools ideal for todayÕs machine shop

. Features:
  • Multilayer coating
  • Coating hardness: 35-40 GPa
  • Hot hardness: >1100¼C
  • Allows tools to be used for heavy and light cuts
  • Multiple material application
  • VX5 STANDARD LENGTH
  • Corner radius
  • High rigidity of flute and excellent chip evacuation in difficult to machine materials
Description
D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: 1743230600
Diameter: 6mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
Diameter: 6mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm

1-2 days
subject to

availability


subject to

availability

6mm MASTERMILL-VX5 5FL CR E/M R0.3

List Price: £24.97
SKU: 1743230800
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

8mm MASTERMILL-VX5 5FL CR E/M R0.5

List Price: £34.75
SKU: 1743231000
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm

1-2 days
subject to

availability


subject to

availability

10mm MASTERMILL-VX5 5FL CR E/M R0.5

List Price: £54.76
SKU: 1743231200
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL-VX5 5FL CR E/M R0.5

List Price: £74.60
SKU: 1743231600
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL-VX5 5FL CR E/M R1

List Price: £129.19
SKU: 1743232000
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R1

List Price: £231.90
SKU: 1743232500
Diameter: 25mm
Radius: 1mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 1mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R1

List Price: £326.34
SKU: 1743239001
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm

1-2 days
subject to

availability


subject to

availability

6mm MASTERMILL VX5 5FL CR E/M R0.5

List Price: £24.97
SKU: 1743239002
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm

1-2 days
subject to

availability


subject to

availability

6mm MASTERMILL VX5 5FL CR E/M R1

List Price: £24.97
SKU: 1743239003
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

8mm MASTERMILL VX5 5FL CR E/M R1

List Price: £34.75
SKU: 1743239004
Diameter: 8mm
Radius: 1.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
Diameter: 8mm
Radius: 1.5mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

8mm MASTERMILL VX5 5FL CR E/M R1.5

List Price: £34.75
SKU: 1743239005
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

8mm MASTERMILL VX5 5FL CR E/M R2

List Price: £34.75
SKU: 1743239006
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm

1-2 days
subject to

availability


subject to

availability

10mm MASTERMILL VX5 5FL CR E/M R1

List Price: £54.76
SKU: 1743239007
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm

1-2 days
subject to

availability


subject to

availability

10mm MASTERMILL VX5 5FL CR E/M R1.5

List Price: £54.76
SKU: 1743239008
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm

1-2 days
subject to

availability


subject to

availability

10mm MASTERMILL VX5 5FL CR E/M R2

List Price: £54.76
SKU: 1743239009
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL VX5 5FL CR E/M R1

List Price: £74.60
SKU: 1743239010
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL VX5 5FL CR E/M R1.5

List Price: £74.60
SKU: 1743239011
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL VX5 5FL CR E/M R2

List Price: £74.60
SKU: 1743239012
Diameter: 12mm
Radius: 2.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Diameter: 12mm
Radius: 2.5mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL VX5 5FL CR E/M R2.5

List Price: £74.60
SKU: 1743239013
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm

1-2 days
subject to

availability


subject to

availability

12mm MASTERMILL VX5 5FL CR E/M R3

List Price: £74.60
SKU: 1743239014
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL VX5 5FL CR E/M R1.5

List Price: £129.19
SKU: 1743239015
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL VX5 5FL CR E/M R2

List Price: £129.19
SKU: 1743239016
Diameter: 16mm
Radius: 2.5mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm
Diameter: 16mm
Radius: 2.5mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL VX5 5FL CR E/M R2.5

List Price: £129.19
SKU: 1743239017
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL VX5 5FL CR E/M R3

List Price: £129.19
SKU: 1743239018
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 36mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

16mm MASTERMILL VX5 5FL CR E/M R4

List Price: £129.19
SKU: 1743239019
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R1.5

List Price: £231.90
SKU: 1743239020
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R2

List Price: £231.90
SKU: 1743239021
Diameter: 20mm
Radius: 2.5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 2.5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R2.5

List Price: £231.90
SKU: 1743239022
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R3

List Price: £231.90
SKU: 1743239023
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R4

List Price: £231.90
SKU: 1743239024
Diameter: 20mm
Radius: 5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm
Diameter: 20mm
Radius: 5mm
Shank Diameter: 20mm
Cutting Length: 44mm
Overall Length: 104mm

1-2 days
subject to

availability


subject to

availability

20mm MASTERMILL VX5 5FL CR E/M R5

List Price: £231.90
SKU: 1743239025
Diameter: 25mm
Radius: 1.5mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 1.5mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R1.5

List Price: £326.34
SKU: 1743239026
Diameter: 25mm
Radius: 2mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 2mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R2

List Price: £326.34
SKU: 1743239027
Diameter: 25mm
Radius: 2.5mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 2.5mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R2.5

List Price: £326.34
SKU: 1743239028
Diameter: 25mm
Radius: 3mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 3mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R3

List Price: £326.34
SKU: 1743239029
Diameter: 25mm
Radius: 4mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 4mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R4

List Price: £326.34
SKU: 1743239030
Diameter: 25mm
Radius: 5mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm
Diameter: 25mm
Radius: 5mm
Shank Diameter: 25mm
Cutting Length: 54mm
Overall Length: 121mm

1-2 days
subject to

availability


subject to

availability

25mm MASTERMILL VX5 5FL CR E/M R5

List Price: £326.34
