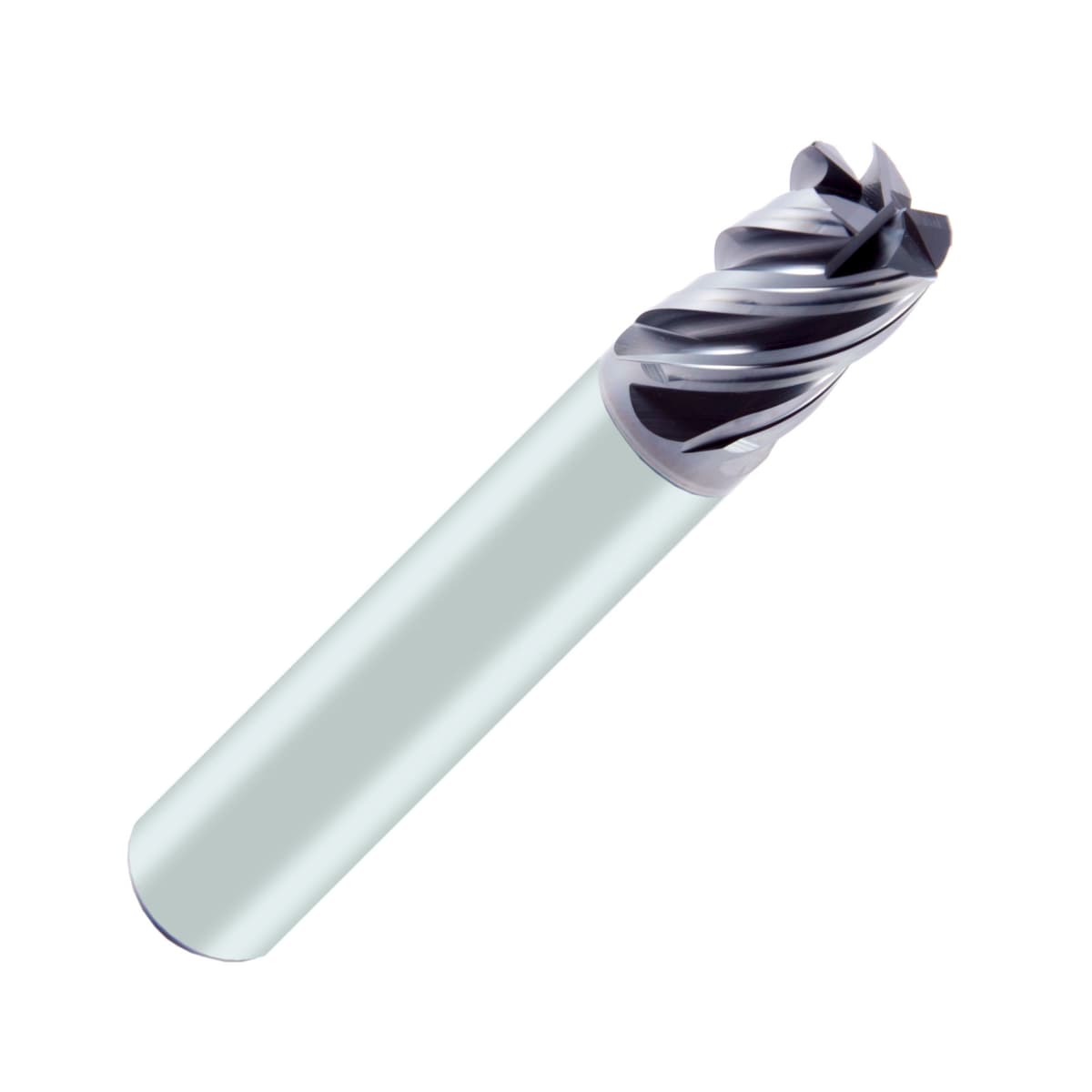

Mastermill 173323 Series 4 Flute VX Coated Carbide Variable Helix Corner Radius Short Length End Mill

Series: 173323

High performance for multiple materials: Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum.

VX four flute tools offer a high performance metal removal rate with secure, chatter-free machining. VXD double core and VX5 five flute tools give exceptional performance in Titanium, Inconel and other HRSA materials, whilst VX6 six flute tools have been optimised for trochoidal milling. All tools have a unique flute geometry with advanced VX coating for long tool life, and offer a high degree of process reliability. The tools in this section are suitable for Steel, Stainless Steel, Cast Iron and Heat Resistant Super Alloys (HRSA).

MastermillÕs VX coating has been engineered to provide exceptional tool life in both easy and difficult to machine materials, making the tools ideal for todayÕs machine shop

. Features:
  • Multilayer coating
  • Coating hardness: 35-40 GPa
  • Hot hardness: >1100¼C
  • Allows tools to be used for heavy and light cuts
  • Multiple material application
  • Corner radius
  • VX5 SHORT LENGTH
  • High rigidity of flute for heavy profiling and high speed machining
Description
D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: 1733230600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 10mm
Radius: 0.5mm
Overall Length: 54mm

1-2 days
subject to

availability


subject to

availability

6mm X R0.5 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £23.88
SKU: 1733230800
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 12mm
Radius: 0.5mm
Overall Length: 58mm

1-2 days
subject to

availability


subject to

availability

8mm X R0.5 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £33.25
SKU: 1733231000
Diameter: 10mm
Shank Diameter: 10mm
Radius: 0.5mm
Cutting Length: 14mm
Overall Length: 66mm

1-2 days
subject to

availability


subject to

availability

10mm X R0.5 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £48.75
SKU: 1733231200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 16mm
Radius: 0.5mm
Overall Length: 73mm

1-2 days
subject to

availability


subject to

availability

12mm X R0.5 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £71.36
SKU: 1733231600
Diameter: 16mm
Shank Diameter: 16mm
Radius: 1mm
Cutting Length: 22mm
Overall Length: 82mm

1-2 days
subject to

availability


subject to

availability

16mm X R1 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £125.55
SKU: 1733232000
Diameter: 20mm
Shank Diameter: 20mm
Radius: 1mm
Cutting Length: 26mm
Overall Length: 92mm

1-2 days
subject to

availability


subject to

availability

20mm X R1 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £187.57
SKU: 1733232500
Overall Length: 100mm
Radius: 1mm
Shank Diameter: 25mm
Diameter: 25mm
Cutting Length: 29mm

1-2 days
subject to

availability


subject to

availability

25mm X R1 MASTERMILL-VX5 5FL SHORT CR E/M

List Price: £263.93
