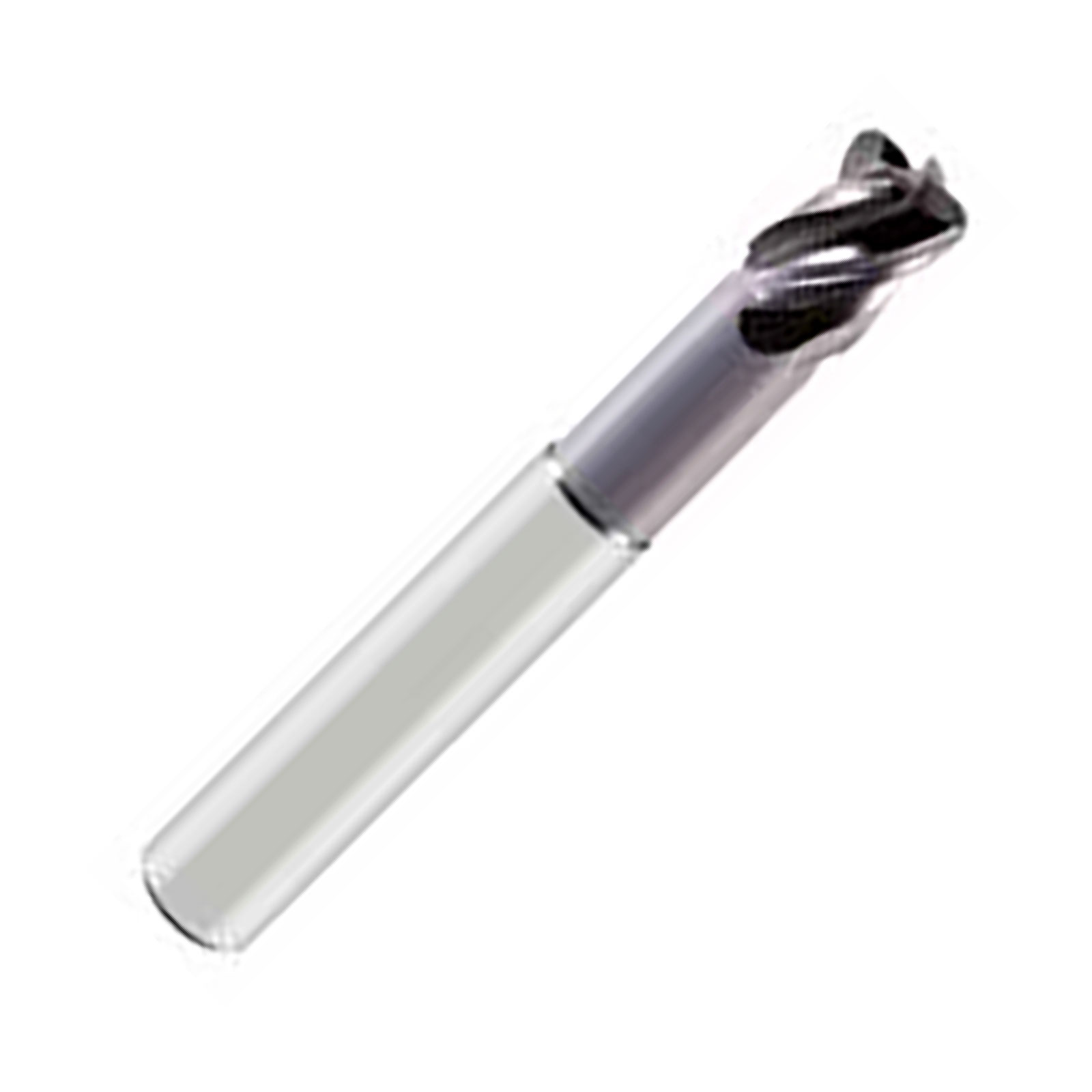

Mastermill 171329 Series 4 Flute VX Coated Carbide Variable Helix Corner Radius Reduced Neck End Mill

Series: 171329

High performance for multiple materials: Mastermill VX, whilst developed with aerospace machining in mind, they are ideal for use across a broad spectrum of industries. They are suitable for a wide range of materials, making tool selection simpler and keeping inventory to a minimum.

VX four flute tools offer a high performance metal removal rate with secure, chatter-free machining. VXD double core and VX5 five flute tools give exceptional performance in Titanium, Inconel and other HRSA materials, whilst VX6 six flute tools have been optimised for trochoidal milling. All tools have a unique flute geometry with advanced VX coating for long tool life, and offer a high degree of process reliability. The tools in this section are suitable for Steel, Stainless Steel, Cast Iron and Heat Resistant Super Alloys (HRSA).

MastermillÕs VX coating has been engineered to provide exceptional tool life in both easy and difficult to machine materials, making the tools ideal for todayÕs machine shop

. Features:
  • Multilayer coating
  • Coating hardness: 35-40 GPa
  • Hot hardness: >1100¼C
  • Allows tools to be used for heavy and light cuts
  • Multiple material application
  • Corner Radius
  • Minimized tool deflection
  • Reduced tool vibration
Description

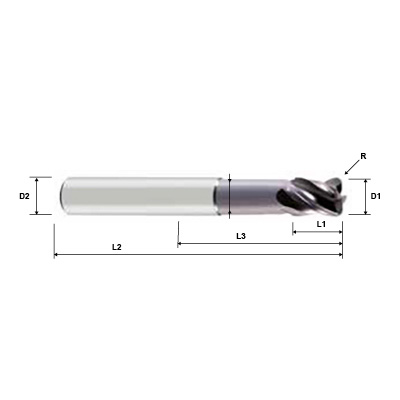

D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1713290300
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 12mm
Overall Length: 54mm
Neck Dia: 2.7mm

1-2 days
subject to

availability

3mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713290400
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 15mm
Overall Length: 57mm
Neck Dia: 3.7mm

1-2 days
subject to

availability

4mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713290500
Diameter: 5mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 17mm
Overall Length: 57mm
Neck Dia: 4.7mm

1-2 days
subject to

availability

5mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713290600
Diameter: 6mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 15mm
Overall Length: 57mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713290800
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 63mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £30.29
SKU: 1713291000
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 14mm
Length Below Shank: 25mm
Overall Length: 72mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £47.72
SKU: 1713291200
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 30mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £65.08
SKU: 1713291600
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 38mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16mm x R1.0 MASTERMILL-VX EXT/NECK

List Price: £107.96
SKU: 1713292000
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19mm

1-2 days
subject to

availability

20mm x R1.0 MASTERMILL-VX EXT/NECK

List Price: £193.81
SKU: 1713299001
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 17mm
Overall Length: 57mm
Neck Dia: 2.7mm

1-2 days
subject to

availability

3mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299002
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 12mm
Overall Length: 54mm
Neck Dia: 2.7mm

1-2 days
subject to

availability

3mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299003
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 17mm
Overall Length: 57mm
Neck Dia: 2.7mm

1-2 days
subject to

availability

3mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299004
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 22mm
Overall Length: 63mm
Neck Dia: 3.7mm

1-2 days
subject to

availability

4mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299005
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 15mm
Overall Length: 57mm
Neck Dia: 3.7mm

1-2 days
subject to

availability

4mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299006
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 8mm
Length Below Shank: 22mm
Overall Length: 63mm
Neck Dia: 3.7mm

1-2 days
subject to

availability

4mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299007
Diameter: 5mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 27mm
Overall Length: 67mm
Neck Dia: 4.7mm

1-2 days
subject to

availability

5mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299008
Diameter: 5mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 17mm
Overall Length: 57mm
Neck Dia: 4.7mm

1-2 days
subject to

availability

5mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299009
Diameter: 5mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 27mm
Overall Length: 67mm
Neck Dia: 4.7mm

1-2 days
subject to

availability

5mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299010
Diameter: 6mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 20mm
Overall Length: 62mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299011
Diameter: 6mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 32mm
Overall Length: 74mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R0.3 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299012
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 15mm
Overall Length: 57mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299013
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 20mm
Overall Length: 62mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299014
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 32mm
Overall Length: 74mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R0.5 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299015
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 15mm
Overall Length: 57mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R1.0 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299016
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 20mm
Overall Length: 62mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6mm x R1.0 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299017
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 10mm
Length Below Shank: 32mm
Overall Length: 74mm
Neck Dia: 5.5mm

1-2 days
subject to

availability

6m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £21.76
SKU: 1713299018
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 30mm
Overall Length: 73mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8m x R0.5 MASTERMILL-VX EXT/NECK

List Price: £33.44
SKU: 1713299019
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 46mm
Overall Length: 90mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8m x R0.5 MASTERMILL-VX EXT/NECK

List Price: £36.03
SKU: 1713299020
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 63mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £30.29
SKU: 1713299021
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 30mm
Overall Length: 73mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £33.44
SKU: 1713299022
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 46mm
Overall Length: 90mm
Neck Dia: 7.5mm

1-2 days
subject to

availability

8m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £36.03
SKU: 1713299023
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 14mm
Length Below Shank: 35mm
Overall Length: 82mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10m x R0.5 MASTERMILL-VX EXT/NECK

List Price: £54.44
SKU: 1713299024
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 14mm
Length Below Shank: 55mm
Overall Length: 102mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10m x R0.5 MASTERMILL-VX EXT/NECK

List Price: £57.24
SKU: 1713299025
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 14mm
Length Below Shank: 25mm
Overall Length: 82mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £47.72
SKU: 1713299026
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 14mm
Length Below Shank: 35mm
Overall Length: 82mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £54.44
SKU: 1713299027
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 14mm
Length Below Shank: 55mm
Overall Length: 102mm
Neck Dia: 9.2mm

1-2 days
subject to

availability

10m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £57.24
SKU: 1713299028
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 40mm
Overall Length: 93mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R0.5 MASTERMILL-VX EXT/NECK

List Price: £68.27
SKU: 1713299029
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 64mm
Overall Length: 117mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R0.5 MASTERMILL-VX EXT/NECK

List Price: £87.26
SKU: 1713299030
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 30mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £87.00
SKU: 1713299031
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 40mm
Overall Length: 93mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £68.27
SKU: 1713299032
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 64mm
Overall Length: 117mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £87.26
SKU: 1713299033
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 30mm
Overall Length: 83mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £65.08
SKU: 1713299034
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 40mm
Overall Length: 93mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £68.27
SKU: 1713299035
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 16mm
Length Below Shank: 64mm
Overall Length: 117mm
Neck Dia: 11mm

1-2 days
subject to

availability

12m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £87.26
SKU: 1713299036
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 55mm
Overall Length: 109mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £137.01
SKU: 1713299037
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 87mm
Overall Length: 141mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £147.86
SKU: 1713299038
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 38mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £107.96
SKU: 1713299039
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 55mm
Overall Length: 109mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £137.01
SKU: 1713299040
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 87mm
Overall Length: 141mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £147.86
SKU: 1713299041
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 38mm
Overall Length: 92mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R3.0 MASTERMILL-VX EXT/NECK

List Price: £107.96
SKU: 1713299042
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 55mm
Overall Length: 109mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R3.0 MASTERMILL-VX EXT/NECK

List Price: £137.01
SKU: 1713299043
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 22mm
Length Below Shank: 87mm
Overall Length: 141mm
Neck Dia: 15mm

1-2 days
subject to

availability

16m x R3.0 MASTERMILL-VX EXT/NECK

List Price: £147.86
SKU: 1713299044
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 70mm
Overall Length: 124mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £246.89
SKU: 1713299045
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 110mm
Overall Length: 164mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R1.0 MASTERMILL-VX EXT/NECK

List Price: £286.59
SKU: 1713299046
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £193.81
SKU: 1713299047
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 70mm
Overall Length: 124mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £246.89
SKU: 1713299048
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 110mm
Overall Length: 164mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R2.0 MASTERMILL-VX EXT/NECK

List Price: £286.59
SKU: 1713299049
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 50mm
Overall Length: 104mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R3.0 MASTERMILL-VX EXT/NECK

List Price: £193.81
SKU: 1713299050
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 70mm
Overall Length: 124mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R3.0 MASTERMILL-VX EXT/NECK

List Price: £246.89
SKU: 1713299051
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 26mm
Length Below Shank: 110mm
Overall Length: 164mm
Neck Dia: 19mm

1-2 days
subject to

availability

20m x R3.0 MASTERMILL-VX EXT/NECK

List Price: £286.59
