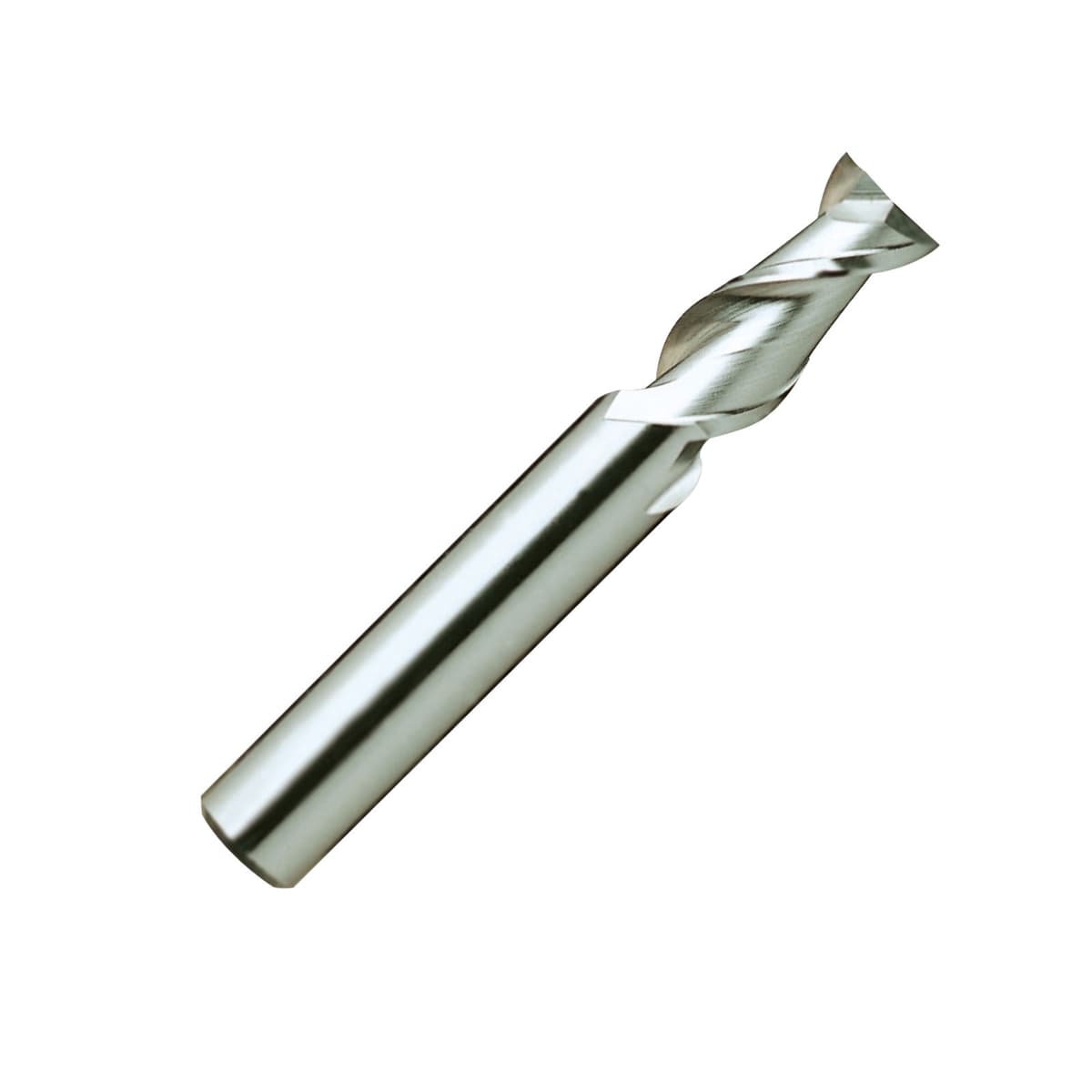

Alu-XP 151303 Series 2 Flute Carbide End Mill for Aluminium & Non-Ferrous Machining

Series: 151303

Alu-XP tools with Òmirror polishedÓ flutes allow for smooth chip evacuation, giving better surface finish and wear resistance. Cutting edges are optimised to minimise vibration, and 3-flute tools have a tight diameter tolerance giving excellent process reliability.

Designed specifically for high speed machining of aluminium and other non-ferrous materials - Outstanding performance on aluminium, forging and cast aluminium alloys. The tools in this range are suitable for Aluminium and some for Copper and Acrylic.

Features:
  • Excellent surface finishes.
  • Superior chip removal
  • Micrograin solid carbide substrate
  • Mirror polished Flutes
  • Suitable for high speed machining of aluminium and other non-ferrous materials
  • Corner protected.
Description
D1
D2
L1
L2
C1
Diameter
Shank Diameter
Cutting Length
Overall Length
Chamfer
Stock
Price
Add To Cart
SKU: 1513030100
Diameter: 1mm
Shank Diameter: 6mm
Cutting Length: 3mm
Overall Length: 50mm
Chamfer: 0.04mm

1-2 days
subject to

availability

1mm x 50mm OAL ALU-XP 2FL 45DEG

List Price: £9.58
SKU: 1513030150
Diameter: 1.5mm
Shank Diameter: 6mm
Cutting Length: 5mm
Overall Length: 50mm
Chamfer: 0.04mm

1-2 days
subject to

availability

1.5mm x 50mm OAL ALU-XP 2FL 45DEG

List Price: £9.58
SKU: 1513030200
Diameter: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Overall Length: 50mm
Chamfer: 0.04mm

1-2 days
subject to

availability

2mm 2FL 45DEG CARB ALU-XP

List Price: £9.58
SKU: 1513030250
Diameter: 2.5mm
Shank Diameter: 6mm
Cutting Length: 8mm
Overall Length: 55mm
Chamfer: 0.04mm

1-2 days
subject to

availability

2.5mm x 55mm OAL ALU-XP 2FL 45DEG

List Price: £9.00
SKU: 1513030300
Diameter: 3mm
Shank Diameter: 6mm
Cutting Length: 8mm
Overall Length: 57mm
Chamfer: 0.05mm

1-2 days
subject to

availability

3mm 2FL 45DEG CARB ALU-XP

List Price: £9.06
SKU: 1513030400
Diameter: 4mm
Shank Diameter: 6mm
Cutting Length: 11mm
Overall Length: 57mm
Chamfer: 0.05mm

1-2 days
subject to

availability

4mm 2FL 45DEG CARB ALU-XP

List Price: £12.34
SKU: 1513030500
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
Chamfer: 0.05mm

1-2 days
subject to

availability

5mm 2FL 45DEG CARB ALU-XP

List Price: £12.34
SKU: 1513030600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 57mm
Chamfer: 0.05mm

1-2 days
subject to

availability

6mm 2FL 45DEG CARB ALU-XP

List Price: £12.34
SKU: 1513030800
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 19mm
Overall Length: 63mm
Chamfer: 0.05mm

1-2 days
subject to

availability

8mm 2FL 45DEG CARB ALU-XP

List Price: £19.74
SKU: 1513031000
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
Chamfer: 0.1mm

1-2 days
subject to

availability

10mm 2FL 45DEG CARB ALU-XP

List Price: £29.77
SKU: 1513031200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Chamfer: 0.1mm

1-2 days
subject to

availability

12mm 2FL 45DEG CARB ALU-XP

List Price: £41.70
SKU: 1513031400
Diameter: 14mm
Shank Diameter: 14mm
Cutting Length: 26mm
Overall Length: 83mm
Chamfer: 0.1mm

1-2 days
subject to

availability

14mm 2FL 45DEG CARB ALU-XP

List Price: £56.84
SKU: 1513031600
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
Chamfer: 0.1mm

1-2 days
subject to

availability

16mm 2FL 45DEG CARB ALU-XP

List Price: £71.72
SKU: 1513031800
Diameter: 18mm
Shank Diameter: 18mm
Cutting Length: 32mm
Overall Length: 92mm
Chamfer: 0.1mm

1-2 days
subject to

availability

18mm 2FL 45DEG CARB ALU-XP

List Price: £93.23
SKU: 1513032000
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
Chamfer: 0.1mm

1-2 days
subject to

availability

20mm 2FL 45DEG CARB ALU-XP

List Price: £120.70
