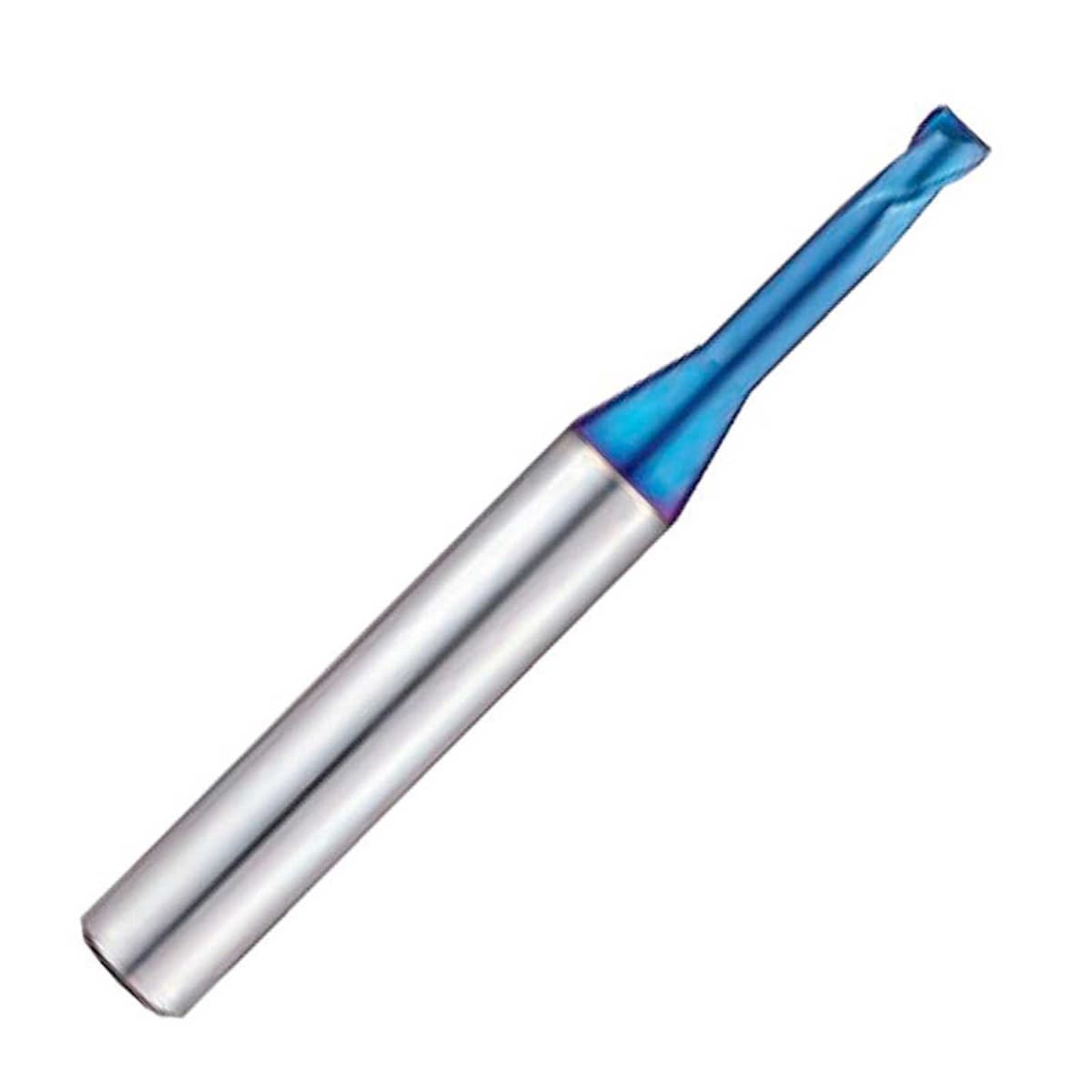

Pulsar Blue 100450 series 2 flute corner radius rib processing end mill..
Pulsar Blue 100450 series 2 flute corner radius rib processing end mill..
Pulsar Blue 100450 series 2 flute corner radius rib processing end mill technical drawing..

Pulsar Blue 101850 Series 2 Flute Corner Radius Rib Processing End Mill for Hardened Steel

Series: 101850
101850
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1018500100
Diameter: 1mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 1.5mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability

1.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500102
Diameter: 1mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 1.5mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability

1.0MXR0.3 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500152
Diameter: 1.5mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 2.5mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability

1.5MXR0.2 2FL RIB PULSAR BLUE

List Price: £30.52
SKU: 1018500153
Diameter: 1.5mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 2.5mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability

1.5MXR0.2 2FL RIB PULSAR BLUE

List Price: £30.52
SKU: 1018500201
Diameter: 2mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500203
Diameter: 2mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 10mm
Overall Length: 55mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500205
Diameter: 2mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.3 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500207
Diameter: 2mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.3 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500301
Diameter: 3mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 8mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500303
Diameter: 3mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500304
Diameter: 3mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500305
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 8mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.3 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500307
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.3 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500403
Diameter: 4mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 3.85mm

1-2 days
subject to

availability

4.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500600
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 5.85mm

1-2 days
subject to

availability

6.0MXR0.5 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500901
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 16mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.5 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500904
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 20mm
Overall Length: 55mm
Neck Dia: 3.85mm

1-2 days
subject to

availability

4.0MXR0.5 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500910
Diameter: 1mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 1.5mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability

1.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £30.52
SKU: 1018500911
Diameter: 1mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 1.5mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability

1.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500913
Diameter: 1.5mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 2.5mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability

1.5MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500914
Diameter: 1.5mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 2.5mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability

1.5MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500917
Diameter: 2mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.5 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500918
Diameter: 2mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 12mm
Overall Length: 55mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.5 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500919
Diameter: 3mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 4mm
Length Below Shank: 10mm
Overall Length: 55mm
Neck Dia: 2.85mm

1-2 days
subject to

availability

3.0MXR0.3 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500926
Diameter: 1mm
Radius: 0.1mm
Shank Diameter: 6mm
Cutting Length: 1.5mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability

1.0MXR0.1 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500927
Diameter: 2mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 3mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability

2.0MXR0.2 2FL RIB PULSAR BLUE

List Price: £31.76
SKU: 1018500929
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 7.7mm

1-2 days
subject to

availability

8.0MXR0.5 2FL RIB PULSAR BLUE

List Price: £37.48
