ZCC-CT 1536ST05C ST Series Solid Coated Carbide Through Coolant Twist Drill for Steel, Stainless Steel & Heat-Resistant-Alloy Drilling - 5xD.
ZCC-CT 1536ST05C ST Series Solid Coated Carbide Through Coolant Twist Drill for Steel, Stainless Steel & Heat-Resistant-Alloy Drilling - 5xD.
ZCC-CT 1536ST05C ST Series Solid Coated Carbide Through Coolant Twist Drill for Steel, Stainless Steel & Heat-Resistant-Alloy Drilling - 5xD.

ZCC-CT 1536ST05C ST Series Solid Coated Carbide Through Coolant Twist Drill for Steel, Stainless Steel & Heat-Resistant-Alloy Drilling - 5xD

Series: 1536ST05C

Features:

  • For high-speed drilling of Tough Steel, Stainless Steel and Heat-Resistant Alloys
  • TiAlN coated for increased tool life
  • Optimised Chipbreaker and sharp cutting edge to avoid built up edge
  • High Rake angle
  • Through coolant
  • 5xD jobber drill

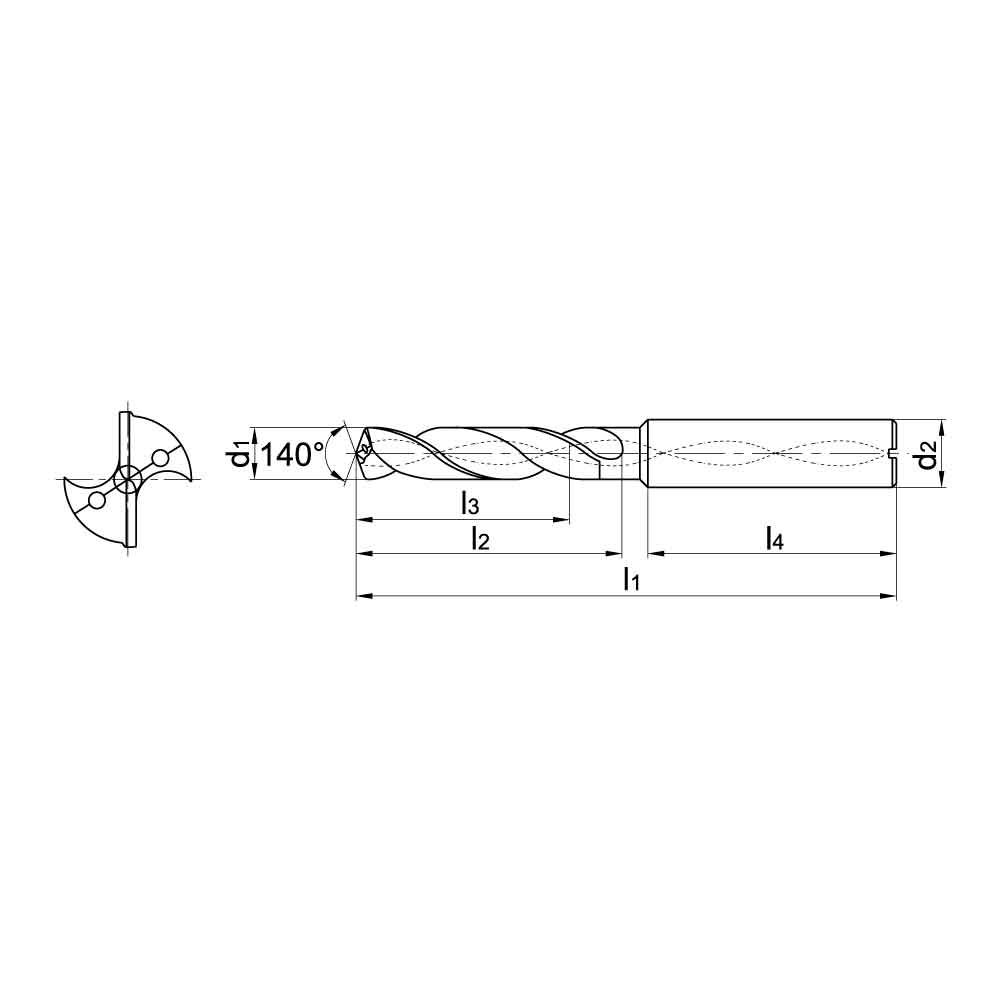

Description
D1
D2
L1
L3
L4
L2
Diameter
Shank Diameter
Flute Length
Effective Drill Depth
Shank Length
Overall Length
Stock
Price
Add To Cart
SKU: 1536ST05C0300KDG303
Diameter: 3mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

Inox-Drill Ø 3.00; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0310KDG303
Diameter: 3.1mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

3.1MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0320KDG303
Diameter: 3.2mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

3.2MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0330KDG303
Diameter: 3.3mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

Inox-Drill Ø 3.30; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0340KDG303
Diameter: 3.4mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

Inox-Drill Ø 3.40; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0350KDG303
Diameter: 3.5mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

Inox-Drill Ø 3.50; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0360KDG303
Diameter: 3.6mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

Inox-Drill Ø 3.60; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0370KDG303
Diameter: 3.7mm
Shank Diameter: 6mm
Flute Length: 28mm
Effective Drill Depth: 23mm
Shank Length: 36mm
Overall Length: 66mm

1-2 days
subject to

availability

3.7MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0380KDG303
Diameter: 3.8mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 3.80; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0390KDG303
Diameter: 3.9mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 3.90; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0400KDG303
Diameter: 4mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

4MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0410KDG303
Diameter: 4.1mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

4.1MM 5XD JOBBER DRILL ST SERIES THROUGH COOLANT

List Price: £39.80
SKU: 1536ST05C0420KDG303
Diameter: 4.2mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

4.2MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0430KDG303
Diameter: 4.3mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 4.30; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0440KDG303
Diameter: 4.4mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 4.40; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0450KDG303
Diameter: 4.5mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 4.50; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0460KDG303
Diameter: 4.6mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 4.60; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0470KDG303
Diameter: 4.7mm
Shank Diameter: 6mm
Flute Length: 36mm
Effective Drill Depth: 29mm
Shank Length: 36mm
Overall Length: 74mm

1-2 days
subject to

availability

Inox-Drill Ø 4.70; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0480KDG303
Diameter: 4.8mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 4.80; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0490KDG303
Diameter: 4.9mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

4.9MM 5XD JOBBER DRILL ST SERIES THROUGH COOLANT

List Price: £39.80
SKU: 1536ST05C0500KDG303
Diameter: 5mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

5MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0510KDG303
Diameter: 5.1mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

5.1MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0520KDG303
Diameter: 5.2mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.20; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0530KDG303
Diameter: 5.3mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.30; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0540KDG303
Diameter: 5.4mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.40; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0550KDG303
Diameter: 5.5mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.50; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0555KDG303
Diameter: 5.55mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability


subject to

availability

Inox-Drill Ø 5.55; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0560KDG303
Diameter: 5.6mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.60; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0570KDG303
Diameter: 5.7mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.70; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0580KDG303
Diameter: 5.8mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.80; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0590KDG303
Diameter: 5.9mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

Inox-Drill Ø 5.90; l=5xD; Shaft HA; coated; IC

List Price: £39.80
SKU: 1536ST05C0600KDG303
Diameter: 6mm
Shank Diameter: 6mm
Flute Length: 44mm
Effective Drill Depth: 35mm
Shank Length: 36mm
Overall Length: 82mm

1-2 days
subject to

availability

6MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £39.80
SKU: 1536ST05C0610KDG303
Diameter: 6.1mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

6.1MM 5XD ST SERIES COATED CARBIDE

List Price: £49.76
SKU: 1536ST05C0620KDG303
Diameter: 6.2mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 6.20; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0630KDG303
Diameter: 6.3mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

6.3MM 5XD ST SERIES COATED CARBIDE THROUGH COOLANT

List Price: £49.76
SKU: 1536ST05C0640KDG303
Diameter: 6.4mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 6.40; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0650KDG303
Diameter: 6.5mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 6.50; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0660KDG303
Diameter: 6.6mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 6.60; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0670KDG303
Diameter: 6.7mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

6.7MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £49.76
SKU: 1536ST05C0680KDG303
Diameter: 6.8mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

6.8MM 5XD THRU COOLANT COATED CARBIDE DRILL

List Price: £49.76
SKU: 1536ST05C0690KDG303
Diameter: 6.9mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

6.9MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £49.76
SKU: 1536ST05C0700KDG303
Diameter: 7mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

7MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £49.76
SKU: 1536ST05C0710KDG303
Diameter: 7.1mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.10; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0720KDG303
Diameter: 7.2mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.20; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0730KDG303
Diameter: 7.3mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.30; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0740KDG303
Diameter: 7.4mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.40; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0750KDG303
Diameter: 7.5mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

7.5MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £49.76
SKU: 1536ST05C0760KDG303
Diameter: 7.6mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.60; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0770KDG303
Diameter: 7.7mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.70; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0780KDG303
Diameter: 7.8mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.80; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0790KDG303
Diameter: 7.9mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

Inox-Drill Ø 7.90; l=5xD; Shaft HA; coated; IC

List Price: £49.76
SKU: 1536ST05C0800KDG303
Diameter: 8mm
Shank Diameter: 8mm
Flute Length: 53mm
Effective Drill Depth: 43mm
Shank Length: 36mm
Overall Length: 91mm

1-2 days
subject to

availability

8MM 5XD JOBBER DRILL ST SERIES THROUGH COOLANT

List Price: £49.76
SKU: 1536ST05C0810KDG303
Diameter: 8.1mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 8.10; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0820KDG303
Diameter: 8.2mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 8.20; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0830KDG303
Diameter: 8.3mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm
In Stock

8.3MM 5XD JOBBER DRILL ST SERIES THROUGH COOLANT

List Price: £65.80
SKU: 1536ST05C0840KDG303
Diameter: 8.4mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm
In Stock

8.4MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0850KDG303
Diameter: 8.5mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm
In Stock

8.5MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0860KDG303
Diameter: 8.6mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

8.6MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0870KDG303
Diameter: 8.7mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

8.7MM 5XD THROUGH COOLANT COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0880KDG303
Diameter: 8.8mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

8.8MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0890KDG303
Diameter: 8.9mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 8.90; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0900KDG303
Diameter: 9mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

9MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0910KDG303
Diameter: 9.1mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.10; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0920KDG303
Diameter: 9.2mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.20; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0930KDG303
Diameter: 9.3mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.30; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0940KDG303
Diameter: 9.4mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.40; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0950KDG303
Diameter: 9.5mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

9.5MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C0960KDG303
Diameter: 9.6mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.60; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0970KDG303
Diameter: 9.7mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.70; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0980KDG303
Diameter: 9.8mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.80; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C0990KDG303
Diameter: 9.9mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

Inox-Drill Ø 9.90; l=5xD; Shaft HA; coated; IC

List Price: £65.80
SKU: 1536ST05C1000KDG303
Diameter: 10mm
Shank Diameter: 10mm
Flute Length: 61mm
Effective Drill Depth: 49mm
Shank Length: 40mm
Overall Length: 103mm

1-2 days
subject to

availability

10MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £65.80
SKU: 1536ST05C1010KDG303
Diameter: 10.1mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.10; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1020KDG303
Diameter: 10.2mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.20; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1025KDG303
Diameter: 10.25mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm


subject to

availability

Inox-Drill Ø 10.25; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1030KDG303
Diameter: 10.3mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.30; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1040KDG303
Diameter: 10.4mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.40; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1050KDG303
Diameter: 10.5mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

10.5MM ST SERIES COATED CARBIDE JOBBER DRILL

List Price: £88.53
SKU: 1536ST05C1060KDG303
Diameter: 10.6mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.60; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1070KDG303
Diameter: 10.7mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.70; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1080KDG303
Diameter: 10.8mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.80; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1090KDG303
Diameter: 10.9mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 10.90; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1100KDG303
Diameter: 11mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

11MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £88.53
SKU: 1536ST05C1110KDG303
Diameter: 11.1mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.10; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1120KDG303
Diameter: 11.2mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.20; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1130KDG303
Diameter: 11.3mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.30; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1140KDG303
Diameter: 11.4mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.40; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1150KDG303
Diameter: 11.5mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.50; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1160KDG303
Diameter: 11.6mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.60; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1170KDG303
Diameter: 11.7mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.70; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1180KDG303
Diameter: 11.8mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

11.8MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £88.53
SKU: 1536ST05C1190KDG303
Diameter: 11.9mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

Inox-Drill Ø 11.90; l=5xD; Shaft HA; coated; IC

List Price: £88.53
SKU: 1536ST05C1200KDG303
Diameter: 12mm
Shank Diameter: 12mm
Flute Length: 71mm
Effective Drill Depth: 56mm
Shank Length: 45mm
Overall Length: 118mm

1-2 days
subject to

availability

12MM CARBIDE JOBEER DRILL-THROUGH COOLANT-ST SERIES

List Price: £88.53
SKU: 1536ST05C1220KDG303
Diameter: 12.2mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

12.2MM CARBIDE JOBBER DRILL-THROUGH COOLANT-ST SERIES

List Price: £124.16
SKU: 1536ST05C1230KDG303
Diameter: 12.3mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 12.30; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1250KDG303
Diameter: 12.5mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 12.50; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1270KDG303
Diameter: 12.7mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 12.70; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1280KDG303
Diameter: 12.8mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 12.80; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1300KDG303
Diameter: 13mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 13.00; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1310KDG303
Diameter: 13.1mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 13.10; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1350KDG303
Diameter: 13.5mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 13.50; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1380KDG303
Diameter: 13.8mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

Inox-Drill Ø 13.80; l=5xD; Shaft HA; coated; IC

List Price: £124.16
SKU: 1536ST05C1400KDG303
Diameter: 14mm
Shank Diameter: 14mm
Flute Length: 77mm
Effective Drill Depth: 60mm
Shank Length: 45mm
Overall Length: 124mm

1-2 days
subject to

availability

14MM 5XD ST SERIES COATED CARBIDE DRILL

List Price: £124.16
SKU: 1536ST05C1425KDG303
Diameter: 14.25mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm


subject to

availability

Inox-Drill Ø 14.25; l=5xD; Shaft HA; coated; IC

List Price: £130.36
SKU: 1536ST05C1430KDG303
Diameter: 14.3mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

Inox-Drill Ø 14.30; l=5xD; Shaft HA; coated; IC

List Price: £175.13
SKU: 1536ST05C1450KDG303
Diameter: 14.5mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

Inox-Drill Ø 14.50; l=5xD; Shaft HA; coated; IC

List Price: £175.13
SKU: 1536ST05C1480KDG303
Diameter: 14.8mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

Inox-Drill Ø 14.80; l=5xD; Shaft HA; coated; IC

List Price: £175.13
SKU: 1536ST05C1500KDG303
Diameter: 15mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

15MM 5XD ST SERIES THROUGH COOLANT CARBIDE DRILL

List Price: £175.13
SKU: 1536ST05C1510KDG303
Diameter: 15.1mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

Inox-Drill Ø 15.10; l=5xD; Shaft HA; coated; IC

List Price: £175.13
SKU: 1536ST05C1550KDG303
Diameter: 15.5mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

Inox-Drill Ø 15.50; l=5xD; Shaft HA; coated; IC

List Price: £175.13
SKU: 1536ST05C1580KDG303
Diameter: 15.8mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability

Inox-Drill Ø 15.80; l=5xD; Shaft HA; coated; IC

List Price: £175.13
SKU: 1536ST05C1600KDG303
Diameter: 16mm
Shank Diameter: 16mm
Flute Length: 83mm
Effective Drill Depth: 63mm
Shank Length: 48mm
Overall Length: 133mm

1-2 days
subject to

availability


subject to

availability

List Price: £175.13
SKU: 1536ST05C1650KDG303
Diameter: 16.5mm
Shank Diameter: 18mm
Flute Length: 93mm
Effective Drill Depth: 71mm
Shank Length: 48mm
Overall Length: 143mm

1-2 days
subject to

availability


subject to

availability

List Price: £222.16
SKU: 1536ST05C1680KDG303
Diameter: 16.8mm
Shank Diameter: 18mm
Flute Length: 93mm
Effective Drill Depth: 71mm
Shank Length: 48mm
Overall Length: 143mm

1-2 days
subject to

availability


subject to

availability

List Price: £222.16
SKU: 1536ST05C1700KDG303
Diameter: 17mm
Shank Diameter: 18mm
Flute Length: 93mm
Effective Drill Depth: 71mm
Shank Length: 48mm
Overall Length: 143mm

1-2 days
subject to

availability


subject to

availability

List Price: £222.16
SKU: 1536ST05C1750KDG303
Diameter: 17.5mm
Shank Diameter: 18mm
Flute Length: 93mm
Effective Drill Depth: 71mm
Shank Length: 48mm
Overall Length: 143mm

1-2 days
subject to

availability


subject to

availability

List Price: £222.16
SKU: 1536ST05C1780KDG303
Diameter: 17.8mm
Shank Diameter: 18mm
Flute Length: 93mm
Effective Drill Depth: 71mm
Shank Length: 48mm
Overall Length: 143mm

1-2 days
subject to

availability


subject to

availability

List Price: £222.16
SKU: 1536ST05C1800KDG303
Diameter: 18mm
Shank Diameter: 18mm
Flute Length: 93mm
Effective Drill Depth: 71mm
Shank Length: 48mm
Overall Length: 143mm

1-2 days
subject to

availability


subject to

availability

List Price: £222.16
SKU: 1536ST05C1850KDG303
Diameter: 18.5mm
Shank Diameter: 20mm
Flute Length: 101mm
Effective Drill Depth: 77mm
Shank Length: 50mm
Overall Length: 153mm

1-2 days
subject to

availability


subject to

availability

List Price: £284.69
SKU: 1536ST05C1880KDG303
Diameter: 18.8mm
Shank Diameter: 20mm
Flute Length: 101mm
Effective Drill Depth: 77mm
Shank Length: 50mm
Overall Length: 153mm

1-2 days
subject to

availability


subject to

availability

List Price: £284.69
SKU: 1536ST05C1900KDG303
Diameter: 19mm
Shank Diameter: 20mm
Flute Length: 101mm
Effective Drill Depth: 77mm
Shank Length: 50mm
Overall Length: 153mm

1-2 days
subject to

availability


subject to

availability

List Price: £284.69
SKU: 1536ST05C1950KDG303
Diameter: 19.5mm
Shank Diameter: 20mm
Flute Length: 101mm
Effective Drill Depth: 77mm
Shank Length: 50mm
Overall Length: 153mm

1-2 days
subject to

availability


subject to

availability

List Price: £284.69
SKU: 1536ST05C1980KDG303
Diameter: 19.8mm
Shank Diameter: 20mm
Flute Length: 101mm
Effective Drill Depth: 77mm
Shank Length: 50mm
Overall Length: 153mm

1-2 days
subject to

availability


subject to

availability

List Price: £284.69
SKU: 1536ST05C2000KDG303
Diameter: 20mm
Shank Diameter: 20mm
Flute Length: 101mm
Effective Drill Depth: 77mm
Shank Length: 50mm
Overall Length: 153mm

1-2 days
subject to

availability


subject to

availability

List Price: £284.69
