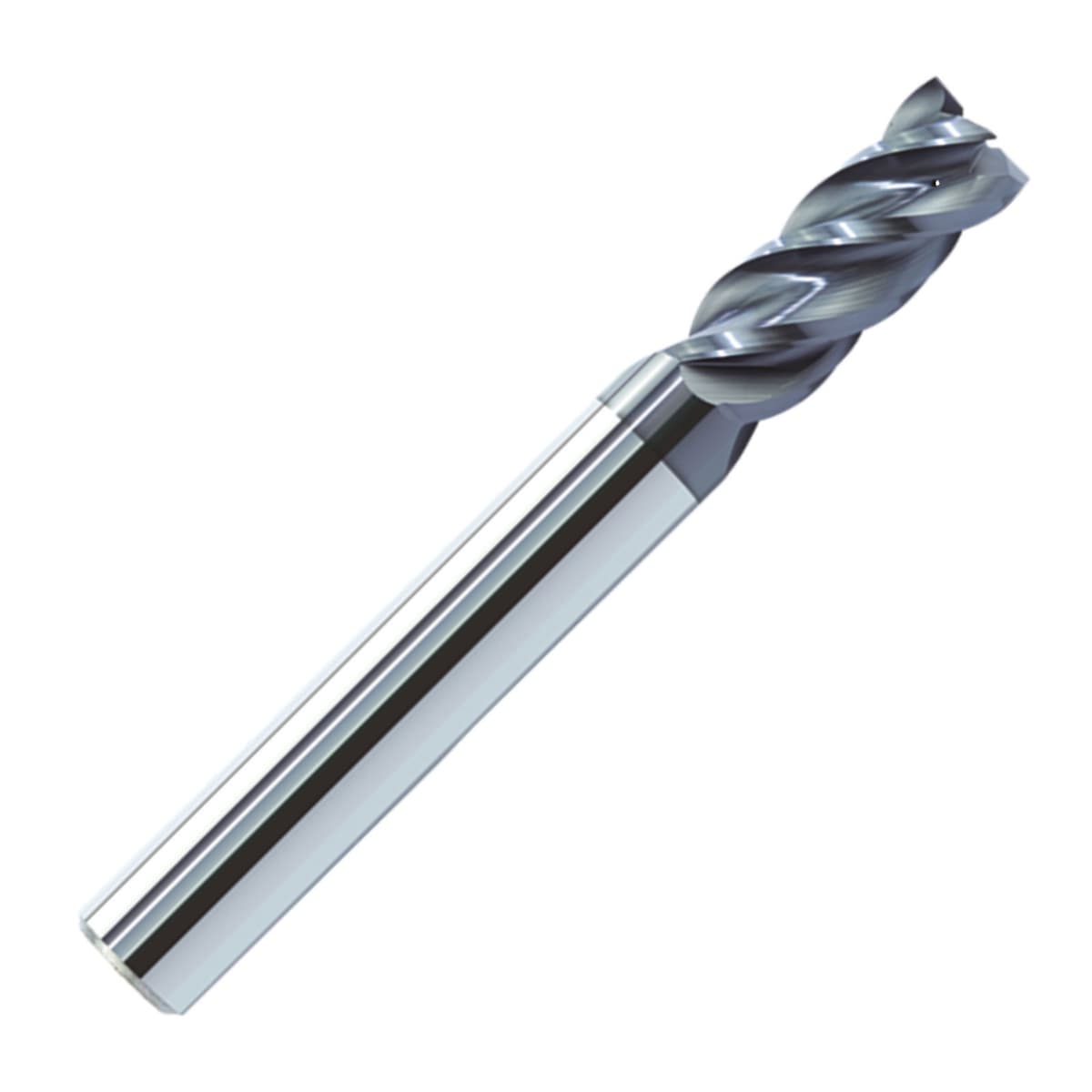

ZCC-CT VSM-4E 4 Flute AlTiN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT VSM-4E 4 Flute AlTiN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT VSM-4E 4 Flute AlTiN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing.

ZCC-CT VSM-4E 4 Flute AlTiN Coated High Performance Variable Helix Solid Carbide End Mill

Series: VSM-4E

Solid carbide standard length high performance end mills with unequal pitch for roughing and finishing of steel up to 55HrC, stainless steel, heat resistant alloys and cast iron with high metal removal rate. AlTiN (Aluminium Titanium Nitride) coated for exceptional tool life and high heat resistance. Outstanding performance on steel, stainless steel and cast iron, suitable for hardened steel.

Features: • Sharp cutting edge with unequal 38 degree and 41 degree helix angles and unequal pitch. • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting. • End mills and torus Mills. • Heat resistant alloy machining. • AlTiN (Aluminium Titanium Nitride) coated solid carbide for exceptional tool life.

Description
D1
D2
L1
L2
Diameter
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: VSM4ED100KMG405
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 25mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 10; Shaft HA; coated

List Price: £41.67
SKU: VSM4ED120KMG405
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 12; Shaft HA; coated

List Price: £56.48
SKU: VSM4ED140KMG405

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 14; Shaft HA; coated

List Price: £83.22
SKU: VSM4ED160KMG405
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 16; Shaft HA; coated

List Price: £107.87
SKU: VSM4ED200KMG405
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 20; Shaft HA; coated

List Price: £164.53
SKU: VSM4ED40KMG405
Diameter: 4mm
Shank Diameter: 6mm
Cutting Length: 11mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 4; Shaft HA; coated

List Price: £20.73
SKU: VSM4ED50KMG405
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill- Z=4 Ø 5; Shaft HA; coated

List Price: £20.73
SKU: VSM4ED60KMG405
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 16mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 6; Shaft HA; coated

List Price: £20.73
SKU: VSM4ED80KMG405
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 60mm

1-2 days
subject to

availability


subject to

availability

HPC-Solid Carbide End Mill Z=4 Ø 8; Shaft HA; coated

List Price: £30.00
