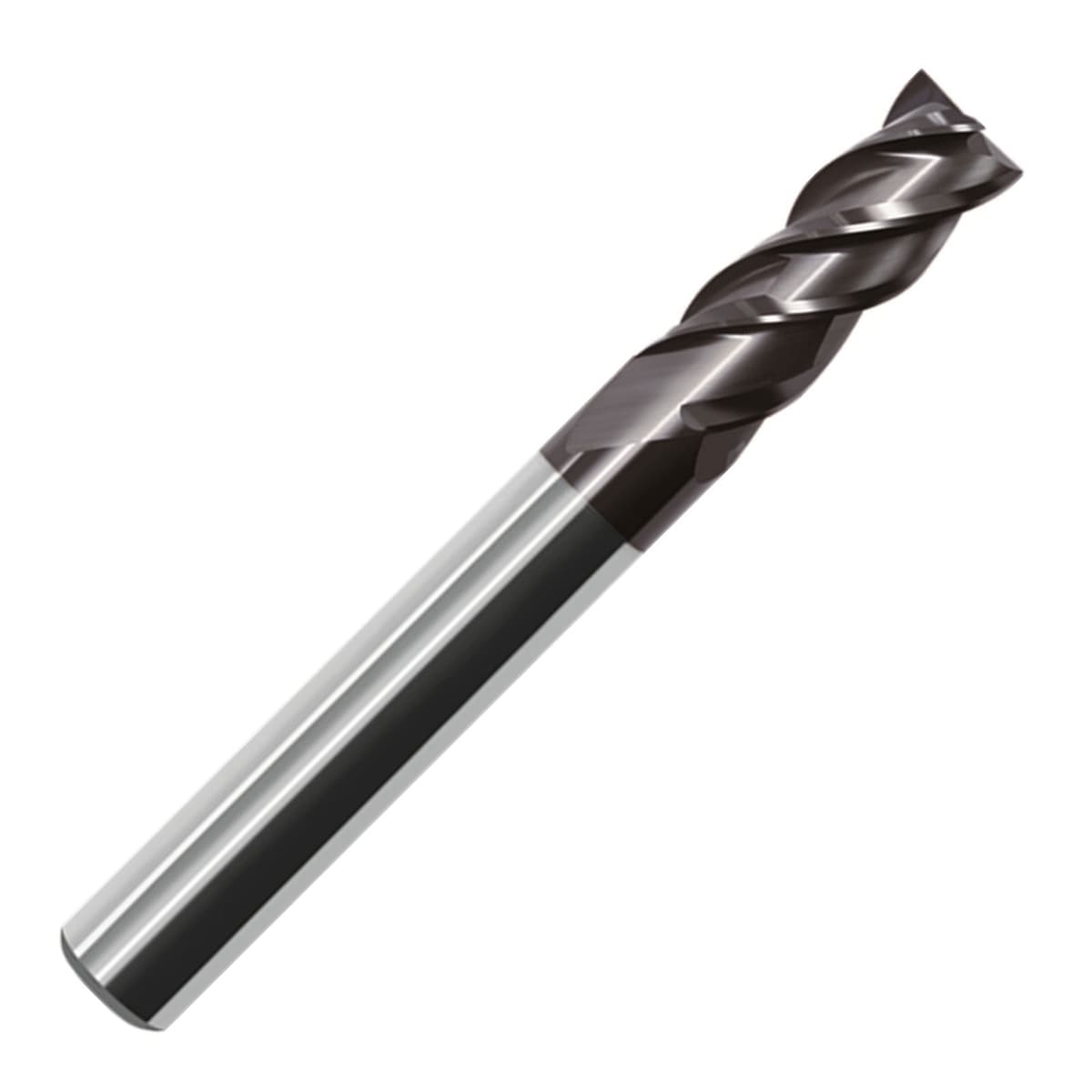

ZCC-CT UM-4R 4 Flute Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT UM-4R 4 Flute Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT UM-4R Series 4 Flute Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing.

ZCC-CT UM-4R 4 Flute Corner Radius Variable Helix End Mill

Series: UM-4R
Starting From:
£22.26excl VAT£26.71 incl. VAT

View Product Variants Table

ZCC-CT UM-4R Series 4 Flute Standard Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

  • Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch.
  • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting.
  • End mills and torus Mills.
  • HSC/HPC machining.
  • AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Stock
Price
Add To Cart
SKU: UM4RD100R05KMG405
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=0.5; Shaft HA; coated

List Price:
£46.62ex VAT £55.94 inc VAT
SKU: UM4RD100R10KMG405
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£46.62ex VAT £55.94 inc VAT
SKU: UM4RD100R20KMG405
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=2.0; Shaft HA; coated

List Price:
£46.62ex VAT £55.94 inc VAT
SKU: UM4RD100R30KMG405
Diameter: 10mm
Radius: 3mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=3.0; Shaft HA; coated

List Price:
£46.62ex VAT £55.94 inc VAT
SKU: UM4RD120R05KMG405
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=0.5; Shaft HA; coated

List Price:
£58.18ex VAT £69.82 inc VAT
SKU: UM4RD120R10KMG405
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£58.18ex VAT £69.82 inc VAT
SKU: UM4RD120R20KMG405
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=2.0; Shaft HA; coated

List Price:
£58.18ex VAT £69.82 inc VAT
SKU: UM4RD120R30KMG405
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 75mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=3.0; Shaft HA; coated

List Price:
£58.18ex VAT £69.82 inc VAT
SKU: UM4RD140R15KMG405
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 14.0; Z=4 R=1.5; Shaft HA; coated

List Price:
£55.38ex VAT £66.46 inc VAT
SKU: UM4RD160R10KMG405
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 45mm
Overall Length: 100mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£103.95ex VAT £124.74 inc VAT
SKU: UM4RD160R20KMG405
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 45mm
Overall Length: 100mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=2.0; Shaft HA; coated

List Price:
£103.95ex VAT £124.74 inc VAT
SKU: UM4RD160R30KMG405
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 45mm
Overall Length: 100mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=3.0; Shaft HA; coated

List Price:
£103.95ex VAT £124.74 inc VAT
SKU: UM4RD200R10KMG405
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 30mm
Length Below Shank: 45mm
Overall Length: 100mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£182.12ex VAT £218.54 inc VAT
SKU: UM4RD200R20KMG405
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 30mm
Length Below Shank: 45mm
Overall Length: 100mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=2.0; Shaft HA; coated

List Price:
£182.12ex VAT £218.54 inc VAT
SKU: UM4RD200R30KMG405
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 30mm
Length Below Shank: 45mm
Overall Length: 100mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=3.0; Shaft HA; coated

List Price:
£182.12ex VAT £218.54 inc VAT
SKU: UM4RD40R03KMG405
Diameter: 4mm
Radius: 0.3mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 10mm
Overall Length: 50mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 4.0; Z=4 R=0.3; Shaft HA; coated

List Price:
£22.26ex VAT £26.71 inc VAT
SKU: UM4RD40R05KMG405
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 10mm
Overall Length: 50mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 4.0; Z=4 R=0.5; Shaft HA; coated

List Price:
£22.26ex VAT £26.71 inc VAT
SKU: UM4RD50R05KMG405
Diameter: 5mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 13mm
Overall Length: 50mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 5.0; Z=4 R=0.5; Shaft HA; coated

List Price:
£22.64ex VAT £27.17 inc VAT
SKU: UM4RD50R10KMG405
Diameter: 5mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 13mm
Overall Length: 50mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 5.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£22.64ex VAT £27.17 inc VAT
SKU: UM4RD60R05KMG405
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 16mm
Overall Length: 50mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=0.5; Shaft HA; coated

List Price:
£22.64ex VAT £27.17 inc VAT
SKU: UM4RD60R10KMG405
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 16mm
Overall Length: 50mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£22.64ex VAT £27.17 inc VAT
SKU: UM4RD80R05KMG405
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 60mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=0.5; Shaft HA; coated

List Price:
£32.58ex VAT £39.10 inc VAT
SKU: UM4RD80R10KMG405
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 60mm
In Stock
Get it on Mon, 31st Jan

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=1.0; Shaft HA; coated

List Price:
£32.58ex VAT £39.10 inc VAT
