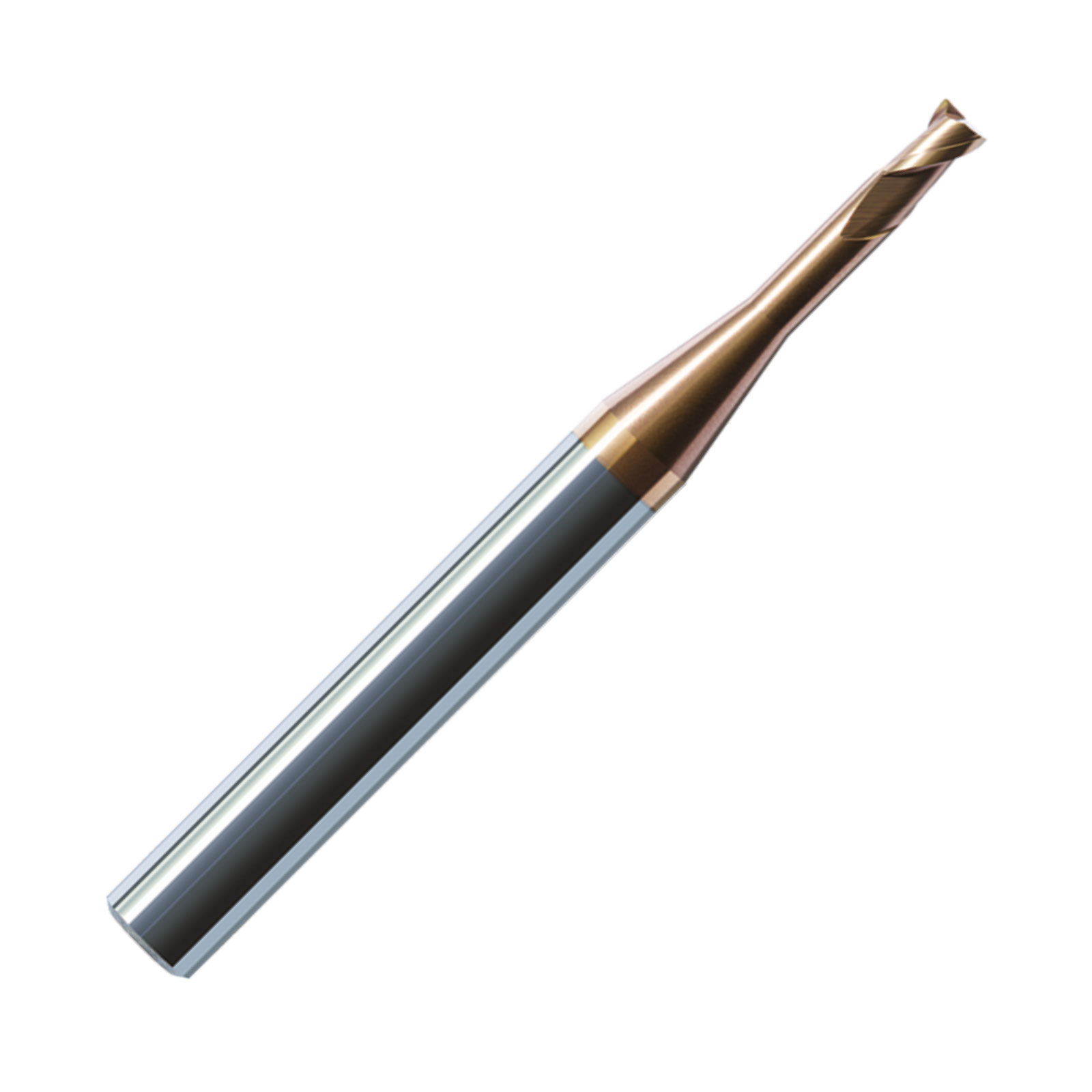

ZCC-CT HM-2EP 2 Flute Slot End Mill with Short Cutting Edge and Long Neck for Hardened Steel
Series: HM-2EP£21.33 excl. VAT
£25.60 incl. VAT
ZCC-CT HM-2EP 2 Flute Slot End Mill with Short Cutting Edge and Long Neck
- Excellent tool design covers large chip pocket, good stability and machining efficiency
- Optimized cutting geometry (Rake angle) assures edge stabitlity and sharpness
- Ultra fine grain carbide
- KMG555 Nano-ALTiN coating base for hard machining at high temperatures
- For machining upto 68HRC
Downloads
| hm-2ep-cutting-data.pdf |
Have a query?
Speak to one of our advisers today for expert advise.

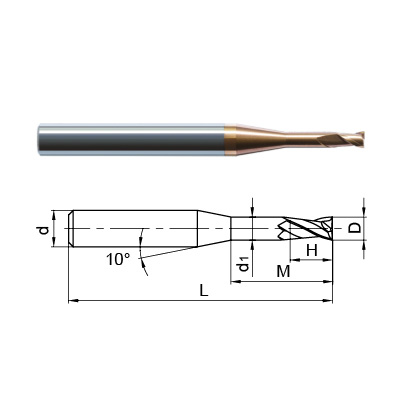

Description | Diameter / D1 | Shank Diameter / D2 | Cutting Length / L1 | Overall Length / L2 | Length Below Shank / L3 | Neck Dia | Price |
|---|---|---|---|---|---|---|---|
| HM2EPD25M10KMG555 | 2.5mm | 4mm | 3.7mm | 50mm | 10mm | 2.4mm | |
| HM2EPD25M12KMG555 | 2.5mm | 4mm | 3.7mm | 50mm | 12mm | 2.4mm | |
| HM2EPD25M14KMG555 | 2.5mm | 4mm | 3.7mm | 50mm | 14mm | 2.4mm | |
| HM2EPD25M16KMG555 | 2.5mm | 4mm | 3.7mm | 60mm | 16mm | 2.4mm | |
| HM2EPD25M18KMG555 | 2.5mm | 4mm | 3.7mm | 60mm | 18mm | 2.4mm | |
| HM2EPD25M20KMG555 | 2.5mm | 4mm | 3.7mm | 60mm | 20mm | 2.4mm | |
| HM2EPD30M06KMG555 | 3mm | 6mm | 4.5mm | 50mm | 6mm | 2.85mm | |
| HM2EPD30M08KMG555 | 3mm | 6mm | 4.5mm | 50mm | 8mm | 2.85mm | |
| HM2EPD30M10KMG555 | 3mm | 6mm | 4.5mm | 50mm | 10mm | 2.85mm | |
| HM2EPD30M12KMG555 | 3mm | 6mm | 4.5mm | 50mm | 12mm | 2.85mm | |
| HM2EPD30M14KMG555 | 3mm | 6mm | 4.5mm | 60mm | 14mm | 2.85mm | |
| HM2EPD30M16KMG555 | 3mm | 6mm | 4.5mm | 60mm | 16mm | 2.85mm | |
| HM2EPD30M18KMG555 | 3mm | 6mm | 4.5mm | 60mm | 18mm | 2.85mm | |
| HM2EPD30M20KMG555 | 3mm | 6mm | 4.5mm | 60mm | 20mm | 2.85mm | |
| HM2EPD40M12KMG555 | 4mm | 6mm | 6mm | 60mm | 12mm | 3.85mm | |
| HM2EPD40M16KMG555 | 4mm | 6mm | 6mm | 60mm | 16mm | 3.85mm | |
| HM2EPD40M20KMG555 | 4mm | 6mm | 6mm | 60mm | 20mm | 3.85mm | |
| HM2EPD40M25KMG555 | 4mm | 6mm | 6mm | 60mm | 25mm | 3.85mm | |
| HM2EPD50M16KMG555 | 5mm | 6mm | 7.5mm | 60mm | 16mm | 4.85mm | |
| HM2EPD50M25KMG555 | 5mm | 6mm | 7.5mm | 70mm | 25mm | 4.85mm | |
| HM2EPD05M04KMG555 | 0.5mm | 4mm | 0.7mm | 50mm | 4mm | 0.45mm | |
| HM2EPD05M06KMG555 | 0.5mm | 4mm | 0.7mm | 50mm | 6mm | 0.45mm | |
| HM2EPD05M08KMG555 | 0.5mm | 4mm | 0.7mm | 50mm | 8mm | 0.45mm | |
| HM2EPD08M04KMG555 | 0.8mm | 4mm | 1.2mm | 50mm | 4mm | 0.75mm | |
| HM2EPD08M06KMG555 | 0.8mm | 4mm | 1.2mm | 50mm | 6mm | 0.75mm |
Product Information
Specifications
| Category: | Milling Cutters |
| Application: | Hardened Steel |
| Range: | HM Series |
| Brand: | ZCC-CT |
| No. Flutes: | 2 Flute |
| Profile: | Square |
| Length: | Standard Length |
| Category: | Milling Tools |
| Application: | Steel |
| Substrate: | Carbide |
