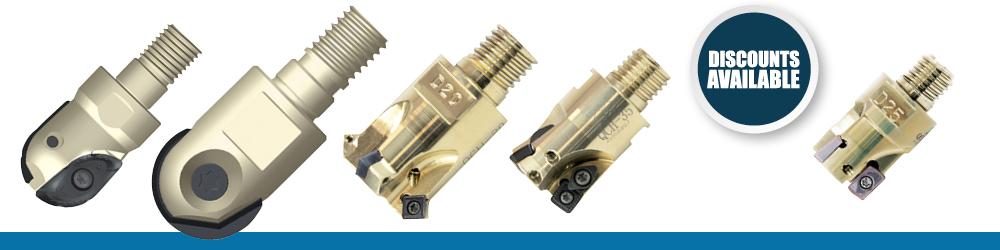

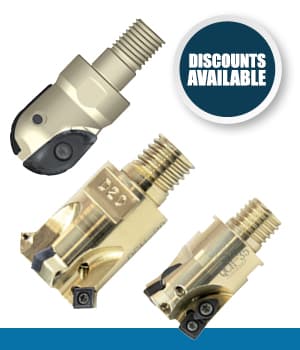

Indexable Milling Heads Indexable Milling Milling Tools

• Diameter range Ø16 – 32 mm
• For steel and cast iron
• Very suitable for roughing in mould and die industry

• Diameter range Ø20 – 40 mm
• For steel, stainless steel and cast iron
• Inserts with four cutting edges
• Ramping possible
• Double clamping system for inserts

• Diameter range Ø16 – 42 mm
• For steel, stainless steel and cast iron
• Inserts with three cutting edges
• Ramping possible
• Double clamping system for inserts

• Diameter range Ø16–40 mm
• For steel, stainless steel, cast iron, nonferrous metals and heat-resistant alloys
• For square-shoulder, slot and plunge milling
• Milling cutter with positive, soft cutting geometry
• Inserts with two cutting edges
• For metric ISO threads according to DIN standard only

• Diameter range Ø15 – 42 mm
• For steel, stainless steel and cast iron
• Screw clamping
• Mould and die industry
• For two different thicknesses of inserts

• Diameter range Ø16 – 32 mm
• For steel, stainless steel and cast iron
• Very suitable for finishing in mould and die industry
• Inserts with two cutting edges

ZCC-CT RDKW-YBM351 indexable milling inserts for use with the ZCC-CT FMR03, FMR04 and QCH-RD indexable face milling bodies.

ZCC-CT RDKW-YBC302 indexable milling inserts for use with the ZCC-CT FMR03, FMR04 and QCH-RD indexable face milling bodies.

ZCC-CT RDKW-YBC301 indexable milling inserts for use with the ZCC-CT FMR03, FMR04 and QCH-RD indexable face milling bodies.

ZCC-CT RDKW-YBG102 indexable milling inserts for use with the ZCC-CT FMR03, FMR04 and QCH-RD indexable face milling bodies.

SDMT-PM carbide milling insert

• Grade YBM253 is our best performing insert for milling stainless steel
• CVD coated
• PM chipbreaker is designed for medium machining
• SDMT geometry insert

SDMT-PM carbide milling insert

• Grade YBG205 is our best performing insert for general purpose milling including heat resistant alloys
• CVD coated
• PM chipbreaker is designed for medium machining
• SDMT geometry insert

ZCC-CT WPGT-YBM351 indexable milling inserts for use with the ZCC-CT XMR01-WPGT (end mill), XMR01-WPGT (shell mill) and QCH-WPGT ndexable face milling bodies.

ZCC-CT WPGT-YBC302 indexable milling inserts for use with the ZCC-CT XMR01-WPGT - end mill, XMR01-WPGT - shell mill and QCH-WPGT indexable face milling bodies.
