Product image of ZCC-CT SPGT050204 indexable drilling insert with EM medium cutting chipbreaker for ZTD Series U Drill..
Product image of ZCC-CT SPGT050204 indexable drilling insert with EM medium cutting chipbreaker for ZTD Series U Drill..

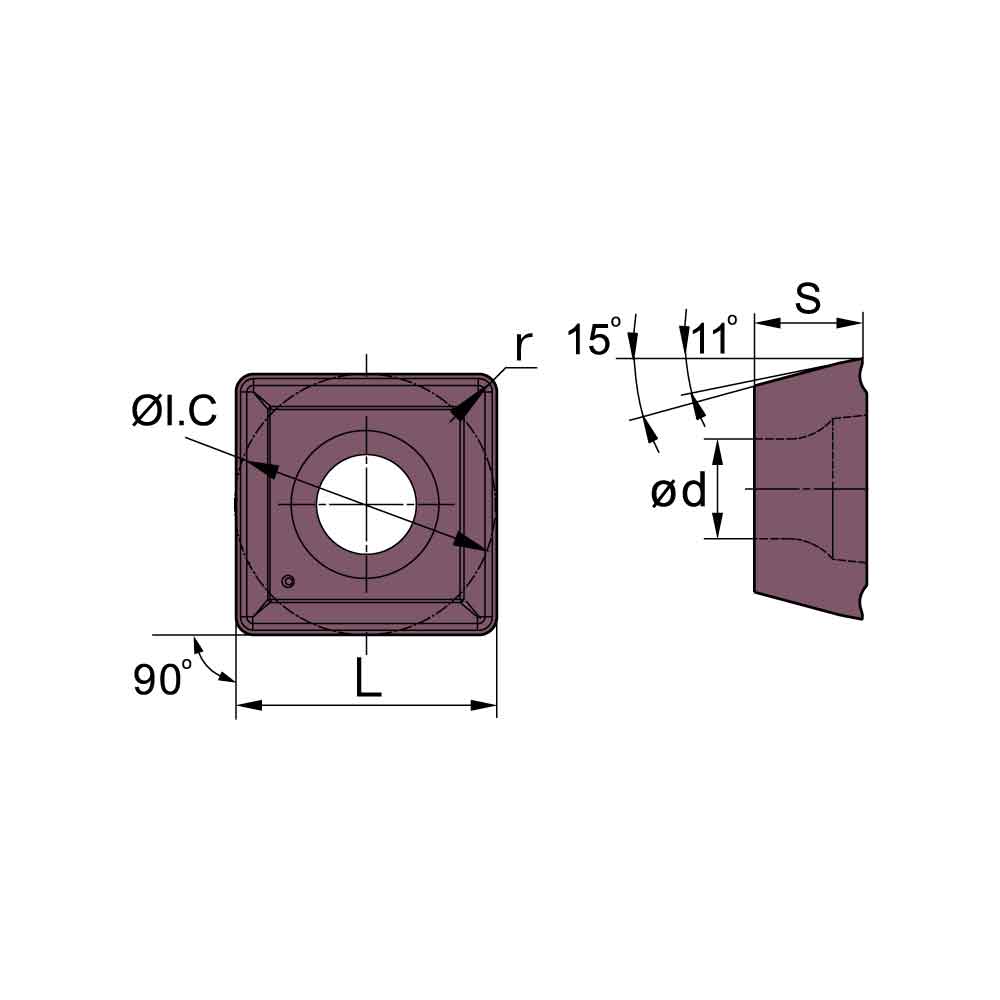

Technical drawing of ZCC-CT SPGT050204 indexable drilling insert with EM medium cutting chipbreaker for ZTD Series U Drill..

ZCC-CT SPGT050204 Indexable Drilling Insert for ZTD Series U-Drill - EM - Medium Cutting Chipbreaker

Series: SPGT050204EM
Starting From:
£5.54excl VAT£6.65 incl. VAT

View Product Variants Table

This indexable insert has a wear-resistant coating with high cutting edge strength. With the special EM chipbreaker design, it is used with the ZTD Series indexable drill bodies for drilling holes in the workpiece of stainless steels at high speeds under challenging working conditions.

The special EM chip breaker series is used for soft steel, stainless steel and heat resistant super alloys.

The benefits of using SPGT inserts from ZCC-CT are:
  • Sharp cutting edge with stronger edge line for medium cut even in interrupted cut.
  • Sharp and strong cutting edge of semi-finishing of sticky steel and austentic stainless steel.
  • ap· d.o.c. = 1~4(mm)
  • f= 0.2~0.5(mm/r)
Description
Stock
Price
Add To Cart
SKU: SPGT050204EMYBG205

1-2 days
subject to

availability

subject to availability

Insert-Drilling; positive; HC

List Price:
£5.54ex VAT £6.65 inc VAT
SKU: SPGT050204EMYBG212

1-2 days
subject to

availability

subject to availability

Insert-Drilling; positive; HC

List Price:
£5.54ex VAT £6.65 inc VAT
