ZCC-CT HM-2BP 2 Flute Ball Nose Rib Processing Slot Drill for Hardened Steel Machining

Series: HM-2BP
ZCC-CT HM-2BP 2 Flute Ball Nose Rib Processing Slot Drill For Machining Cast Iron and Nodular cast Iron, Quenched, Tempered and Hardened Steels up to 68 HRC. ZCC-CT are one of the leading carbide tools manufacturer worldwide. They supply a wide range of high quality cutting tools.

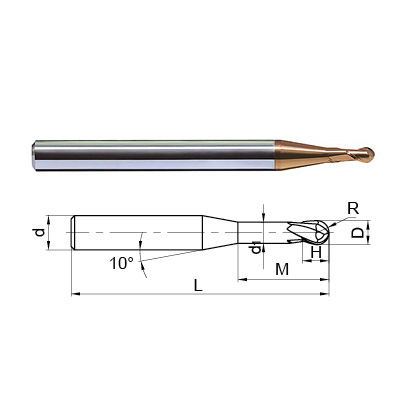

Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: HM2BPR025M04KMG555
Diameter: 0.5mm
Radius: 0.25mm
Shank Diameter: 4mm
Cutting Length: 0.7mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.45mm

1-2 days
subject to

availability


subject to

availability

0.5MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £23.31
SKU: HM2BPR025M06KMG555
Diameter: 0.5mm
Radius: 0.25mm
Shank Diameter: 4mm
Cutting Length: 0.7mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.45mm

1-2 days
subject to

availability


subject to

availability

0.5MM 2 FLUTE LONG BALL NOSE 6MM CUT LENGTH

List Price: £23.31
SKU: HM2BPR03M04KMG555
Diameter: 0.6mm
Radius: 0.3mm
Shank Diameter: 4mm
Cutting Length: 0.9mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.55mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.3; Z=2; Shaft HA; coated

List Price: £23.31
SKU: HM2BPR03M06KMG555
Diameter: 0.6mm
Radius: 0.3mm
Shank Diameter: 4mm
Cutting Length: 0.9mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.55mm

1-2 days
subject to

availability


subject to

availability

0.6MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £23.31
SKU: HM2BPR03M08KMG555
Diameter: 0.6mm
Radius: 0.3mm
Shank Diameter: 4mm
Cutting Length: 0.9mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.55mm

1-2 days
subject to

availability


subject to

availability

0.6MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £23.31
SKU: HM2BPR04M04KMG555
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

0.8MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £23.31
SKU: HM2BPR04M06KMG555
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

0.8MM 2 FLUTE BALL NOSE RIB PROCESSIGN SLOT DRILL

List Price: £23.31
SKU: HM2BPR04M08KMG555
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.4; Z=2; Shaft HA; coated

List Price: £23.31
SKU: HM2BPR04M10KMG555
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

0.8MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £23.31
SKU: HM2BPR05M04KMG555
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

1MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £22.36
SKU: HM2BPR05M06KMG555
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

1MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £22.36
SKU: HM2BPR05M08KMG555
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

1MM 2 FLUTE BALL NOSE LONG NEXK 8MM CUT LENGTH

List Price: £22.36
SKU: HM2BPR05M10KMG555
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

1MM BALL NOSE 2 FLUTE RIB PROCESSING SLOT DRILL

List Price: £22.36
SKU: HM2BPR05M12KMG555
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

1MM 2 FLUTE BALL NOSE LONG NECK 12MM CUT LENGTH

List Price: £22.36
SKU: HM2BPR06M06KMG555
Diameter: 1.2mm
Radius: 0.6mm
Shank Diameter: 4mm
Cutting Length: 1.8mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.15mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.6; Z=2; Shaft HA; coated

List Price: £22.36
SKU: HM2BPR06M08KMG555
Diameter: 1.2mm
Radius: 0.6mm
Shank Diameter: 4mm
Cutting Length: 1.8mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.15mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.6; Z=2; Shaft HA; coated

List Price: £22.36
SKU: HM2BPR06M12KMG555
Diameter: 1.2mm
Radius: 0.6mm
Shank Diameter: 4mm
Cutting Length: 1.8mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 1.15mm

1-2 days
subject to

availability


subject to

availability

1.2MM 2 FLUTE BALL NOSE LONG NECK 12MM CUT LENGTH

List Price: £22.36
SKU: HM2BPR06M16KMG555
Diameter: 1.2mm
Radius: 0.6mm
Shank Diameter: 4mm
Cutting Length: 1.8mm
Length Below Shank: 16mm
Overall Length: 50mm
Neck Dia: 1.15mm

1-2 days
subject to

availability


subject to

availability

1.2MM 2 FLUTE BALL NOSE LONG NECK 16MM CUT LENGTH

List Price: £22.36
SKU: HM2BPR075M08KMG555
Diameter: 1.5mm
Radius: 0.75mm
Shank Diameter: 4mm
Cutting Length: 2.3mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability


subject to

availability

1.5MM BALL NOSE RIB PROCESSING

List Price: £22.36
SKU: HM2BPR075M12KMG555
Diameter: 1.5mm
Radius: 0.75mm
Shank Diameter: 4mm
Cutting Length: 2.3mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability


subject to

availability

1.5MM BALL NOSE RIB PROCESSING CUTTER

List Price: £22.36
SKU: HM2BPR075M16KMG555
Diameter: 1.5mm
Radius: 0.75mm
Shank Diameter: 4mm
Cutting Length: 2.3mm
Length Below Shank: 16mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability


subject to

availability

1.5MM 2 FLUTE BALL NOSE LONG NECK 16MM

List Price: £22.36
SKU: HM2BPR10M06KMG555
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRLL

List Price: £21.31
SKU: HM2BPR10M08KMG555
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £21.31
SKU: HM2BPR10M10KMG555
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £21.31
SKU: HM2BPR10M12KMG555
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2MM 2 FLUTE BALL NOSE LONG NECK 12MM CUT LENGTH

List Price: £21.31
SKU: HM2BPR10M16KMG555
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 16mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2MM 2 FLUTE BALL NOSE LONG NECK 16MM CUT LENGTH

List Price: £21.31
SKU: HM2BPR10M20KMG555
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 20mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2MM 2 FLUTE BALL NOSE LONG NECK 20MM CUT LENGTH

List Price: £21.31
SKU: HM2BPR125M08KMG555
Diameter: 2.5mm
Radius: 1.25mm
Shank Diameter: 4mm
Cutting Length: 3.7mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 2.4mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.25; Z=2; Shaft HA; coated

List Price: £21.31
SKU: HM2BPR125M12KMG555
Diameter: 2.5mm
Radius: 1.25mm
Shank Diameter: 4mm
Cutting Length: 3.7mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 2.4mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.25; Z=2; Shaft HA; coated

List Price: £21.31
SKU: HM2BPR125M16KMG555
Diameter: 2.5mm
Radius: 1.25mm
Shank Diameter: 4mm
Cutting Length: 3.7mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 2.4mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.25; Z=2; Shaft HA; coated

List Price: £21.31
SKU: HM2BPR125M20KMG555
Diameter: 2.5mm
Radius: 1.25mm
Shank Diameter: 4mm
Cutting Length: 3.7mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 2.4mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.25; Z=2; Shaft HA; coated

List Price: £21.31
SKU: HM2BPR15M08KMG555
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.5; Z=2; Shaft HA; coated

List Price: £25.03
SKU: HM2BPR15M10KMG555
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

3MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £25.03
SKU: HM2BPR15M12KMG555
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

3MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £25.03
SKU: HM2BPR15M16KMG555
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

3MM 2FLUTE BALL NOSE LONG NECK 16MM

List Price: £28.18
SKU: HM2BPR15M20KMG555
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

3MM 2 FLUTE BALL NOSE LONG NECK 20MM CUT LENGTH

List Price: £28.18
SKU: HM2BPR20M10KMG555
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 10mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

4MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £28.18
SKU: HM2BPR20M16KMG555
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

4MM BALL NOSE HM SERIES COATED CARBIDE SLOT DRILL

List Price: £28.18
SKU: HM2BPR20M20KMG555
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

4MM BALL NOSE HM SERIES COATED CARBIDE SLOT DRILL

List Price: £28.18
SKU: HM2BPR20M25KMG555
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

4MM 2 FLUTE BALL NOSE RIB PROCESSING SLOT DRILL

List Price: £28.18
SKU: HM2BPR25M16KMG555
Diameter: 5mm
Radius: 2.5mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 4.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=2.5; Z=2; Shaft HA; coated

List Price: £28.18
SKU: HM2BPR25M25KMG555
Diameter: 5mm
Radius: 2.5mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 25mm
Overall Length: 70mm
Neck Dia: 4.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=2.5; Z=2; Shaft HA; coated

List Price: £31.92
